What Is Silicone Self Fusing Tape? Features, Applications & Benefits

When electrical connections or cable joints are exposed to moisture, dust, UV radiation, or harsh outdoor conditions, ordinary electrical tape may not provide long-term protection. Over time, adhesive-backed tapes can lose their bonding strength, leave sticky residue, or allow water to penetrate the connection.

This is where Silicone Self Fusing Tape offers a more reliable solution.

Unlike traditional PVC electrical tape, silicone self fusing tape contains no adhesive. Instead, it bonds to itself after being stretched and wrapped, creating a seamless layer that helps protect electrical connections from water, dirt, corrosion, and environmental exposure.

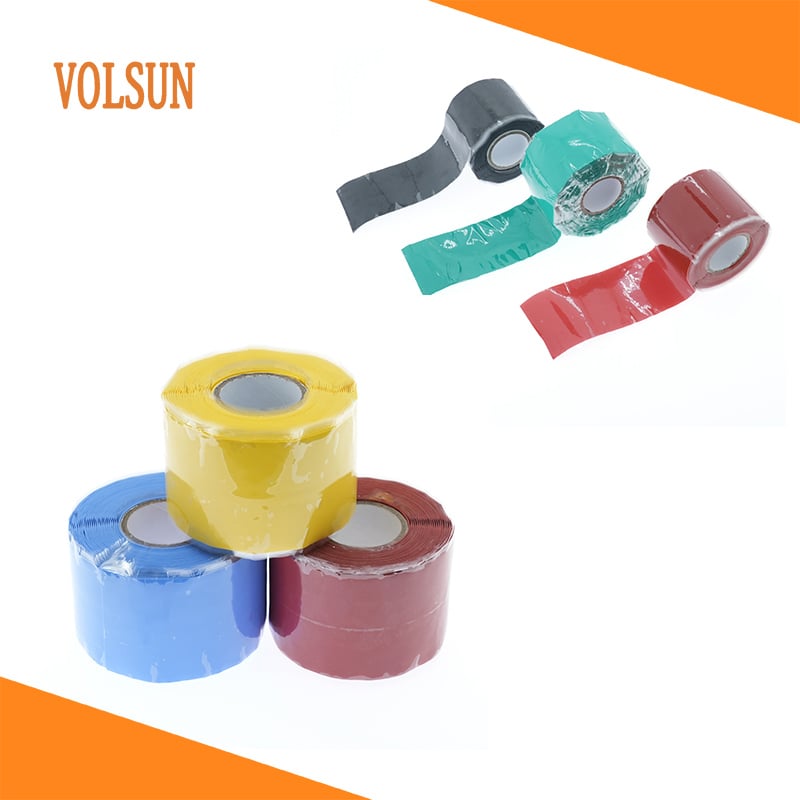

What Is Silicone Self Fusing Tape?

Silicone Self Fusing Tape, also known as Self Amalgamating Tape or Self Bonding Silicone Tape, is a high-performance silicone rubber insulation tape designed for electrical insulation, waterproof sealing, cable protection, and emergency repairs.

The tape is non-sticky to the touch before installation. Once the release liner is removed, the tape is stretched and wrapped with approximately 50% overlap. Within a short period, the layers begin to fuse together, forming a durable and continuous silicone sleeve without the need for adhesives or heat.

Because it only bonds to itself, the tape can be removed without leaving adhesive residue on cables, connectors, or equipment.

Key Features

Silicone self fusing tape combines insulation, sealing, and environmental protection in one product. Key advantages include:

· Self-fusing design without adhesive

· Waterproof and airtight sealing

· Excellent electrical insulation performance

· UV, ozone, and weather resistance

· Resistance to water, oil, acids, and many common chemicals

· Flexible enough to wrap irregular shapes and cable joints

· Suitable for both indoor and outdoor applications

For applications that require additional fire safety, Volsun also offers a Flame Retardant Self Fusing Tape that meets UL94 V-0 flame retardancy requirements.

Typical Applications

Because of its versatility, silicone self fusing tape is widely used across many industries.

Typical applications include:

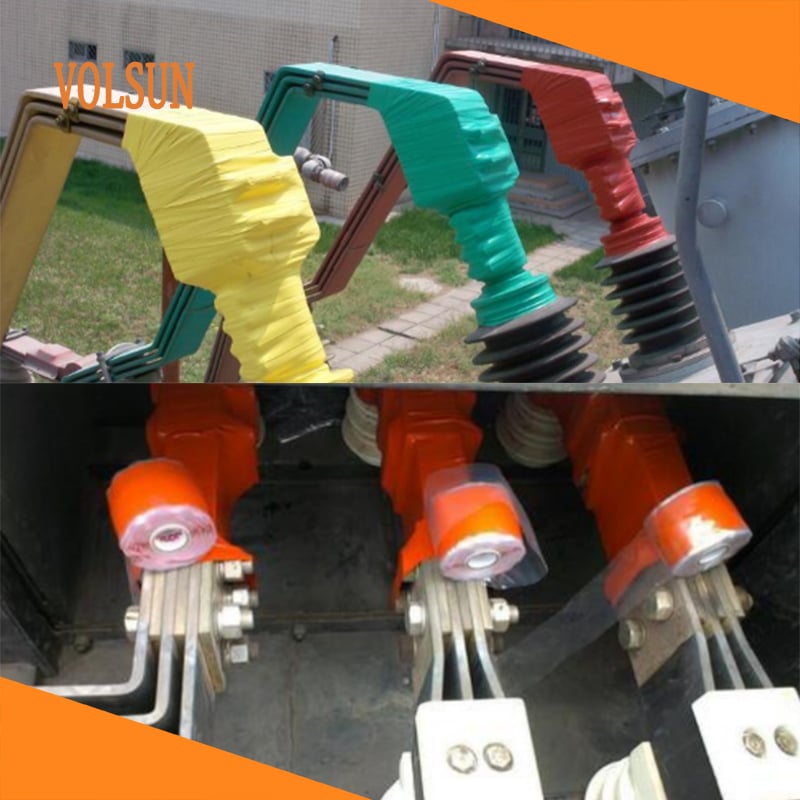

· Electrical cable joints

· Power cable terminations

· Communication cable connectors

· Outdoor electrical equipment

· Industrial machinery wiring

· Wire harness protection

· Hose and pipe sealing

Its ability to create a waterproof seal without adhesive makes it particularly suitable for outdoor electrical installations where long-term reliability is important.

Flame Retardant vs. Non-Flame Retardant Tape

Volsun provides two versions to meet different application requirements.

The Flame Retardant Self Fusing Tape (FST6030SI) is designed for applications requiring enhanced fire safety. It features UL94 V-0 flame retardancy and an operating temperature range of -60°C to +180°C.

The Non-Flame Retardant Self Fusing Tape (FST6031SI) offers higher tensile strength and elongation, making it an excellent choice for general insulation and sealing applications where flame retardancy is not required.

Both versions provide excellent self-fusing performance, electrical insulation, waterproof sealing, and resistance to outdoor environmental conditions.

Why Choose Volsun Silicone Self Fusing Tape?

With nearly two decades of experience in silicone rubber insulation materials, Volsun focuses on developing reliable products for electrical insulation, sealing, and cable protection.

Standard products are available in multiple widths and thicknesses, while customized colors, dimensions, and packaging can also be supplied according to project requirements.

Whether you need cable insulation for industrial equipment, waterproof sealing for outdoor installations, or a flame-retardant solution for demanding electrical applications, silicone self fusing tape provides a practical and durable option.
