Shaft Grounding Rings Help Your Motors Avoid Shaft Current Corrosion!
In the high-speed industrial world, every rotating machine is the heart of the production line. However, an invisible killer is quietly eroding the lifespan of these devices—shaft current corrosion. Have you ever experienced frequent bearing failures in your motor or generator, coupled with high maintenance costs? The cause may lie with the seemingly insignificant yet crucial shaft grounding ring.
What is a shaft grounding ring?

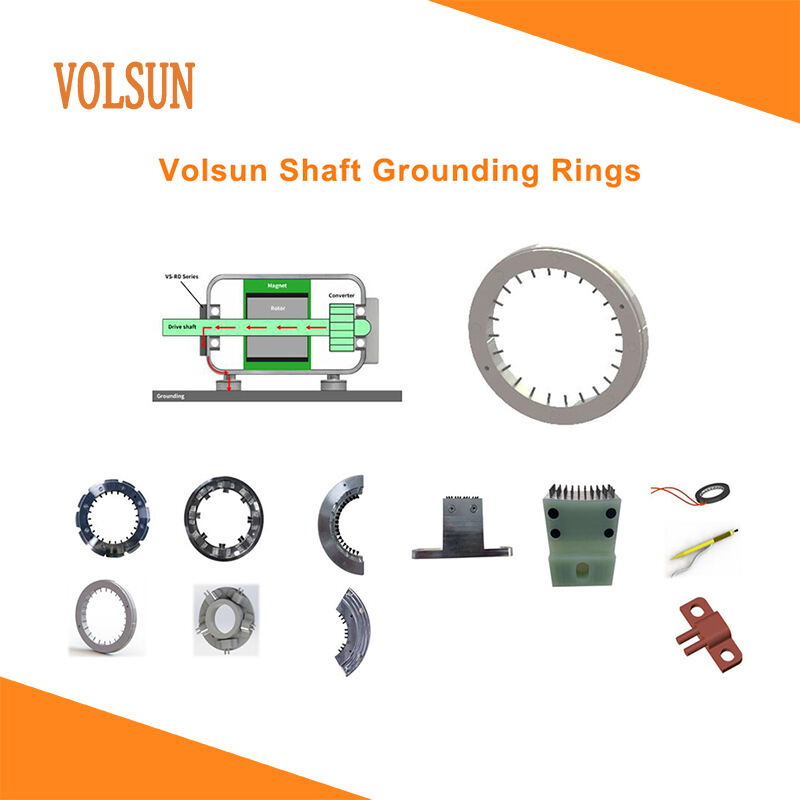

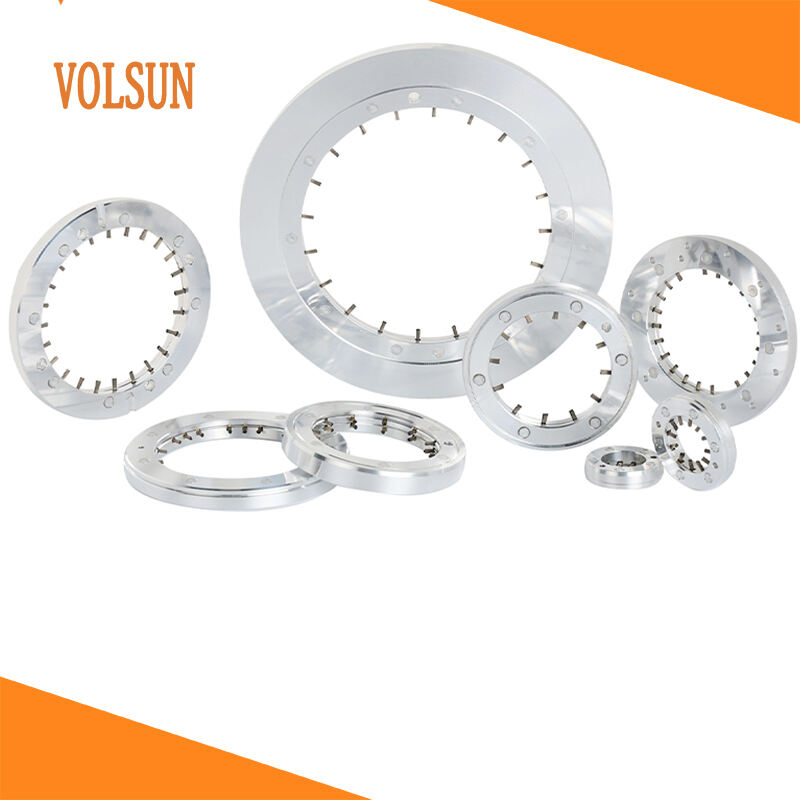

A shaft grounding ring, also known as a shaft grounding device or grounding system, is a device specifically designed to provide a reliable grounding path for rotating shafts. Typically made of high-performance conductive materials, it maintains good contact with the rotating shaft surface, creating a low-resistance current discharge path.
What problems do shaft grounding rings solve?
In modern industry, the widespread use of variable frequency drives (VFDs), magnetic field asymmetry, or static electricity buildup can induce voltage on the rotating shafts of equipment like motors and generators. When this voltage builds to a high enough level, it can break through the bearing oil film, generating circulating shaft currents or EDM (electrical discharge machining) discharges.
This type of electrical discharge can be destructive:
● It creates corrosion pits ("electrolytic corrosion" or "pitting") on bearing raceways and rolling elements, causing vibration and noise.
● It accelerates grease deterioration and weakens oil film strength.
● Ultimately, it leads to premature bearing failure, unplanned downtime, significant production losses, and expensive repair costs.
Therefore, the core mission of shaft grounding rings is to provide a low-impedance discharge path for shaft current before it becomes destructive, diverting the harmful current to ground, thereby insulating the bearing from electrical damage.
What are the main uses of shaft grounding rings?
Installing a reliable shaft grounding ring system provides more than just a replacement part; it provides strategic asset protection:
● Eliminating electrolytic corrosion and extending bearing life: Completely eliminates bearing damage caused by shaft current, restoring bearing life to design levels.
● Securing operations and reducing risk: Significantly reduces unplanned downtime caused by sudden bearing failure, ensuring production continuity.
● Saving costs and improving profitability: Minimizing high bearing replacement costs and downtime losses, resulting in an extremely high return on investment.
What are the key applications of shaft grounding rings?
Shaft grounding rings are essential protective devices for all rotating machinery using variable frequency drives or prone to shaft voltage. They are widely used in the following applications:
● Industrial motor: Medium and large motors, generators, high-speed pumps, fans, and compressors with variable frequency drives
● Energy motor: Wind turbines (especially doubly-fed asynchronous generators), steam turbines, and gas turbines
● Transportation: Electric locomotive traction motors and marine propulsion motors
● High-end Manufacturing: CNC machine tool spindles, papermaking machinery, and rolling mill motors
Whether in new construction or retrofit projects, installing a shaft grounding ring is the most economical and effective solution for protecting critical power equipment.
