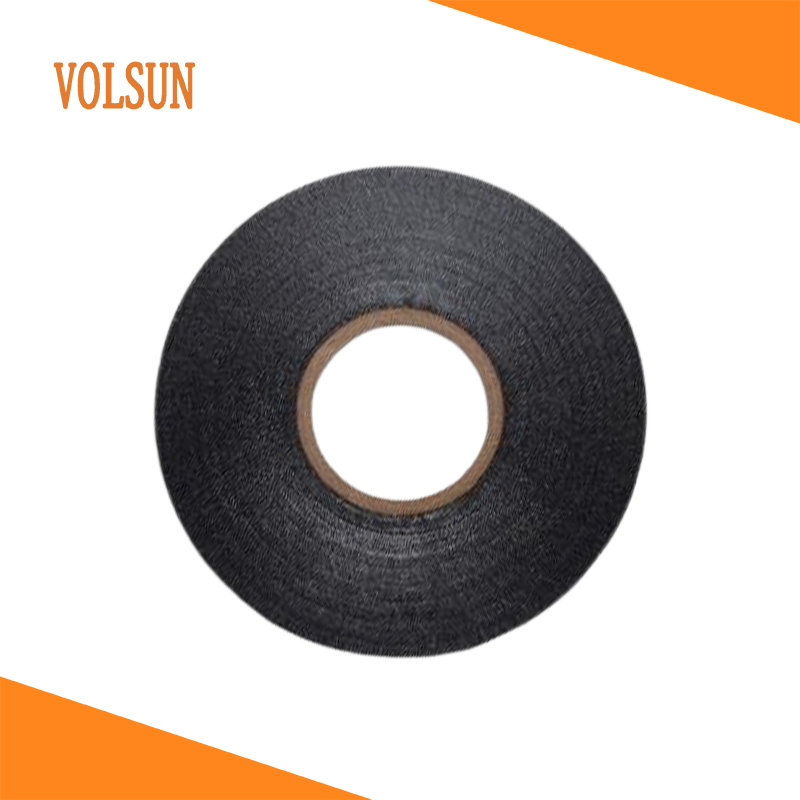

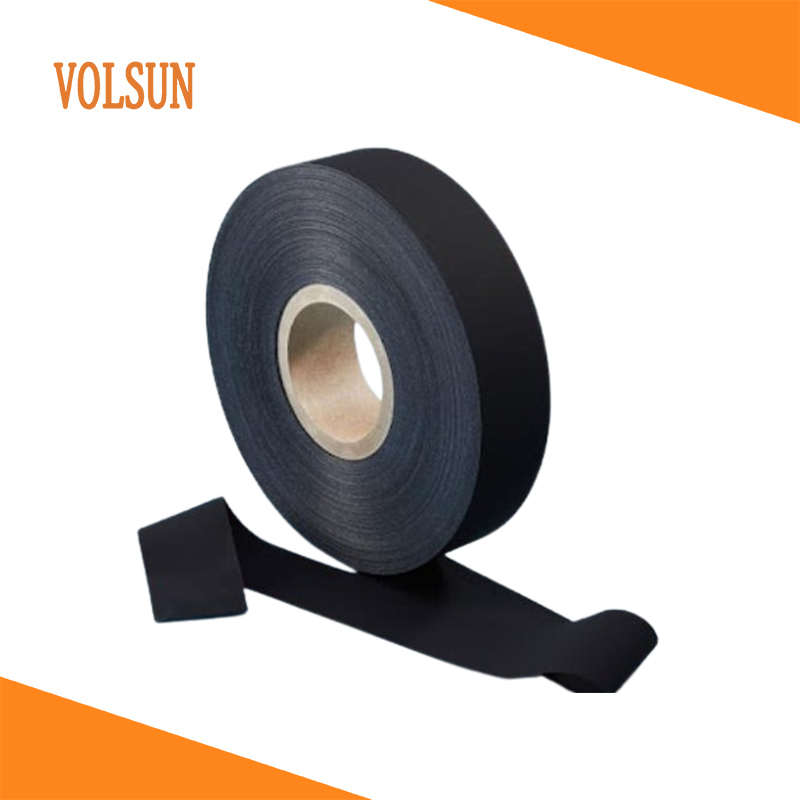

Volsun VS-BD-TP20 Electrical Semi-Conductive Tape For Cable Shielding

1. The VS-BD-TP20 semi-conducting self-adhesive tape features a tape-like design that requires no complex tools. Application is easy by simply removing the separator and stretching it approximately 200%. It has excellent conformability to irregular surfaces and can perfectly conform to the curvature of various cable joints, streamlining the installation process and improving efficiency.

2. The VS-BD-TP20 electrical semi-conducting tape offers stable conductivity, maintaining excellent conductivity even during stretching. It also offers excellent resistance to solvents, UV rays, and moisture, making it suitable for use in a variety of indoor and outdoor environments, maintaining stable performance even under overload temperatures. Furthermore, it exhibits excellent compatibility with a wide range of cables and conductors, making it suitable for a variety of cable shielding structures.

3. The VS-BD-TP20 semi-conductive tape has a shelf life of up to 30 months in a cool, dry environment. Its self-adhesion remained intact after a 24-hour test and exhibited no stress cracking after a 130°C high-temperature test for one hour. It provides continuous protection for cables during long-term, stable operation, effectively extending their service life and ensuring safe and reliable operation of power systems.

4. The VS-BD-TP20 semi-conductive tape has dimensions of 5000 ± 100 mm in length, 25 ± 1.0 mm in width, and 0.8 ± 0.1 mm in thickness, making it compatible with conventional cables. Volsun also offers custom fabrication services to meet specific size requirements. Its tensile strength of ≥ 1.3 MPa ensures resistance to breakage during application, safeguarding the integrity of the shielding layer. Elongation at break ≥500%, high ductility adapts to various wrapping curvatures, ensuring a tight, non-detaching fit. Volume resistivity ≤1×10³Ω·cm, stable semi-conductive properties effectively eliminate the potential for electric field concentration on cable surfaces.

5. The VS-BD-TP20 semi-conductive self-fusing tape is widely used in power cable terminations, intermediate joints, and special shielding structures. It effectively eliminates electric field distortion at cable terminations, ensuring insulation safety; repairs and creates shielding layers for intermediate joints, extending joint service life; and can handle shielding of irregular cable components, simplifying shielding installation for special-shaped structures.
