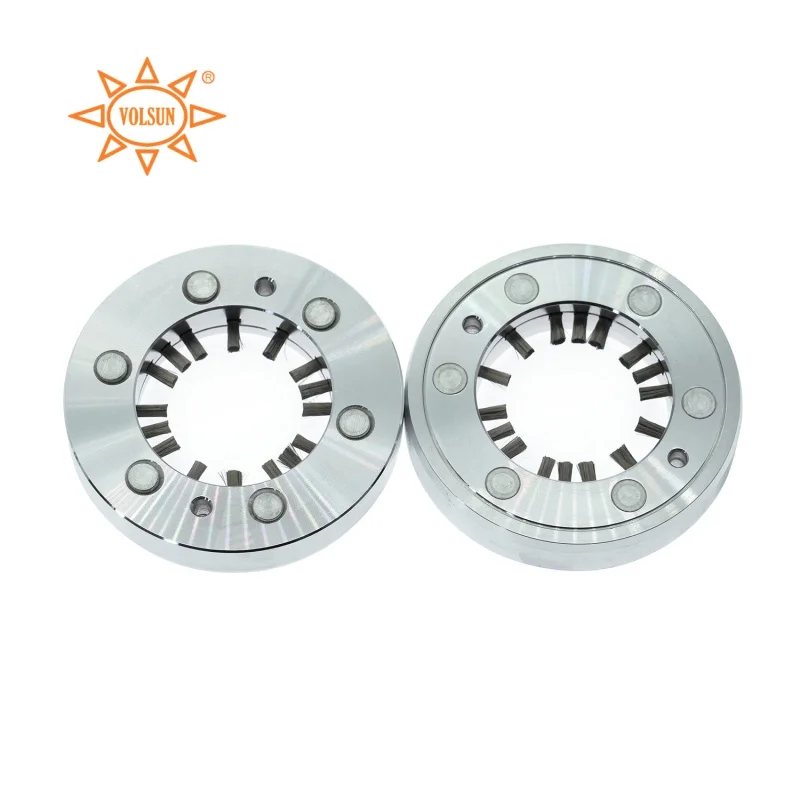

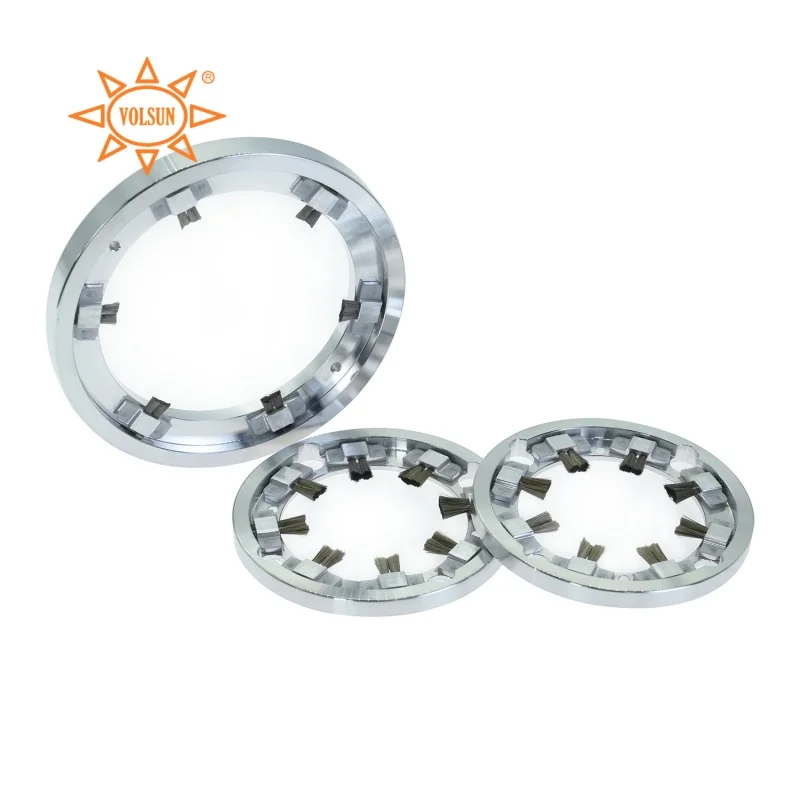

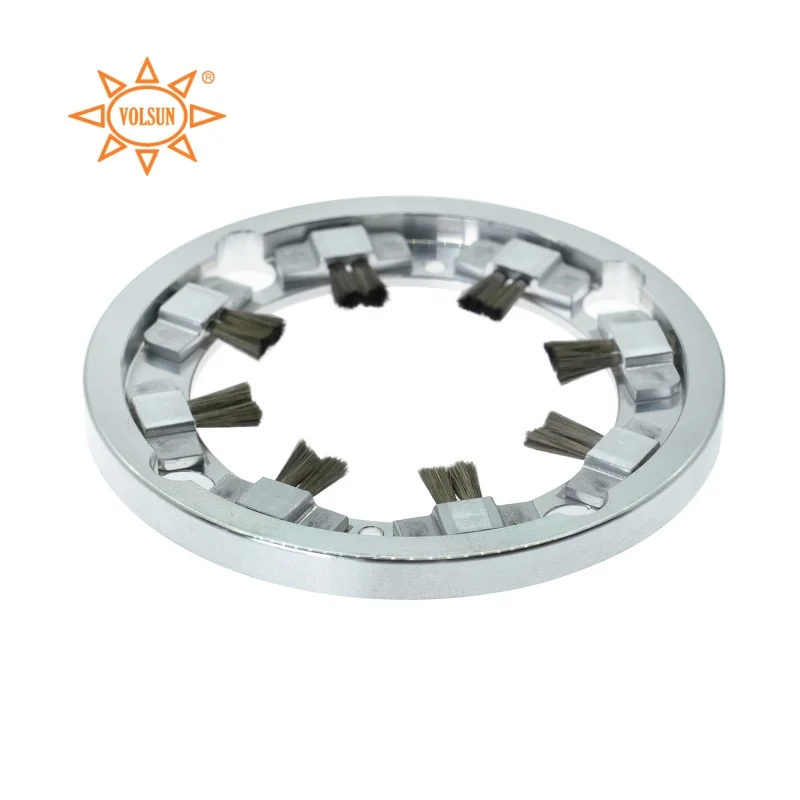

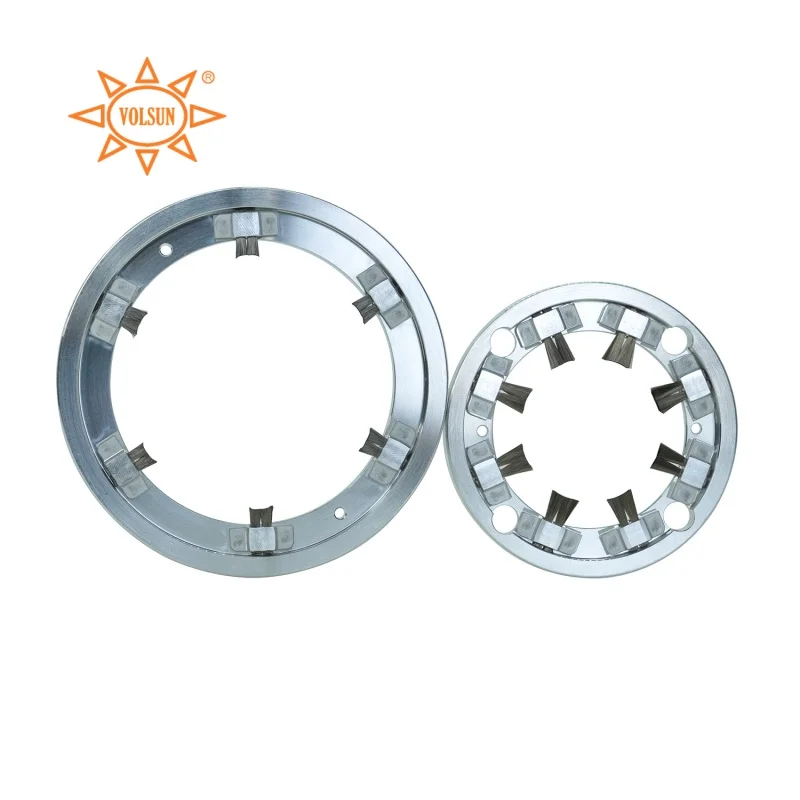

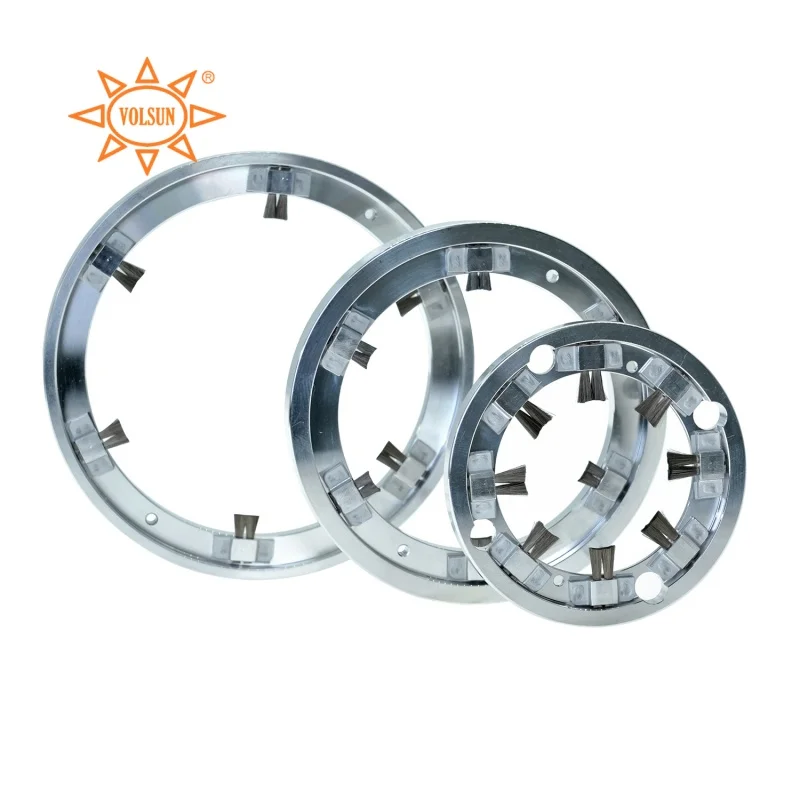

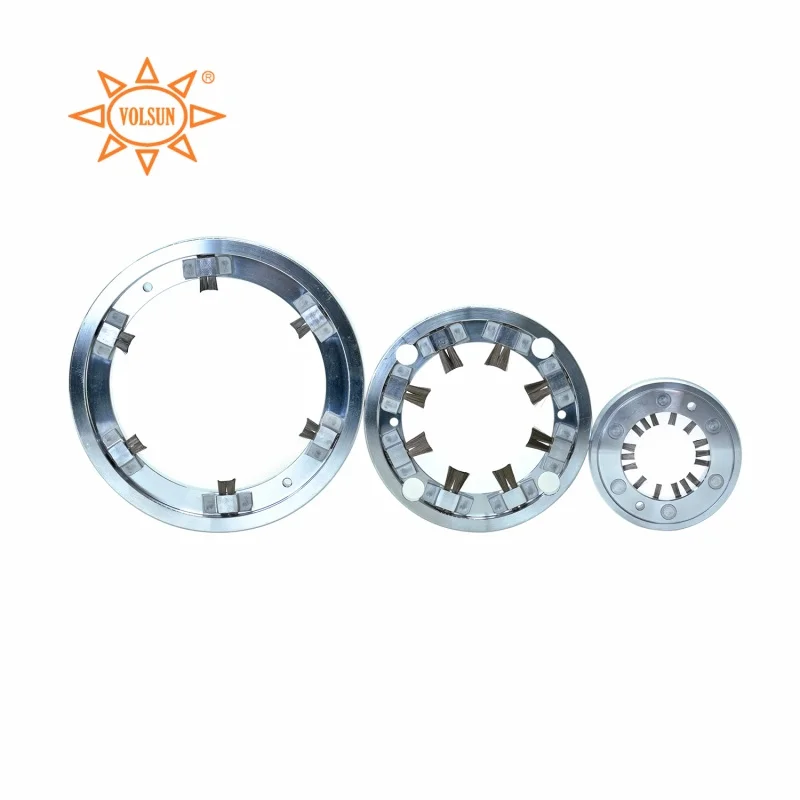

Volsun Third Generation Shaft Grounding Ring Protecting Electric Motor Bearings in Industrial and Chemical Applications

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives - VFDs

Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings.
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds - up to 20,000 RPM

Economic and Operational Benefits

Cost Efficiency

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements

Harsh Environment Resilience:

Temperature Range: Operates reliably from -40°C to 210°C

Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing.

Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference- EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection.



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Third Generation Shaft Grounding Ring protecting electric motor bearings in industrial and chemical applications. This advanced shaft grounding ring is engineered to deliver superior motor bearing protection in demanding environments, offering robust industrial grounding solutions and reliable chemical plant shaft earthing. Designed for longevity, efficiency, and ease of installation, the Volsun shaft grounding ring combines proven materials and innovative engineering to reduce operational downtime, prevent bearing damage, and extend the service life of rotating equipment.

Key Features and Design

The Volsun third generation shaft grounding ring centers on a compact, high-performance design optimized for motor bearing protection. Each shaft grounding ring integrates conductive micro-fiber brushes with a low-resistance conductive path that safely diverts shaft currents away from motor bearings. The design delivers consistent shaft grounding ring performance across a wide range of shaft sizes and rotational speeds while minimizing wear on both the shaft and the grounding ring. For plant engineers seeking dependable industrial grounding solutions, the Volsun shaft grounding ring provides stable, repeatable protection against electrical discharge machining (EDM) and stray currents that would otherwise degrade motor bearing surfaces.

Material selection and durability have been a focal point for Volsun. The shaft grounding ring uses corrosion-resistant materials and high-temperature-tolerant components suitable for the harsh conditions typical in chemical plant shaft earthing scenarios. The sturdy housing and secure mounting system keep the shaft grounding ring in precise alignment under heavy vibration, while replaceable brush elements simplify routine maintenance. These materials choices and construction details ensure that the shaft grounding ring remains a cost-effective motor bearing protection investment over the long term.

Applications Across Industries

The Volsun shaft grounding ring excels in industrial grounding solutions across multiple sectors, including power generation, petrochemical plants, wastewater treatment, mining, and manufacturing environments where electric motors run continuously and bearings face electrical stress. In chemical plant shaft earthing applications, corrosive atmospheres, temperature extremes, and the presence of flammable substances demand components that prioritize both safety and reliability; the Volsun shaft grounding ring is engineered specifically for those requirements. Wherever there is risk of shaft current damage — in large pumps, compressors, fans, and mixers — the Volsun motor bearing protection solution provides a vital defense against premature bearing failure.

Operational Benefits and Performance

Shaft currents and bearing damage are a leading cause of unscheduled downtime. Volsun’s shaft grounding ring mitigates these risks by providing a predictable low-impedance path for electrical discharge, thus protecting motor bearing surfaces from pitting and fluting. Implementing a shaft grounding ring from Volsun is a proactive step in a comprehensive motor bearing protection strategy. The device’s efficient current-carrying capability and low torque drag ensure minimal impact on motor efficiency while delivering maximum protection.

For facility maintenance teams focused on cost-effective industrial grounding solutions, the Volsun shaft grounding ring reduces overall lifecycle costs. By preventing recurrent bearing replacements and avoiding collateral damage to shafts and housings, the shaft grounding ring minimizes maintenance labor, spare parts consumption, and production interruptions. In chemical plant shaft Earthing, the reliability of the grounding path is critical; Volsun’s engineered grounding solution offers stable performance under chemical exposure and thermal cycling, lowering the probability of bearing failure in sensitive processes.

Innovation and Technical Advantages

Volsun’s third generation shaft grounding ring incorporates several technical innovations. The contact assembly employs advanced braided conductive fibers that maintain high conductivity even as wear occurs, preserving motor bearing protection without frequent full-unit replacement. The ring’s brush geometry is optimized to reduce particulate generation and to ensure continuous contact across a range of shaft surface finishes. This results in superior shaft grounding ring longevity compared to earlier designs and competitors’ products.

The ring’s modular architecture provides flexible mounting options and simplifies retrofit projects. Engineers can integrate the Volsun shaft grounding ring into existing motor frames or new equipment with minimal modification. This modular approach supports industrial grounding solutions that scale from individual motor protection to plant-wide shaft Earthing strategies. Additionally, the third generation design includes features to ease inspection and service: quick-access replacement brushes and clear indicators for wear status enable predictable maintenance cycles at planned intervals, thereby enhancing uptime.

Compliance, Safety, and Environmental Considerations

Volsun designs its shaft grounding ring to meet relevant safety and performance standards for motor bearing protection and industrial grounding solutions. In chemical plant shaft Earthing contexts, the grounding ring is fabricated and tested to tolerate corrosive atmospheres and meet safety protocols for hazardous locations where applicable. The materials and processes chosen reduce the likelihood of sparking and particulate contamination, supporting safer operations in sensitive environments.

From an environmental perspective, the extended service life and repairable brush elements decrease waste by lowering the frequency of full-unit disposals. By preventing premature bearing destruction, the Volsun shaft grounding ring also reduces the need for energy- and material-intensive bearing replacements, contributing to more sustainable motor lifecycle management.

Installation and Maintenance

Volsun provides detailed installation guidelines for ensuring optimal performance of the shaft grounding ring. Proper installation as part of industrial grounding solutions includes verifying shaft alignment, secure mounting, and correct brush preload to maintain reliable contact without excessive friction. For chemical plant shaft Earthing scenarios, Volsun recommends routine inspections aligned with plant maintenance schedules, with periodic brush checks and cleaning as required to sustain motor bearing protection.

Customers can choose from a range of shaft grounding ring sizes and mounting kits tailored to common motor frames. Volsun also offers technical support for selecting the appropriate configuration for specific motor types and environmental conditions, enabling quick integration into preventive maintenance routines.

Why Choose Volsun

Selecting Volsun for shaft grounding ring solutions means choosing a partner focused on dependable motor bearing protection and comprehensive industrial grounding solutions. The Volsun third generation shaft grounding ring combines advanced materials, practical modularity, and field-driven design improvements to deliver consistent chemical plant shaft Earthing performance and long-lasting motor bearing protection. For operations seeking to reduce downtime, extend bearing life, and strengthen electrical safety practices, the Volsun shaft grounding ring represents a proven and effective choice.
