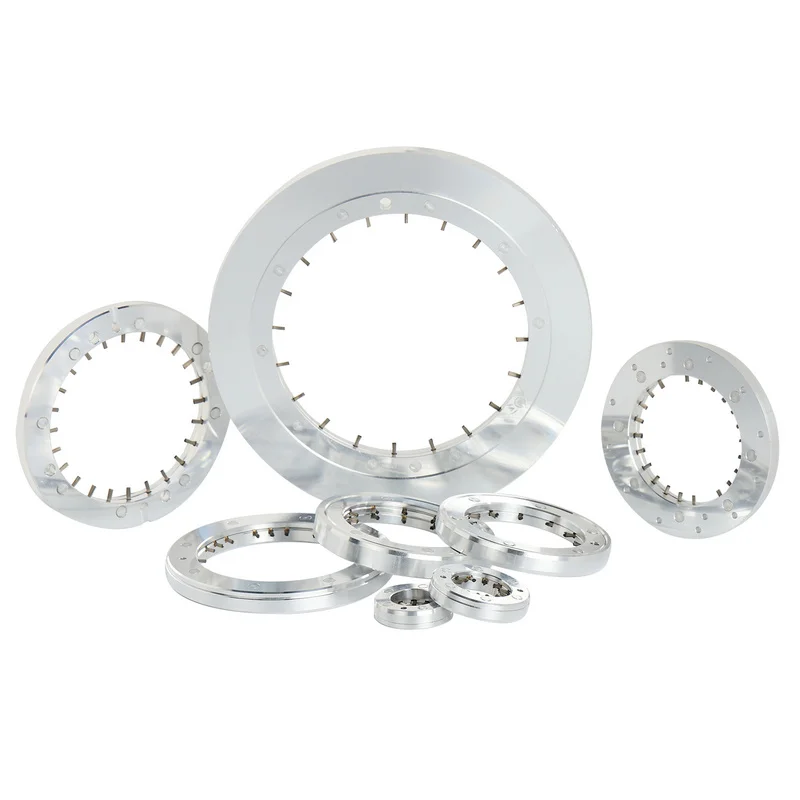

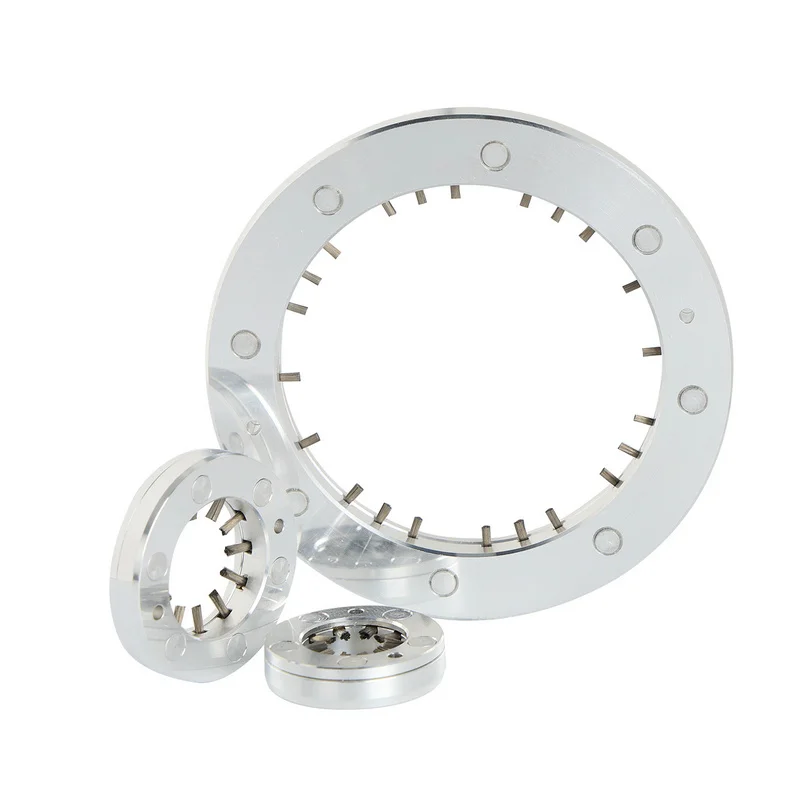

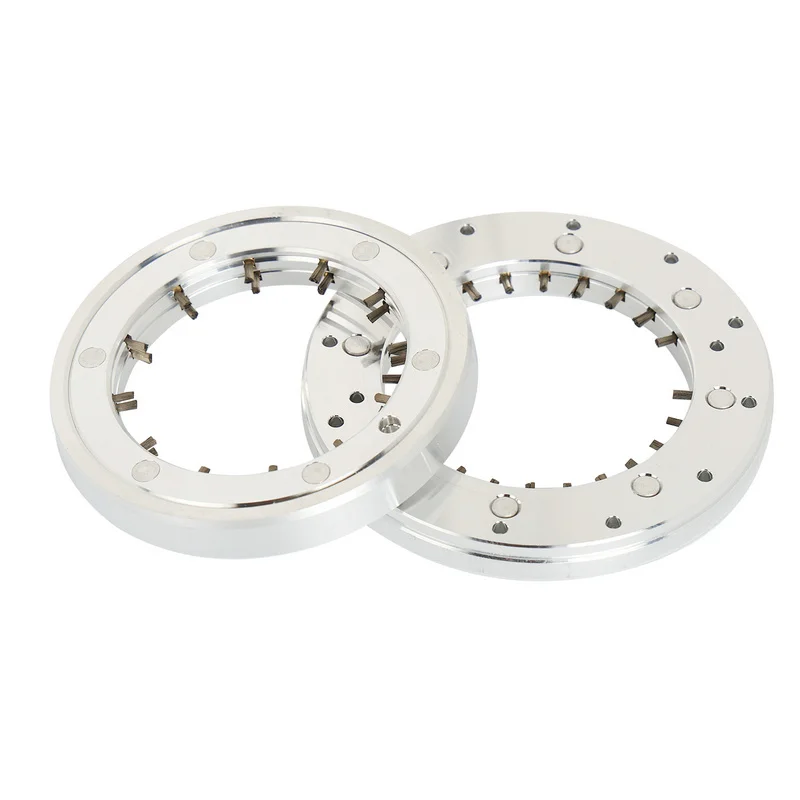

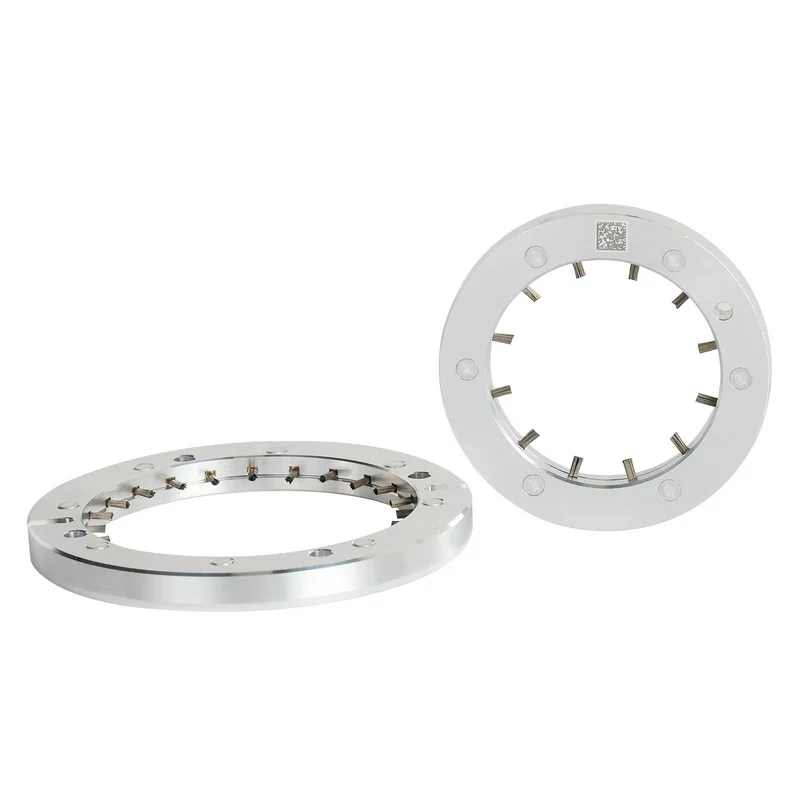

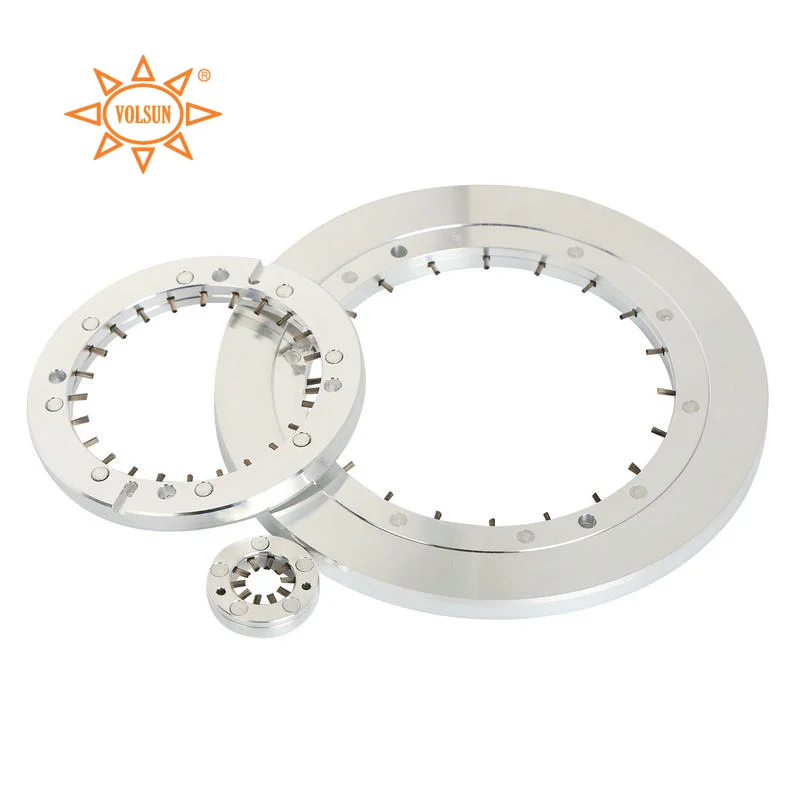

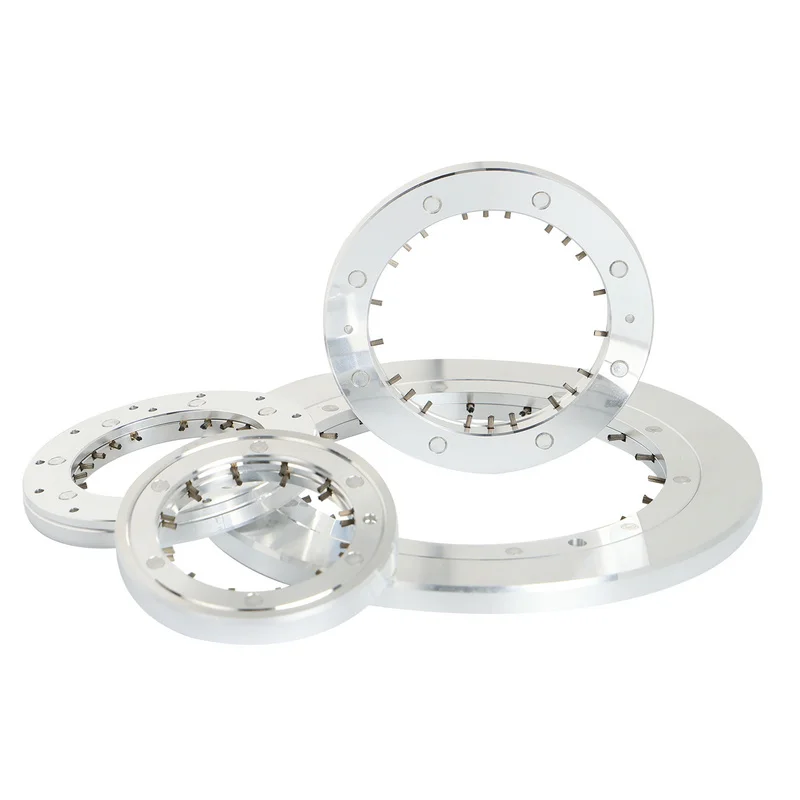

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives - VFDs
Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings.
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds - up to 20,000 RPM
Economic and Operational Benefits
Cost Efficiency
Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements
Harsh Environment Resilience:
Temperature Range: Operates reliably from -40°C to 210°C
Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing.
Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference- EMI
About Us
Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc.
With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings.
Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection
FAQs
How long is the payment term
We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal
What is the normal lead time for product orders
The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks
What is your standard packaging
All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed
Can you tell us the monthly production capacity of your products
It depends on the model, we produce more than 1500 tons of rubber materials per month
What kind of certificates do you have
We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH
How to check the quality of bulk order
We provide pre-production samples to all customers before mass production if needed.
We accept third-party inspection, such as SGS, TUV, INTERT
Can you provide customized service
Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements
Volsun Shaft Voltage Shaft Grounding Ring for Commercial Vehicle Motor
The Volsun Shaft Voltage Shaft Grounding Ring for commercial vehicle motor is a precision-engineered solution designed to address the pervasive issue of rotor shaft electrical discharge and provide robust motor shaft earthing for heavy-duty transport applications. As electrification and power density increase in commercial vehicle drivetrains, shaft voltage mitigation becomes essential to prevent bearing damage, reduce maintenance costs, and extend motor life. Volsun leverages advanced materials, refined manufacturing processes, and targeted design to deliver dependable shaft grounding ring performance optimized for the harsh environments and duty cycles of commercial vehicle motors.
Product Overview and Purpose
The Volsun Shaft Voltage Shaft Grounding Ring is a dedicated device that attaches to the motor shaft assembly to safely divert damaging shaft voltages away from bearings and into a controlled ground path. By facilitating effective motor shaft earthing, the shaft grounding ring neutralizes parasitic currents generated by inverter-driven motors, stray capacitances, and common-mode voltages. This straightforward yet critical component supports overall commercial vehicle motor protection by preventing electrical discharge machining (EDM) pitting, reducing vibration, and maintaining bearing integrity. It is compatible with a broad range of commercial vehicle motor configurations and is designed for easy retrofit or OEM integration.
Key Features
- Reliable shaft grounding ring contact: The Volsun shaft grounding ring features a high-conductivity contact interface engineered to maintain consistent electrical contact with the rotating shaft under varying speeds, loads, and vibration typical of commercial vehicle operation. This ensures persistent shaft voltage mitigation over the component’s service life.
- Durable materials and construction: Constructed from corrosion-resistant alloys and reinforced polymer support structures, the shaft grounding ring resists environmental contaminants, moisture, and high-temperature exposure common in engine compartments and e-axle housings. The material selection optimizes conductivity while maintaining mechanical resilience.
- Low-noise, low-wear contact technology: Volsun employs a low-friction contact medium that minimizes wear on both the grounding ring and the shaft surface. The design reduces frictional losses and acoustic noise while preserving consistent motor shaft earthing performance.
- Compact, modular form factor: The Volsun shaft grounding ring is compact and modular, enabling straightforward installation in space-constrained motor assemblies and easy replacement during maintenance cycles. Multiple mounting options address diverse motor geometries for seamless integration.
- High-current capability and surge resilience: Engineered to handle transient currents and common-mode surges produced by modern power electronics, the shaft grounding ring can absorb and divert significant shaft currents without degradation, contributing to confident commercial vehicle motor protection.
- Low electrical resistance path: Optimized conductive paths within the grounding ring minimize resistance between the shaft and vehicle chassis ground, ensuring effective shaft voltage mitigation and reducing the potential for stray current-induced corrosion.
Technical Advantages and Innovation
Volsun’s shaft grounding ring embodies several technical innovations tailored for commercial vehicle applications. First, the contact interface uses a blend of conductive brush materials and adaptive spring mechanisms to maintain consistent contact pressure across a wide range of operating temperatures and shaft misalignments. This adaptive approach reduces the risk of intermittent contact and maximizes the reliability of motor shaft earthing.
Second, the grounding ring’s conductor topology is optimized via finite element analysis to evenly distribute current and reduce localized heating. This balanced current distribution increases component lifespan and improves performance under heavy-duty cycles inherent to commercial transport. The design also integrates surge handling features that dissipate transient energy safely to chassis ground, offering enhanced shaft voltage mitigation during regenerative braking events or inverter switching transients.
Third, the product’s modular sealing and support components protect the electrical contact from dust, oil, and road debris while allowing ease of service. Volsun’s sealing strategy mitigates contamination without compromising contact quality, enabling maintenance intervals aligned with commercial vehicle service schedules.
Applications and Use Cases
The Volsun Shaft Voltage Shaft Grounding Ring is ideal for a range of commercial vehicle powertrain architectures including electric axles, hybrid drive motors, auxiliary motors, and high-power traction motors. Typical applications include:
- Heavy-duty trucks and buses that employ inverter-driven traction motors requiring robust shaft voltage mitigation to protect critical bearings.
- Light commercial vehicles and delivery vans with electric or hybrid drivetrains where motor shaft earthing improves drivetrain reliability and reduces unscheduled downtime.
- Fleet and transit operators seeking to reduce lifecycle maintenance costs by minimizing bearing replacement and motor overhaul incidents caused by electrical discharge.
- OEMs integrating high-power-density motors where space constraints demand a compact, high-performance grounding solution for commercial vehicle motor protection
In each application, the Volsun shaft grounding ring serves as a preventative device that complements bearing insulation, shielded bearings, and other protective strategies to form a holistic motor protection system.
Performance Benefits
Deployment of the Volsun shaft grounding ring yields measurable benefits for commercial vehicle operators and OEMs:
- Reduced bearing failures: By providing effective shaft voltage mitigation, the grounding ring prevents EDM pitting and premature bearing wear, lowering replacement frequency.
- Lower maintenance costs: Less bearing damage translates to fewer unscheduled maintenance events and reduced total cost of ownership for commercial vehicle fleets.
- Improved reliability and uptime: Consistent motor shaft earthing decreases unexpected motor faults, enhancing vehicle availability and fleet performance.
- Enhanced safety and regulatory compliance: Controlled grounding of shaft voltages helps reduce stray current-related hazards and supports regulatory requirements for electromagnetic compatibility and electrical safety.
- Extended motor life: By minimizing electrical damage to rotating components, the shaft grounding ring contributes to prolonged service life for commercial vehicle motors.
Installation and Maintenance
Volsun designed the shaft grounding ring for simple installation and low maintenance. The modular design allows fitment during initial motor assembly or as an aftermarket retrofit. Installation guidelines include ensuring proper axial placement on the shaft and secure chassis ground connection to guarantee effective shaft voltage mitigation. Routine inspections focus on contact wear indicators and cleaning of protective seals; the low-wear contact materials and sealing reduce inspection frequency compared to traditional solutions.
Compatibility and Integration
The Volsun shaft grounding ring supports a wide range of shaft diameters and motor housings common in commercial vehicle motors. Customization options are available to match OEM-specific mounting interfaces and electrical specifications. Volsun works with integrators to ensure optimal motor shaft earthing strategies, combining grounding rings with bearing insulation or dedicated grounding paths when required.
Quality and Testing
Each Volsun Shaft Voltage Shaft Grounding Ring undergoes rigorous electrical, mechanical, and environmental testing to validate shaft voltage mitigation performance under simulated commercial vehicle conditions. Tests include current-carrying capability, contact resistance monitoring, salt spray and corrosion resistance, vibration endurance, and thermal cycling. These quality controls ensure dependable motor shaft earthing and long-term commercial vehicle motor protection.
The Volsun Shaft Voltage Shaft Grounding Ring for commercial vehicle motor is a targeted, high-performance solution for shaft voltage mitigation and motor shaft earthing. With durable materials, low-wear contact technology, robust surge handling, and a compact modular form, the grounding ring provides essential commercial vehicle motor protection that reduces bearing failure, lowers maintenance costs, and enhances fleet reliability. Whether integrated into new motor designs or retrofitted into existing systems, Volsun’s grounding ring offers a practical, effective means to preserve motor health and ensure consistent shaft voltage mitigation in demanding commercial vehicle environments
