Volsun Sector-shaped Shaft Grounding Ring BEARING PROTECTION for Damage

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives VFDs
Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds up to 20,000 RPM
Economic and Operational BenefitsCost Efficiency

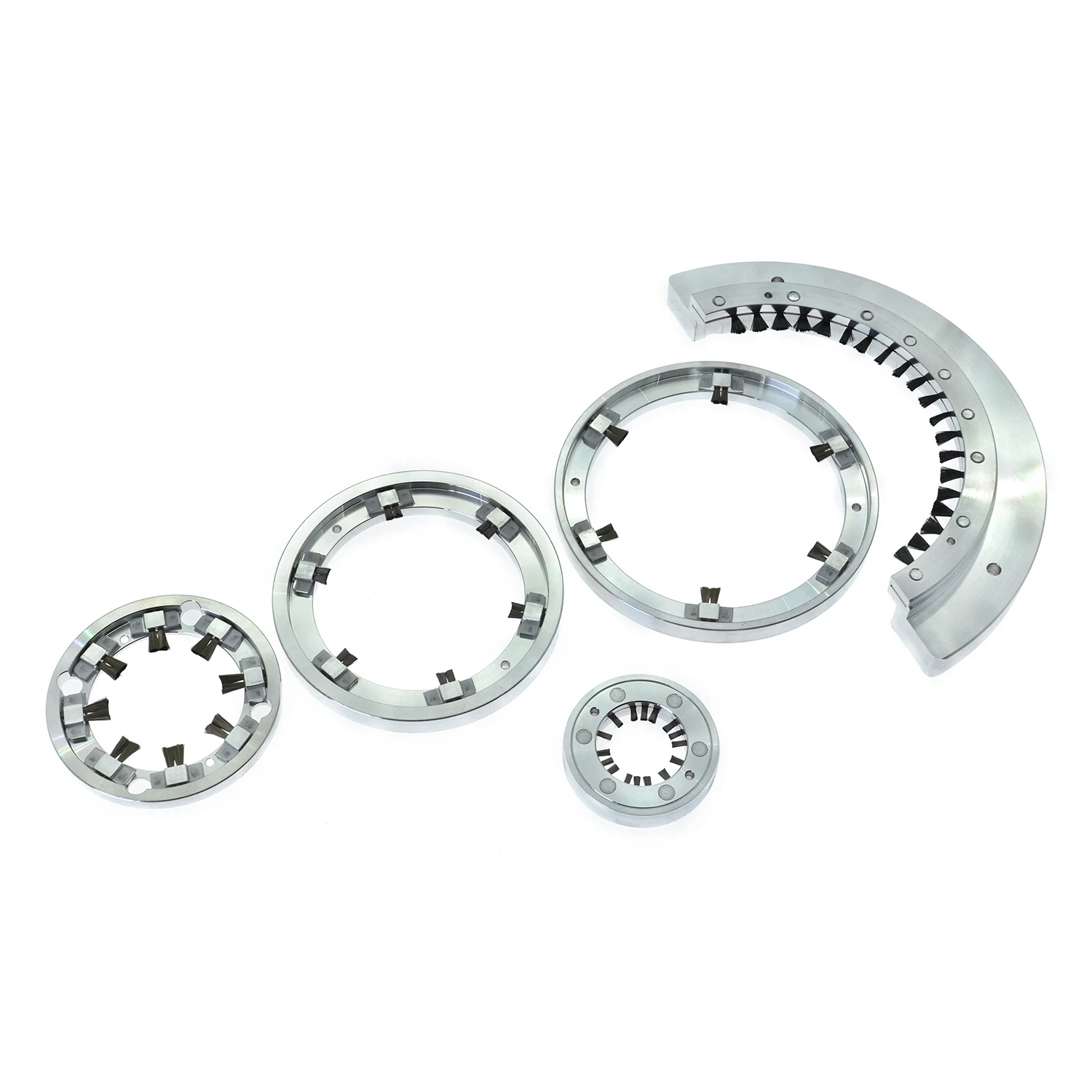

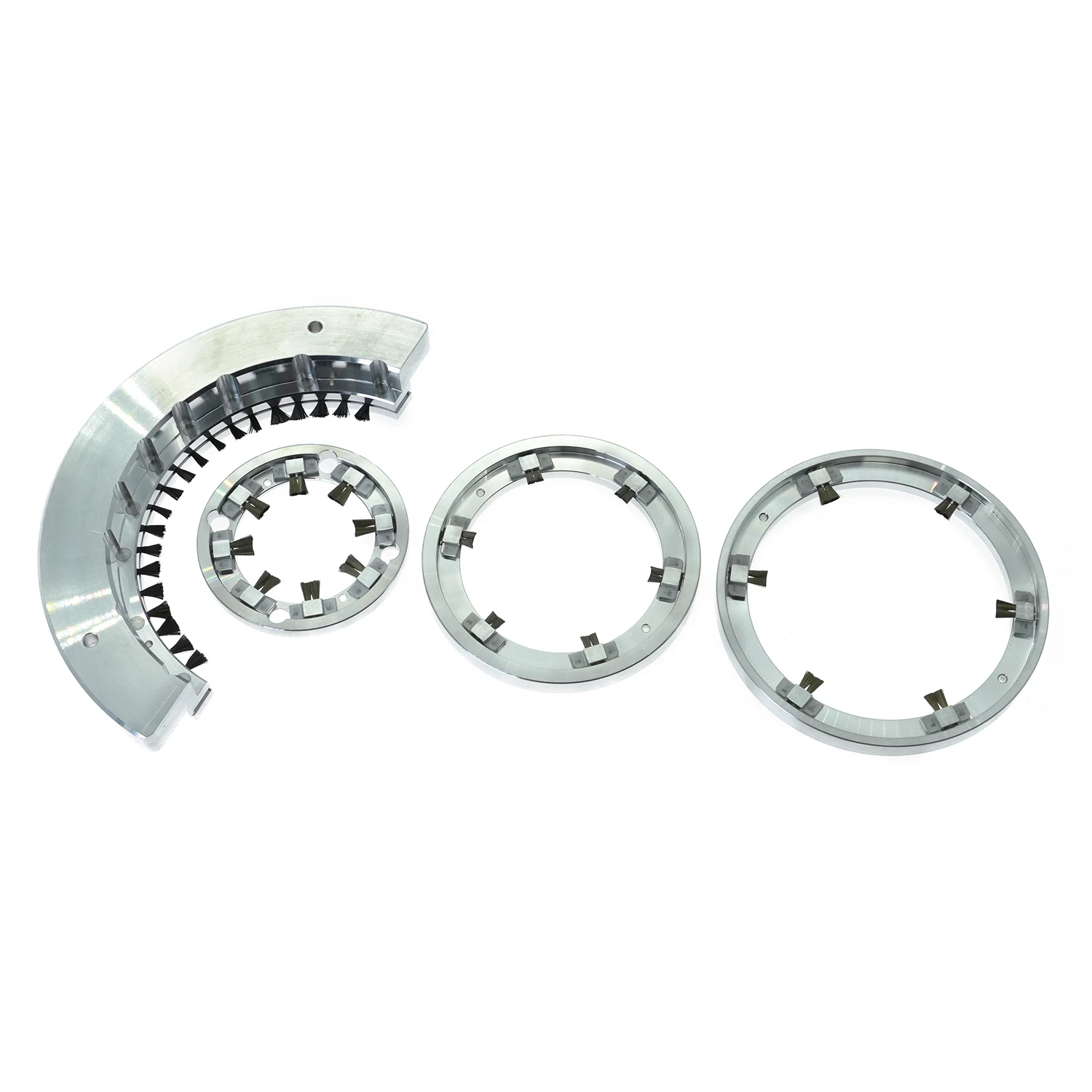

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements, Harsh Environment Resilience: Temperature Range: Operates reliably from -40°C to 210°C. Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing. Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Volsun Sector-shaped Shaft Grounding Ring BEARING PROTECTION for Damage, a precision-engineered solution that redefines protection for rotating equipment. This product is designed to address persistent challenges in industrial machinery where shaft currents and electrical erosion threaten bearing life. The Volsun sector-shaped shaft grounding ring provides an optimized path for stray currents, while the bearing protection ring feature ensures minimal wear and sustained performance. As an electrical grounding bearing solution, it combines advanced materials, clever geometry, and easy installation to deliver reliable bearing protection and reduced maintenance costs

A focused approach to shaft grounding ring performance

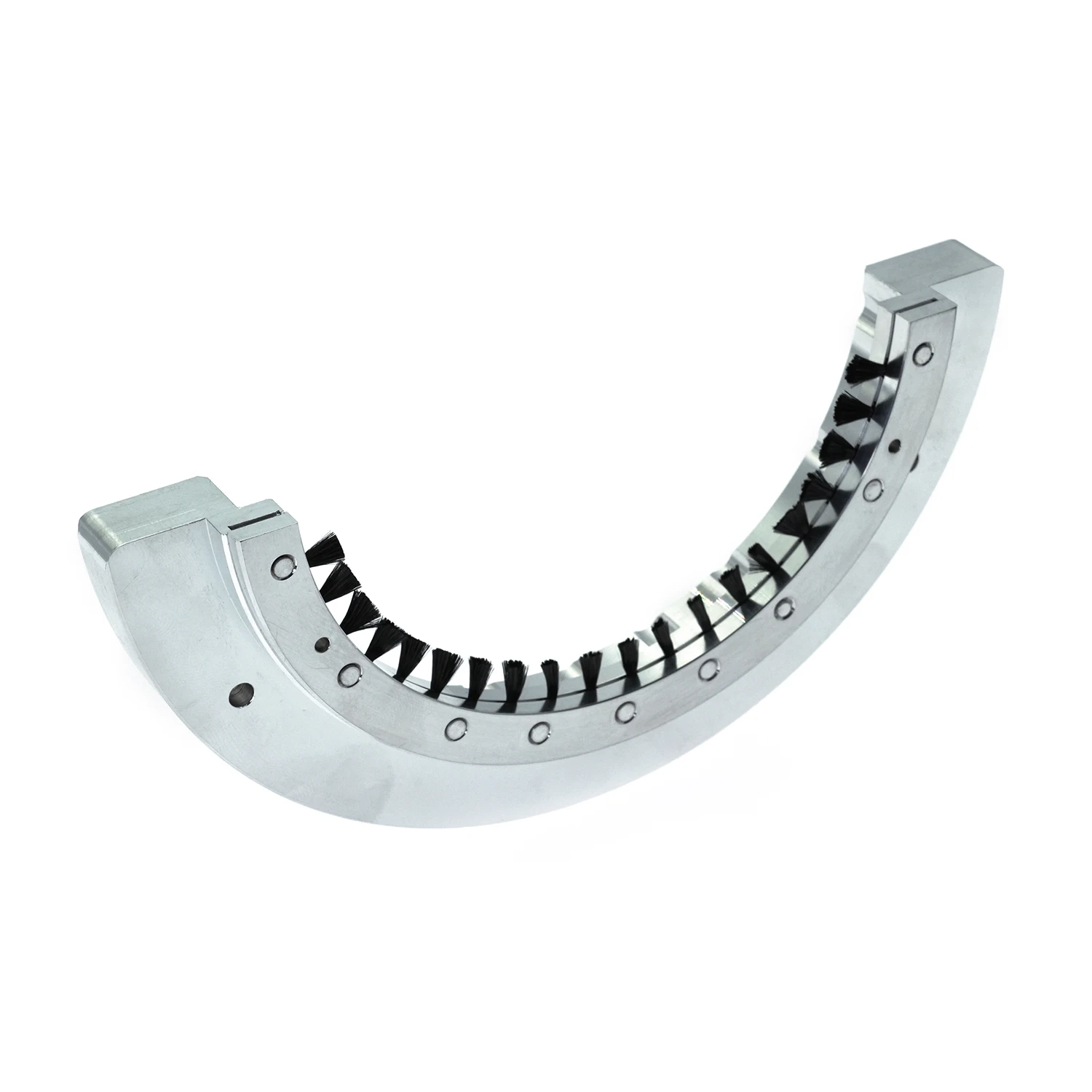

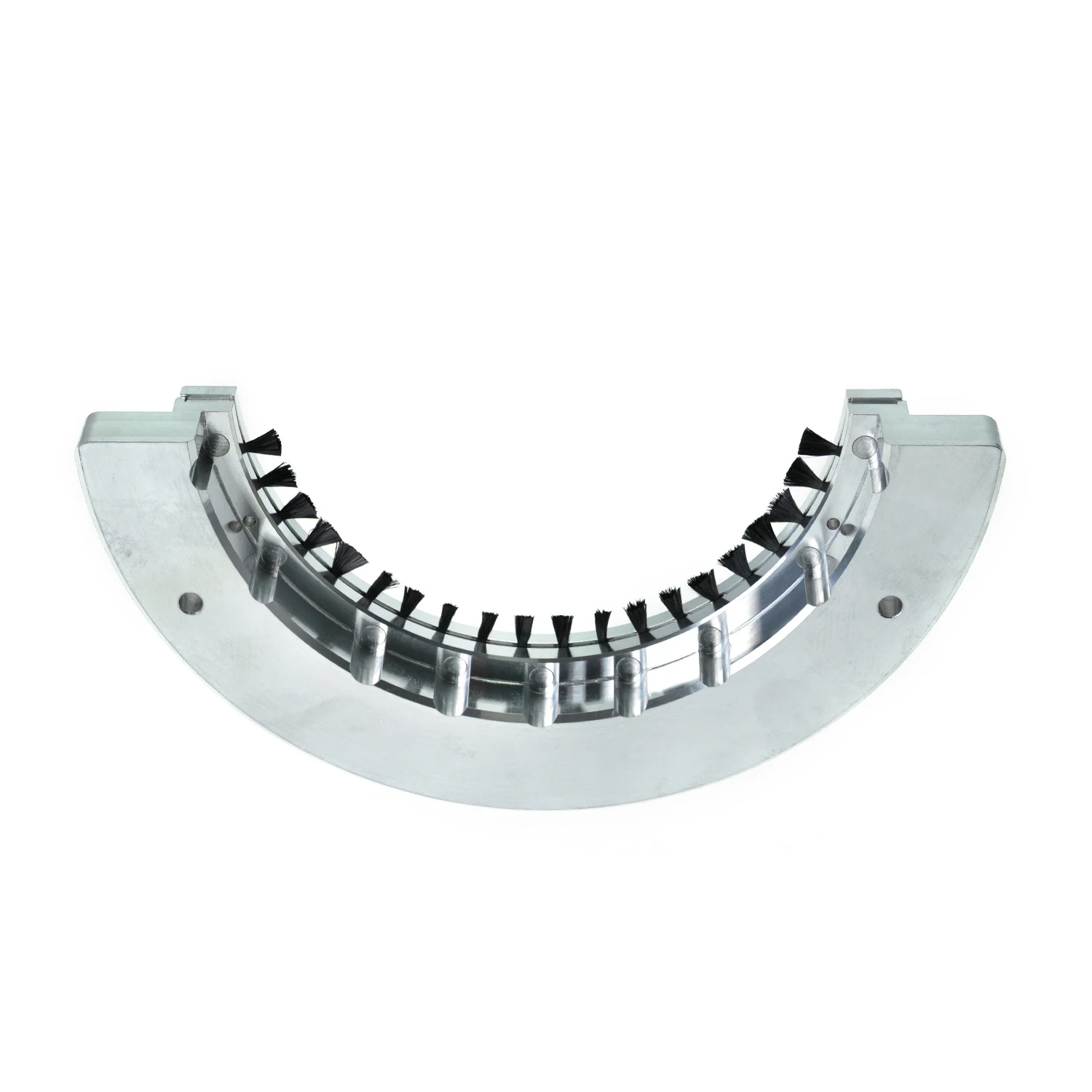

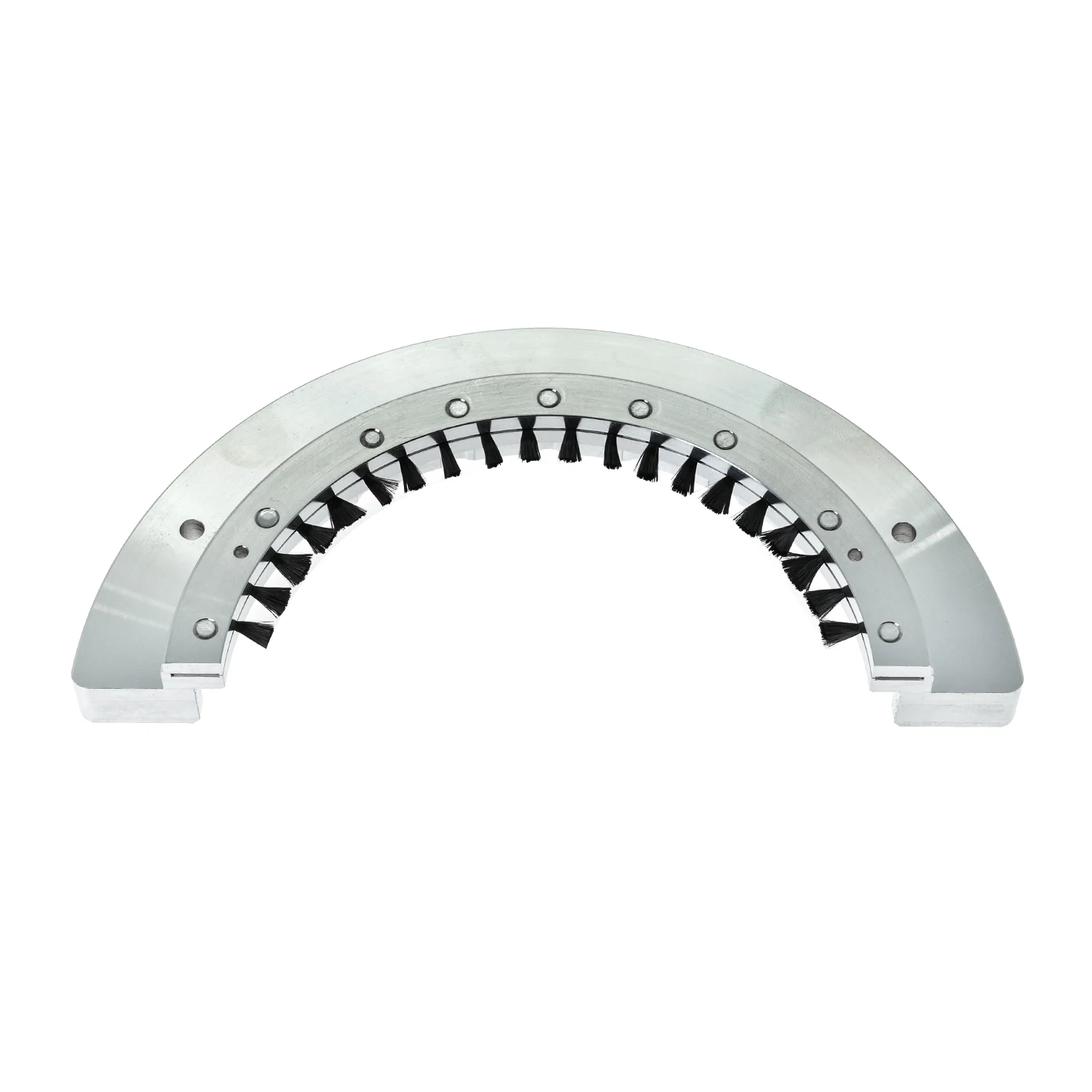

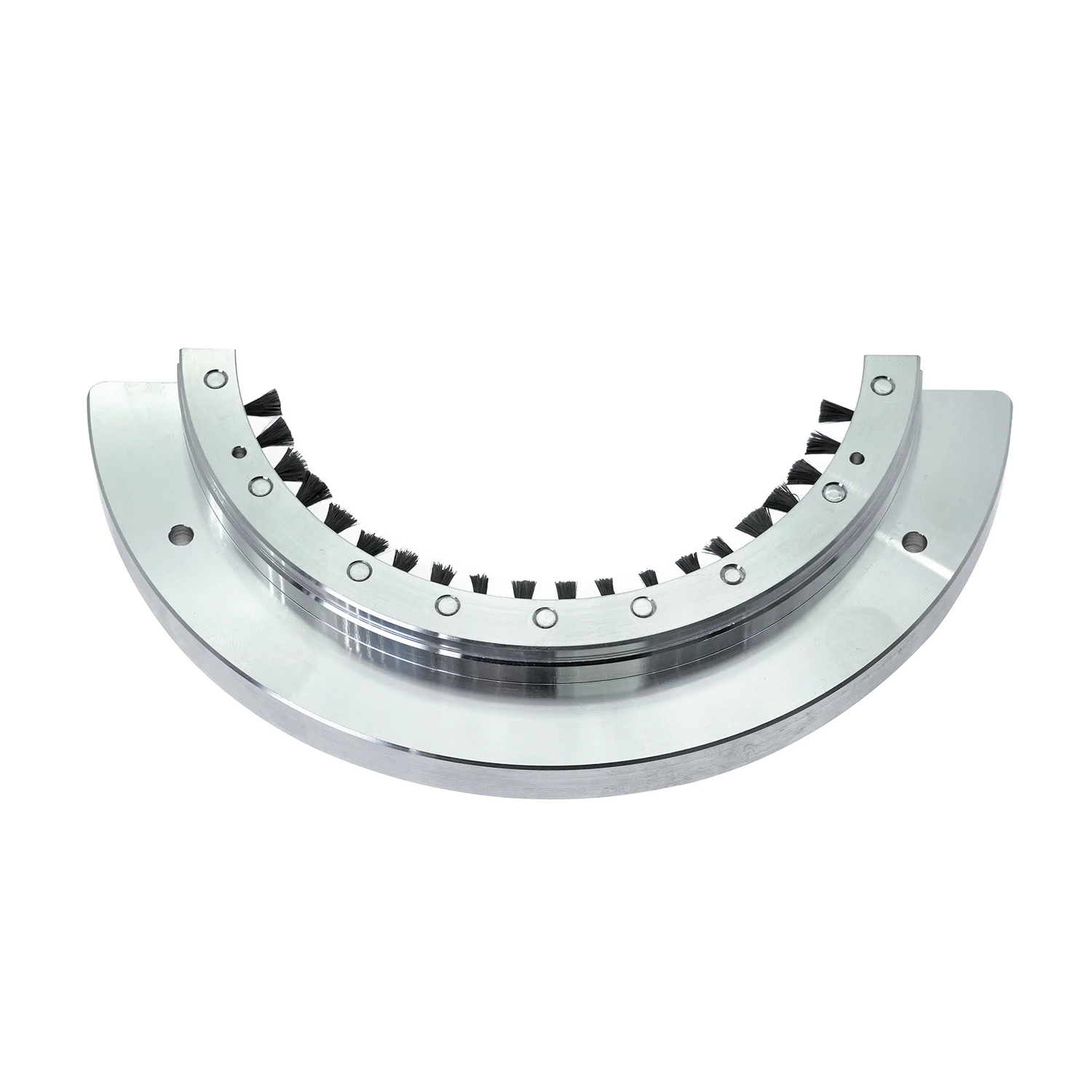

The Volsun sector-shaped shaft grounding ring brings together a sector-shaped grounding ring geometry and dedicated bearing protection ring design to intercept shaft currents before they reach sensitive bearings. Traditional grounding rings often fail to fully protect the bearing because of limited contact area, poor conductivity, or inadequate mounting. By contrast, the sector-shaped shaft grounding ring uses segmented conductive sectors that maintain consistent, low-impedance contact with the rotating shaft surface. This ensures that current preferentially flows through the Volsun shaft grounding ring instead of through the bearing path, greatly reducing the risk of electrical pitting, fluting, and premature failure

Key features and benefits

- Targeted protection: The Volsun bearing protection ring captures and diverts damaging shaft currents at the source, acting as a dedicated electrical grounding bearing component to preserve bearing raceways and rolling elements. This targeted approach reduces electric discharge machining (EDM) and the cumulative damage that shortens bearing life

- Sector-shaped design: The sector-shaped grounding ring architecture increases effective contact area while offering low-friction engagement. Each sector acts as a discrete conductive segment that conforms to shaft surface irregularities, improving reliability under varied operating conditions

- Durable materials: Constructed from wear-resistant, highly conductive alloys and incorporating replaceable contact elements, the Volsun sector-shaped shaft grounding ring resists corrosion and abrasion. The use of durable conductive materials means longer service intervals and fewer replacements for the bearing protection ring

- Low maintenance: The design minimizes maintenance requirements by providing predictable wear patterns and easy access for inspection and replacement. The Volsun shaft grounding ring enables routine service without disassembly of major equipment, saving downtime and labor costs

- Universal compatibility: Engineered for broad compatibility, the sector-shaped grounding ring adapts to standard shaft diameters and common bearing configurations. Its modular nature simplifies retrofitting older machines, making the Volsun electrical grounding bearing solution ideal for both new installations and upgrades

- Safety and compliance: Properly grounding shaft currents is a critical safety measure in high-speed or high-voltage rotating equipment. The Volsun bearing protection ring helps facilities meet industry standards for electrical safety and equipment protection

Applications across industries

The Volsun sector-shaped shaft grounding ring BEARING PROTECTION for Damage is suitable for a wide range of industrial environments where shaft currents and electrical discharge pose a threat to bearing integrity. Typical application areas include:

- Electric motors and generators: In variable-frequency drive (VFD) systems, the Volsun electrical grounding bearing prevents inverter-induced shaft currents from causing bearing fluting and electrical erosion

- Wind turbines: Turbine generators and gearboxes benefit from the Volsun bearing protection ring by extending bearing service life and reducing costly gearbox repairs

- Industrial pumps and compressors: High-speed pumps frequently experience shaft current; the sector-shaped shaft grounding ring mitigates shaft-to-bearing current flow, improving reliability

- Marine propulsion and rail traction motors: Environments with harsh duty cycles and fluctuating currents demand robust grounding solutions; the Volsun shaft grounding ring meets these needs

- Machine tools and precision equipment: For CNC spindles and high-precision rotating systems, the Volsun bearing protection ring protects against micro-minence damage that can degrade machining quality

Innovation and technical advantages

The Volsun sector-shaped shaft grounding ring brings technical innovation to a mature field. Key innovations include:

- Segmented conductive sectors: Unlike continuous ring designs that may concentrate wear and lose contact, the sector-shaped grounding ring uses multiple conductive sectors. This design distributes wear and maintains continuous electrical contact for improved shaft grounding ring function

- Optimized contact mechanics: The sectors are designed to maintain low contact pressure while ensuring electrical continuity. This reduces frictional heat and mechanical wear that can undermine both the grounding ring and the adjacent bearings

- Replaceable contact modules: Volsun offers the bearing protection ring with replaceable modules so that worn sectors can be serviced rapidly without full ring replacement. This reduces lifecycle costs and simplifies inventory management

- Low-impedance electrical path: Engineered contact geometry and conductive material selection create a low-resistance path to ground. This electrical grounding bearing approach ensures that harmful currents preferentially flow to ground rather than through the bearing elements.

- Corrosion-resistant construction: Surface treatments and corrosion-resistant alloys protect the sector-shaped shaft grounding ring in aggressive environments, extending operational life and maintaining electrical performance

- Adaptive mounting systems: Volsun’s mounting solutions allow fine adjustment to accommodate shaft eccentricity and thermal expansion, ensuring consistent contact even under dynamic operating conditions

Design considerations and installation guidance

Proper selection and installation are essential to the performance of the Volsun shaft grounding ring and bearing protection ring. Key considerations include:

- Shaft diameter and surface condition: Select a sector-shaped grounding ring sized for the nominal shaft diameter and prepare the shaft surface per Volsun recommendations to ensure reliable contact

- Grounding path integrity: Integrate the Volsun electrical grounding bearing into a low-impedance grounding system. Proper bonding to the equipment frame and facility ground will optimize current diversion and safety

- Environmental sealing: Where contamination or moisture is present, select protective seals or housings compatible with the sector-shaped shaft grounding ring to preserve contact element life

- Maintenance intervals: Implement routine inspection of the Volsun bearing protection ring contact sectors and replace worn modules as needed to sustain performance

Performance metrics and expected outcomes

Customers who install the Volsun sector-shaped shaft grounding ring BEARING PROTECTION for Damage can expect measurable improvements in equipment reliability. Typical outcomes include reduced bearing replacement frequency, lowered maintenance costs, and fewer unplanned outages caused by electrical bearing damage. By providing a dedicated electrical grounding bearing solution that intercepts shaft currents, Volsun helps extend bearing life and improve the overall lifecycle economics of rotating assets

Why choose Volsun

Volsun combines decades of industry expertise with rigorous engineering to deliver grounding and bearing protection solutions that address real-world operational challenges. The Volsun sector-shaped shaft grounding ring BEARING PROTECTION for Damage is the result of targeted research into materials, contact dynamics, and field-proven installation practices. For operators seeking an effective shaft grounding ring and bearing protection ring to safeguard valuable rotating equipment, Volsun offers a practical, high-performance electrical grounding bearing solution backed by technical support and proven results
