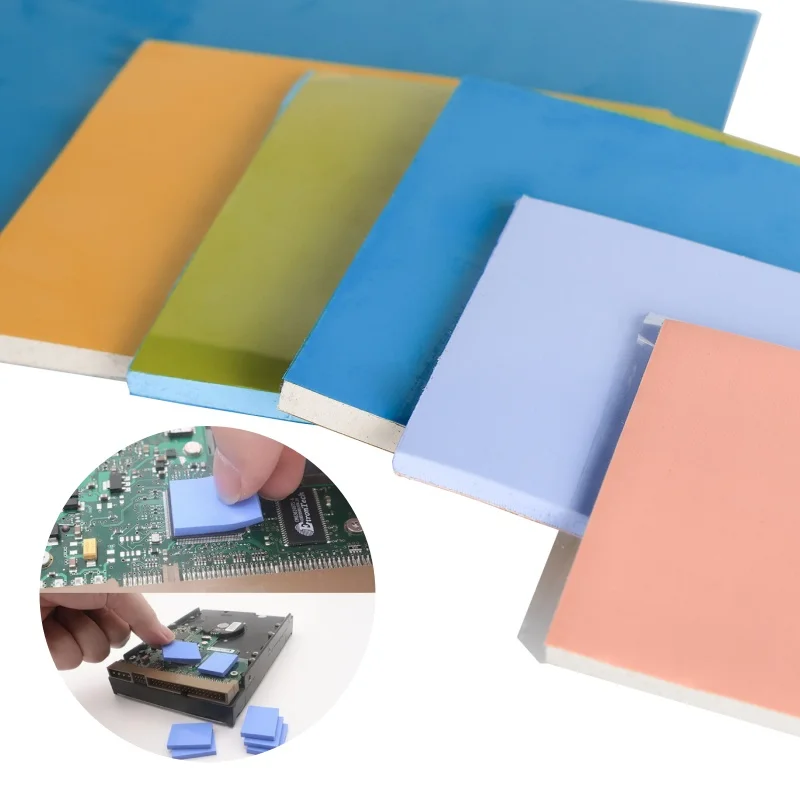

Silicone Thermal Conductive Pad ISO9001 Certified for Electronic Components and Circuit Boards
Description
High Voltage Safety: Ensures reliable insulation for electrical components
Thermal Conductivity: Efficient heat dissipation for optimal performance
ISO9001 Certified: Meets international quality standards for safety and reliability
Soft Silicone Material: Comfortable and flexible for precise application
Volsun Model 030: Engineered for superior electrical insulation
Volsun Silicone Thermal Conductive Pad ISO9001 Certified for Electronic Components and Circuit Boards
Volsun presents a high-performance silicone thermal pad designed as a reliable silicone thermal pad solution for demanding thermal management applications. This silicone thermal pad is engineered as a premium thermal interface material to deliver consistent heat conduction between electronic components and circuit boards, addressing the growing need for efficient electronic cooling solutions. Backed by Volsun’s ISO9001 and IATF 16949 certifications and years of polymer materials research, this silicone thermal pad provides repeatable mechanical conformity, outstanding thermal performance, and long-term stability in a wide range of operating environments
Product Features and Material Profile

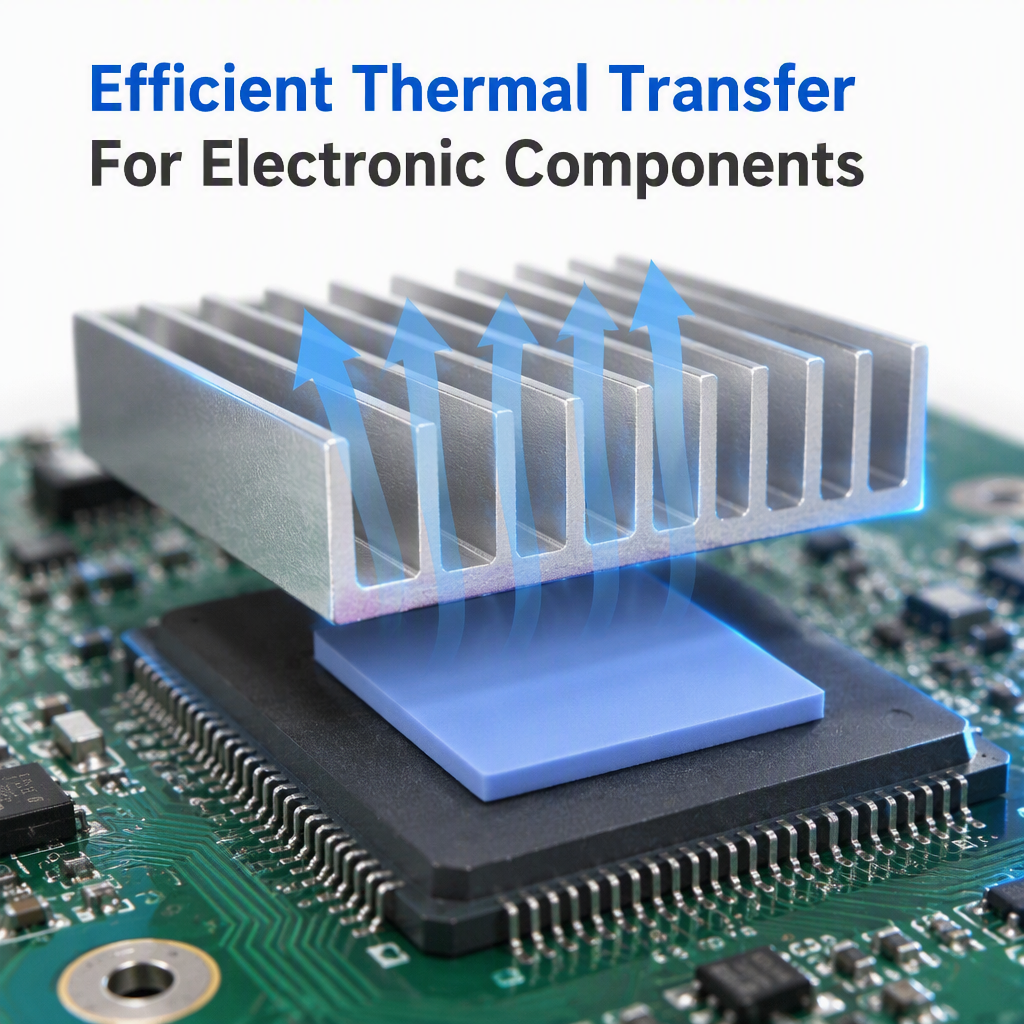

This silicone thermal pad is formulated from high-grade silicone elastomers infused with thermally conductive fillers to produce a soft, compressible thermal interface material that conforms easily to uneven surfaces. The silicone thermal pad boasts low thermal resistance and high thermal conductivity values relative to standard gap fillers, giving designers an effective thermal interface material option for transferring heat from chips, power modules, and other heat-generating components to heat sinks, chassis, or circuit board planes. The silicone thermal pad features excellent dielectric properties, flame retardant, and aging resistance to ensure safe, stable operation across the product lifecycle
Mechanical and Thermal Characteristics

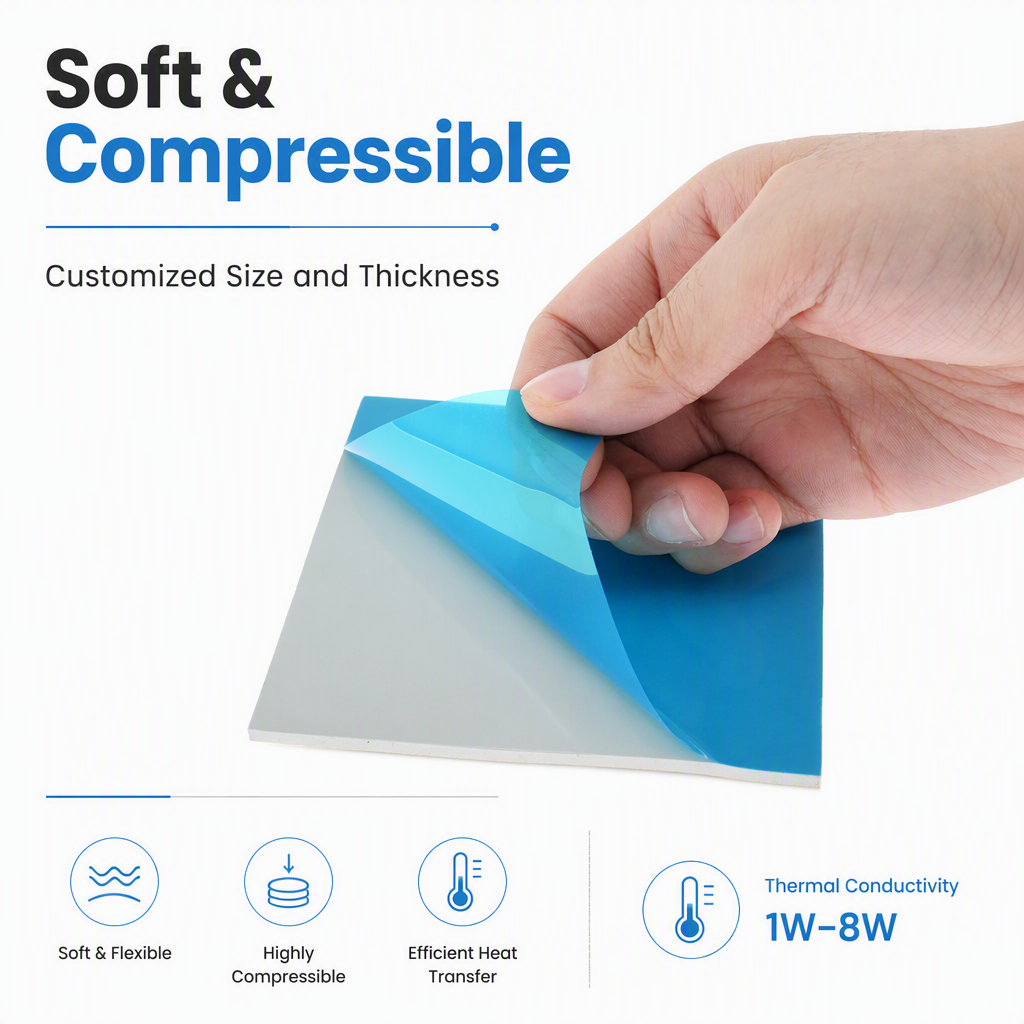

As a silicone thermal pad product, this material offers a balance of softness and mechanical resilience. Its compressibility allows the silicone thermal pad to fill micro-gaps and surface irregularities between components and the heat spreader, producing a reliable thermal path. The product demonstrates low outgassing and minimal thermal creep under thermal cycling, maintaining contact pressure and thermal performance over repeated thermal cycles. The silicone thermal pad’s thermal interface material behavior provides uniform heat transfer across interfaces, supporting improved electronic cooling solutions and reduced hot spots on circuit boards
Applications and Use Cases

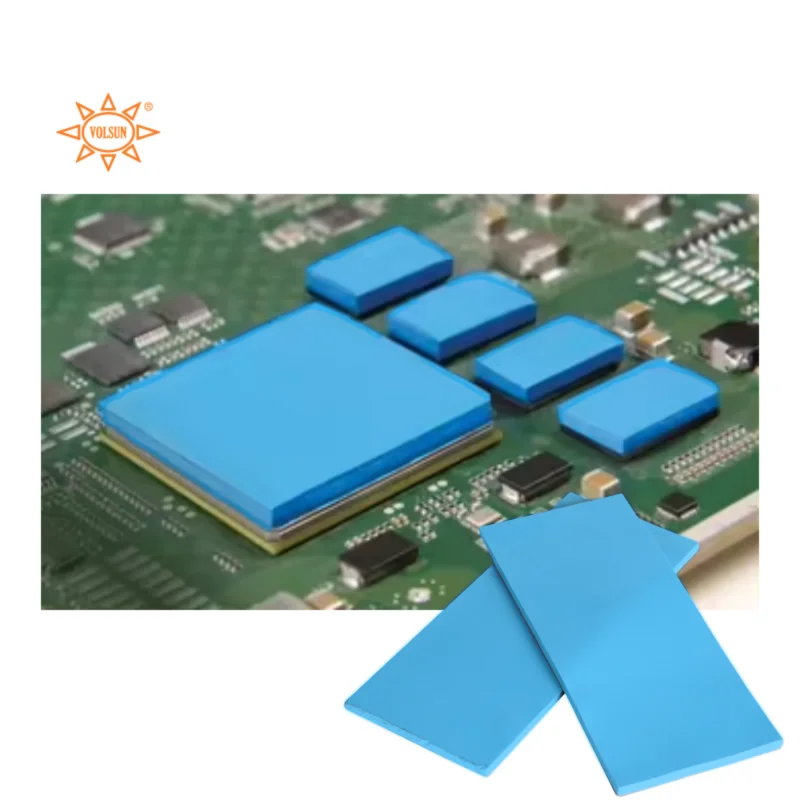

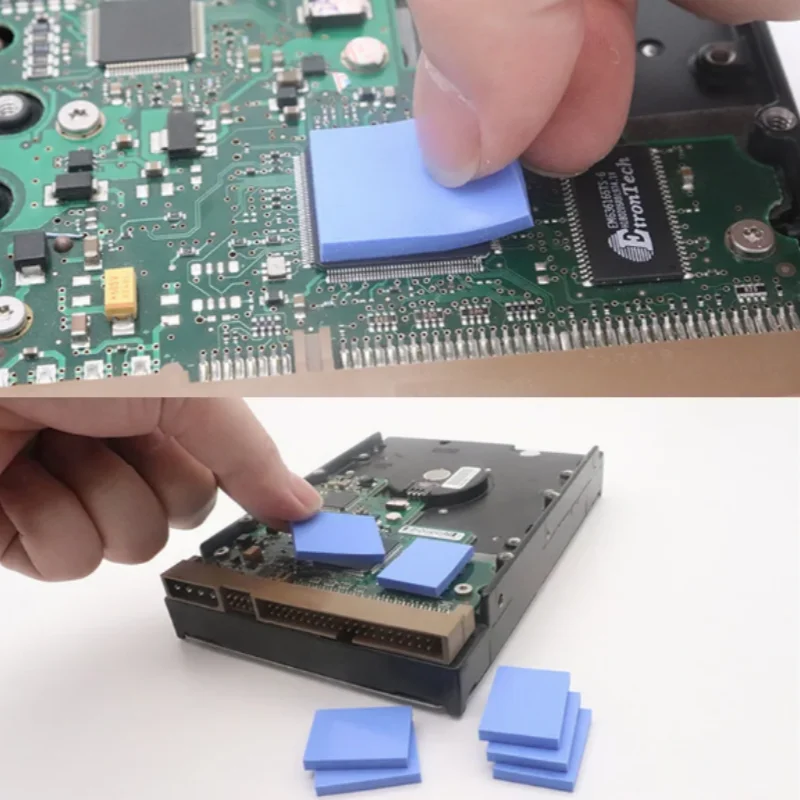

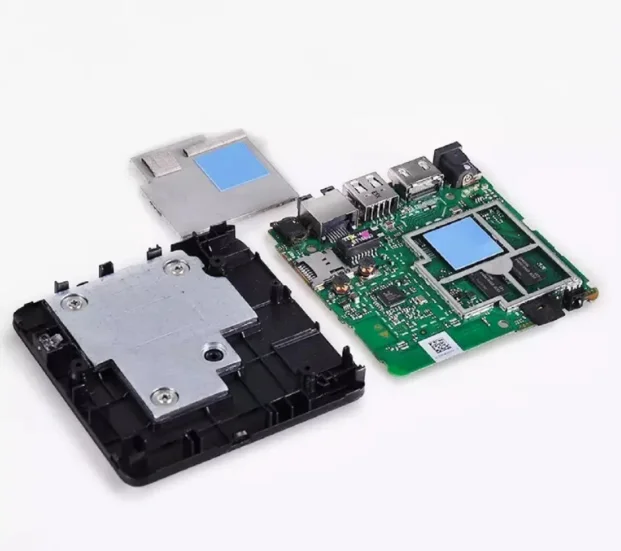

The silicone thermal pad is suitable for a wide spectrum of electronics cooling solutions, including power supplies, LED modules, telecom equipment, automotive electronic control units (ECUs), battery management systems, and consumer electronics. As a thermal interface material, the silicone thermal pad is particularly effective in assemblies where component heights vary and where fixed-gap thermal pads or adhesives are preferred over liquid or phase-change TIMs. In circuit board heat dissipation scenarios, the silicone thermal pad enhances thermal coupling between surface-mounted devices and board-level heat sinks, improving overall system reliability and longevity
Design Flexibility and Installation

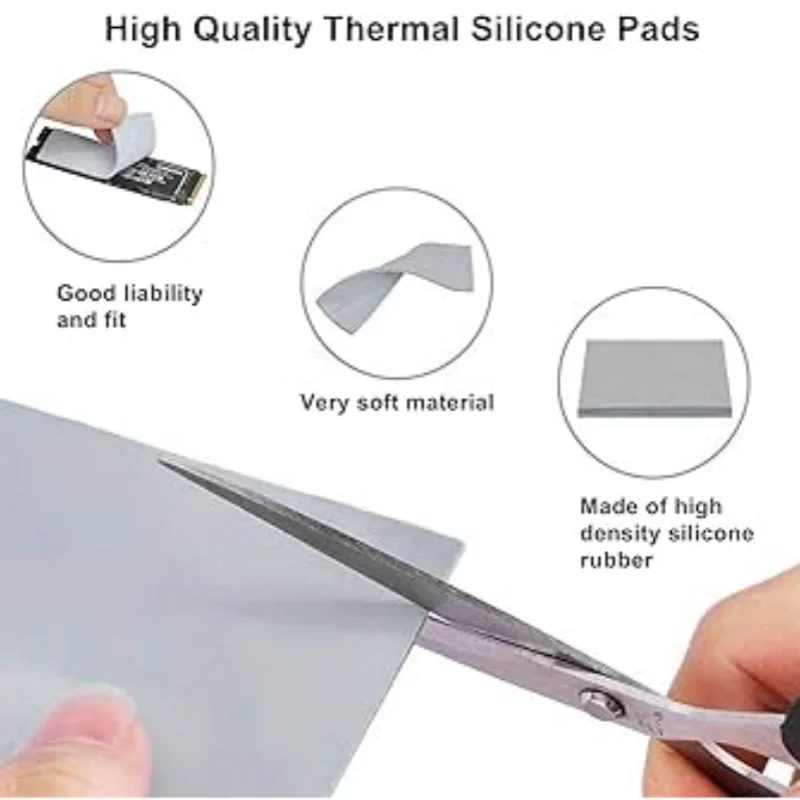

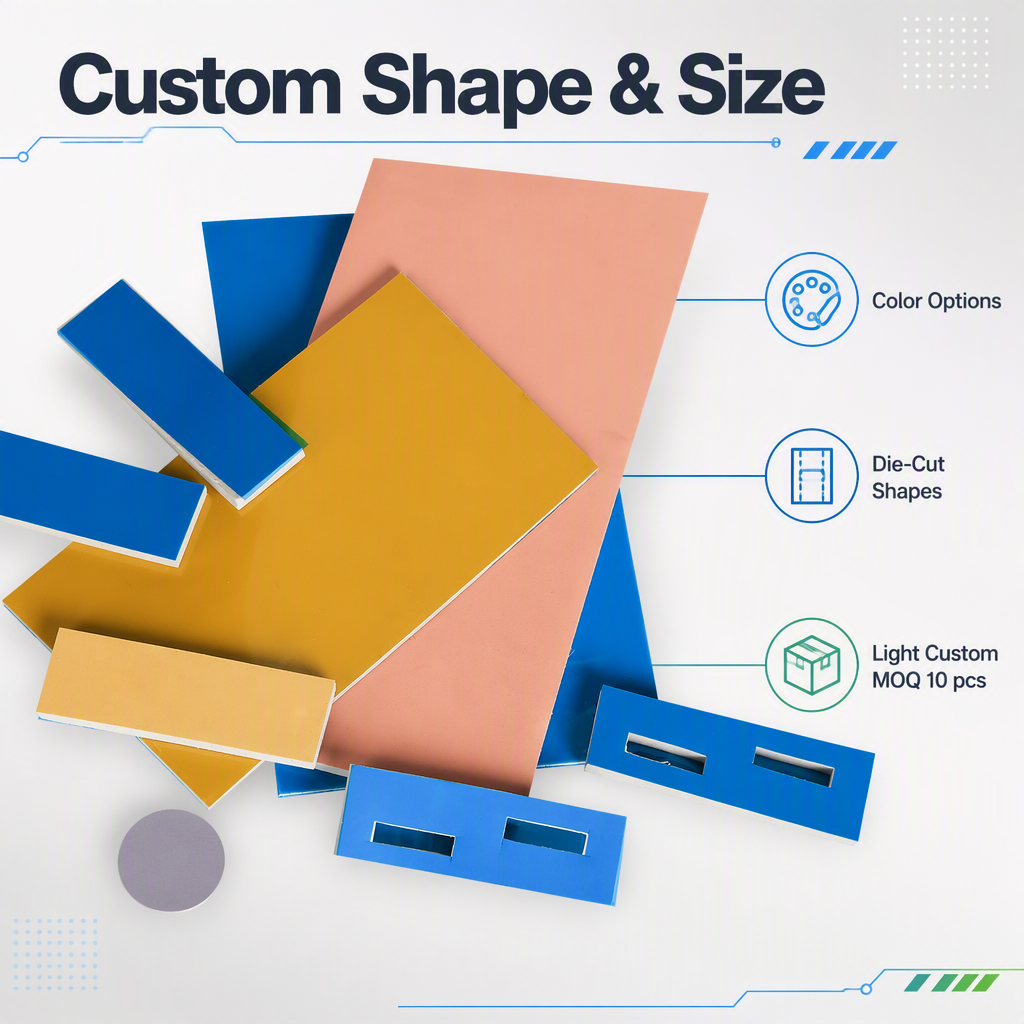

Volsun provides this silicone thermal pad in multiple thicknesses, densities, and sheet sizes to match the requirements of diverse thermal interface material applications. The silicone thermal pad can be die-cut, slit, or supplied in standard sheets for rapid integration into manufacturing lines. Its tacky surface option simplifies placement and temporary adhesion during assembly while still allowing rework if necessary. The silicone thermal pad’s ease of handling and predictable compression set characteristics streamline installation in production environments focused on efficient electronic cooling solutions and consistent circuit board heat dissipation performance
Reliability and Compliance
Manufactured in Volsun’s certified facilities, this silicone thermal pad meets ISO9001 quality management standards and is produced under processes aligned with IATF 16949 for automotive-grade reliability. The silicone thermal pad undergoes stringent quality inspections, including thermal performance testing, dielectric breakdown testing, and aging studies. These controls ensure the silicone thermal pad delivers repeatable results as a thermal interface material across batches and production runs. Volsun’s engineering support includes guidance on best practices for using the silicone thermal pad to optimize thermal performance in circuit board heat dissipation designs
Innovation and Technical Advantages
Volsun leverages decades of polymer research to optimize filler dispersion and silicone matrix chemistry, giving the silicone thermal pad a combination of high thermal conductivity and low hardness that distinguishes it among thermal interface material options. The silicone thermal pad’s formulation minimizes pump-out and particle migration under mechanical stress, preserving thermal pathways over time. The material’s thermal interface material properties enable rapid establishment of thermal equilibrium during power-up, contributing to better-managed transient thermal events in electronic cooling solutions. Additionally, the silicone thermal pad’s electrical insulation characteristics make it a dual-purpose component for both thermal and dielectric needs in compact assemblies and circuit board heat dissipation schemes
Customization and OEM/ODM Services
Volsun offers tailored development of the silicone thermal pad to meet specific thermal interface material performance targets, including customized thickness, thermal conductivity grades, and tack levels. For OEMs and ODMs, Volsun supports prototyping, die-cutting, and supply chain integration to facilitate seamless adoption of the silicone thermal pad into existing manufacturing processes. With a global customer base and broad application experience, Volsun can advise on trade-offs between thermal conductivity, compressibility, and thickness to yield optimal electronic cooling solutions for a given circuit board heat dissipation challenge
Performance in Harsh Environments
Designed for a broad temperature range and repeated thermal cycling, the silicone thermal pad maintains mechanical integrity and thermal performance under harsh conditions. The silicone thermal pad resists oxidation, UV exposure, and chemical contaminants typical in industrial and automotive environments, making it a durable thermal interface material for long-term circuit board heat dissipation. Its flame-retardant nature and dielectric stability add safety margins where regulatory compliance and reliability are critical
Value for System Designers
For system designers seeking a practical thermal interface material, the silicone thermal pad balances thermal conductivity, mechanical conformity, and manufacturability. The silicone thermal pad reduces the need for tight mechanical tolerances in assembly by accommodating height variations and providing consistent contact. Its availability in multiple grades permits cost-effective selection for specific electronic cooling solutions while delivering the circuit board heat dissipation performance necessary to protect sensitive components and maintain system uptime
Support, Testing, and Documentation
Volsun supplies datasheets, test reports, and application notes for the silicone thermal pad to facilitate engineering validation and regulatory submission. Comprehensive testing covers thermal conductivity, thermal impedance, dielectric strength, flammability, and environmental aging to validate the silicone thermal pad’s suitability as a thermal interface material in various electronic cooling solutions. Engineering consultation is available to help specify the proper silicone thermal pad grade for achieving targeted circuit board heat dissipation metrics
Volsun’s silicone thermal pad is a versatile, ISO9001 certified thermal interface material engineered to enhance electronic cooling solutions and improve circuit board heat dissipation. With customizable options, proven reliability, and strong technical support, the silicone thermal pad is an optimal choice for OEMs and designers who require dependable thermal management for electronic components and circuit boards. Volsun’s experience, certifications, and global manufacturing presence ensure consistent supply and quality for projects ranging from consumer electronics to automotive systems, making the silicone thermal pad a practical and effective thermal interface material for modern thermal management challenges
