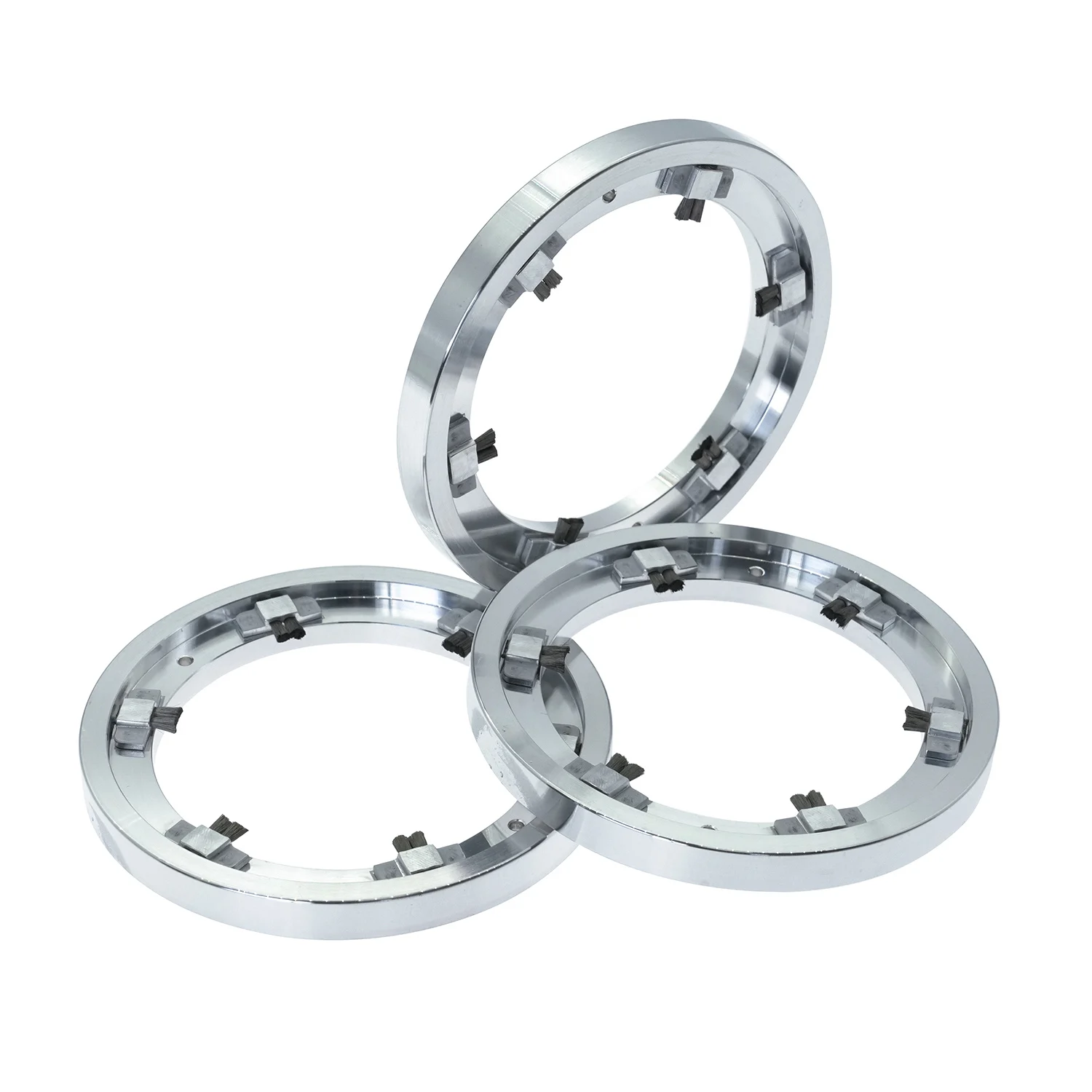

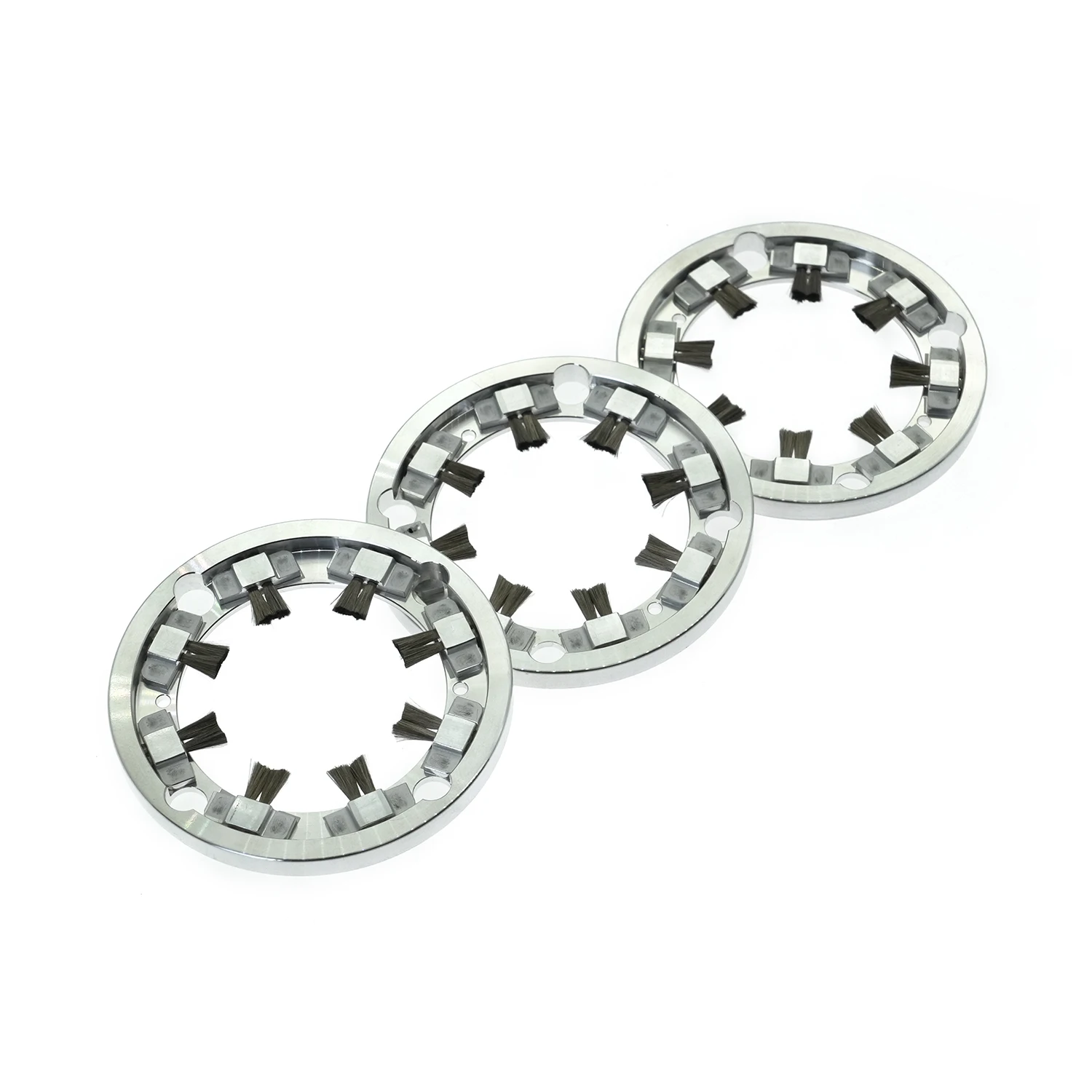

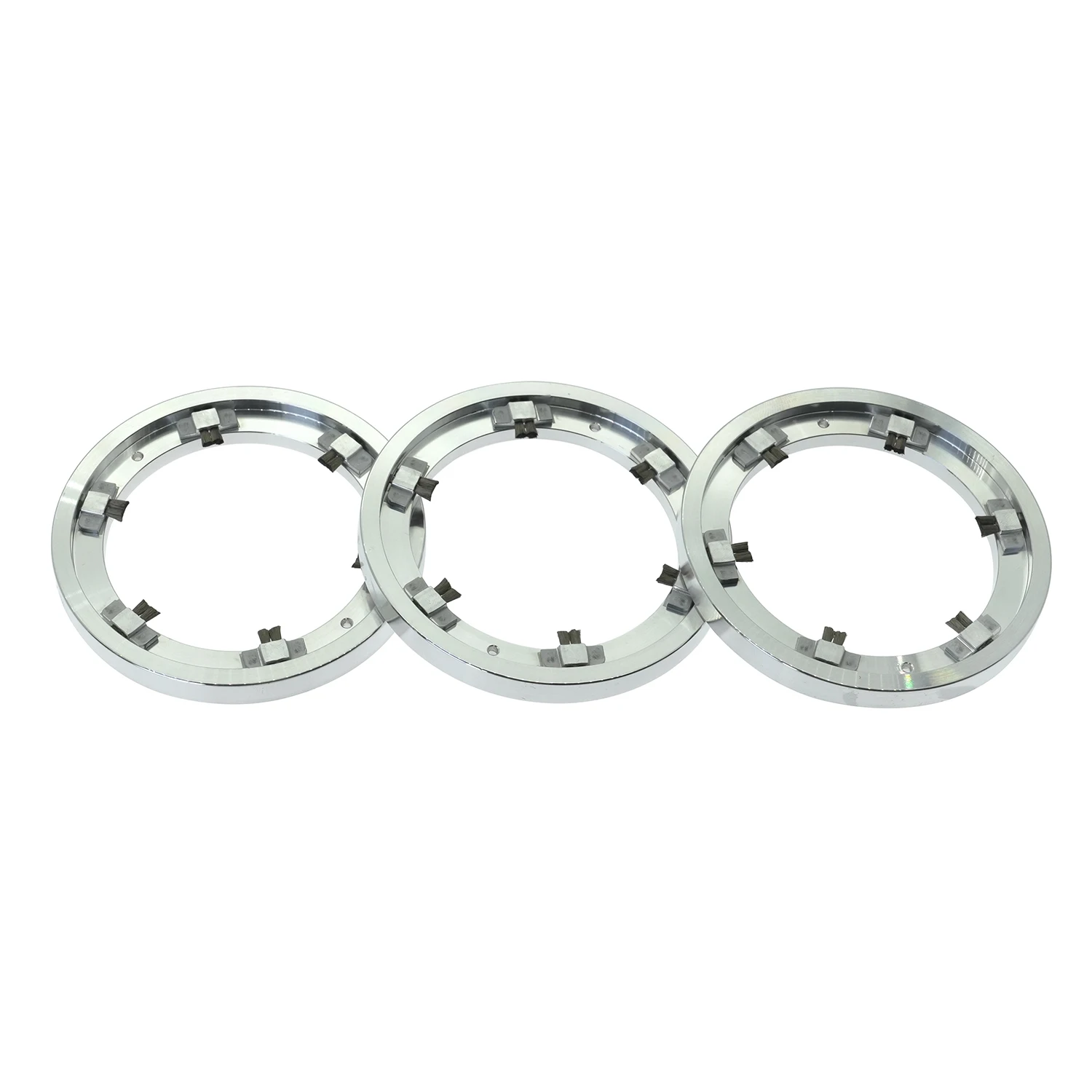

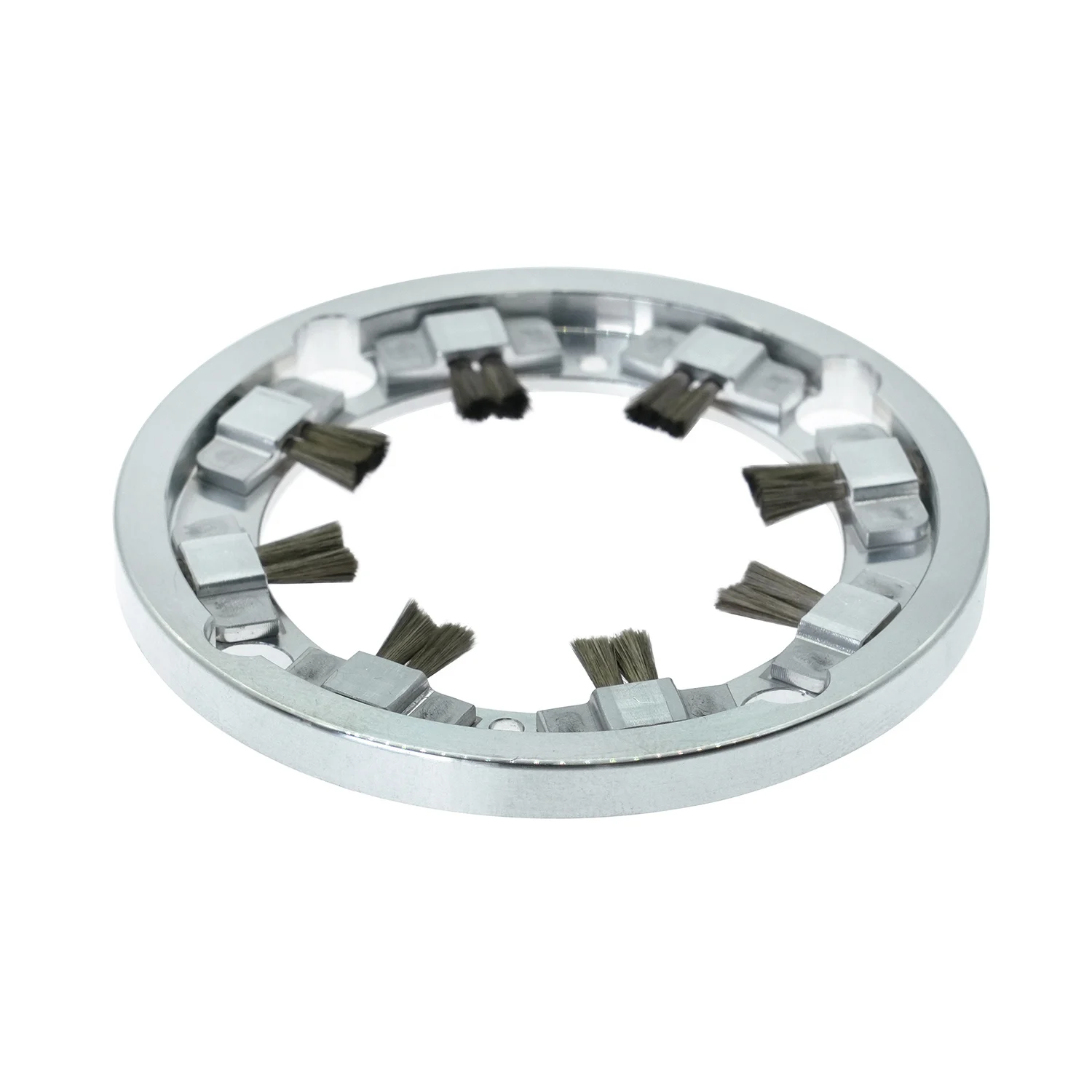

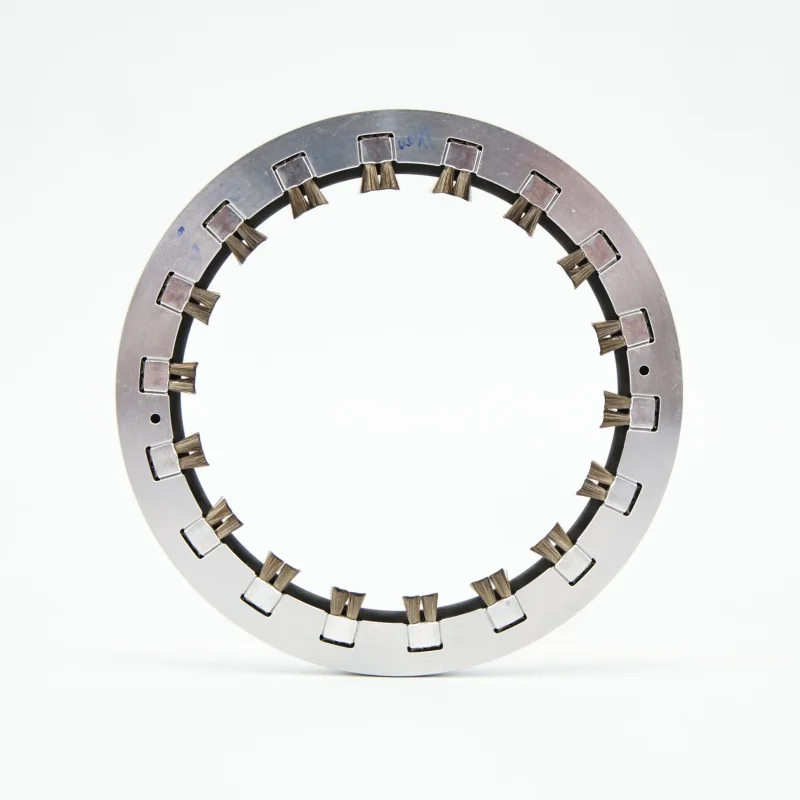

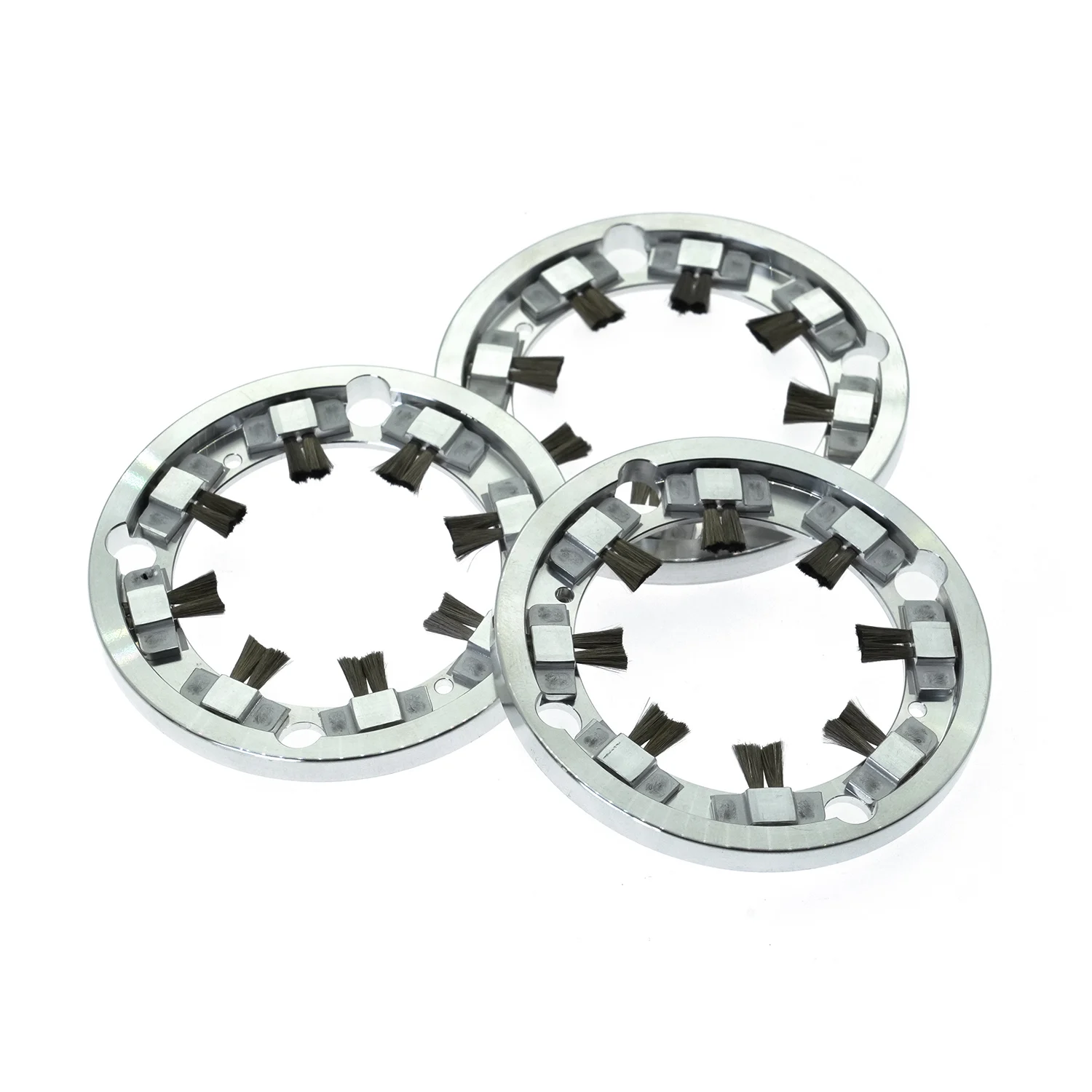

Shaft Grounding Rings for Low Voltage Motors

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives - VFDs

Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings.
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds - up to 20,000 RPM

Economic and Operational Benefits

Cost Efficiency

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements

Harsh Environment Resilience:

Temperature Range: Operates reliably from -40°C to 210°C

Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing.

Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference- EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection.



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun’ Shaft Grounding Rings for Low Voltage Motors deliver a reliable, high-performance solution for protecting motor shafts and ensuring electrical continuity in industrial environments. Designed specifically as low voltage motor accessories, Volsun shaft grounding rings provide robust motor shaft protection while addressing the critical needs of electrical EMC grounding. These innovations are essential for plant engineers, maintenance teams, and OEMs seeking to minimize bearing currents, prevent premature bearing failure, and ensure regulatory compliance.

Product Overview and Purpose

Shaft grounding rings are specialized devices that attach to motor shaft surfaces to intercept and divert stray electrical currents away from bearings and other vulnerable components. For low voltage motor accessories, Volsun shaft grounding rings are engineered to be compact, durable, and easy to install, delivering efficient motor shaft protection without complex modifications. The core purpose of these components is to provide a continuous electrical path to ground, thereby preventing electrical discharge across bearings and the resulting erosive damage.

Key Features

- Robust Construction: Volsun’s shaft grounding rings are manufactured from high-quality conductive materials chosen for their wear resistance and electrical conductivity. The construction ensures long service life even in demanding conditions typical for low voltage motor accessories.

- Precision Fit: Designed for precise alignment with motor shafts, these grounding rings provide consistent contact under dynamic conditions, improving motor shaft protection compared to ad hoc grounding methods.

- Low Friction Contact: The contact elements within Volsun’s shaft grounding rings are engineered to minimize friction and wear on both the shaft and the grounding ring, making them an ideal choice among low voltage motor accessories where mechanical integrity matters.

- Effective Electrical EMC Grounding: These grounding rings facilitate efficient electrical EMC grounding by providing a dedicated path for leakage currents. Effective grounding reduces electromagnetic interference (EMI) and helps the motor comply with EMC standards.

- Easy Installation and Maintenance: Volsun’s design emphasizes quick mounting and replacement without requiring motor disassembly. This simplifies maintenance operations and reduces downtime.

- Versatile Compatibility: Available in multiple bore sizes and configurations, Volsun’s shaft grounding rings accommodate a broad range of low voltage motors, expanding their applicability across industrial sectors.

- Environmental and Dust Resistance: Sealed or partially shielded options help the shaft grounding rings withstand contaminants and operate reliably in harsh service environments.

Applications

Volsun’s shaft grounding rings for low voltage motors are applicable across industrial installations where motor shaft protection and electrical EMC grounding are priorities. Typical use cases include:

- Industrial Pumps and Compressors: These systems often run for extended periods and are susceptible to bearing damage due to stray currents. Volsun’s shaft grounding rings minimize repair cycles and protect rotating equipment.

- HVAC Systems: Low voltage motors in HVAC units benefit from reduced downtime when fitted with reliable grounding rings that provide motor shaft protection and improved EMC performance.

- Conveyor and Material Handling Equipment: Continuous operation environments require accessories that ensure longevity. Volsun’s shaft grounding rings reduce failures and maintain operational throughput.

- OEM Motor Manufacturing: Integrating Volsun’s shaft grounding rings as standard low voltage motor accessories enhances the product offering by adding motor shaft protection and electrical EMC grounding capability.

- Marine and Offshore Applications: With appropriate sealing options, these grounding rings serve in corrosive or humid environments where electrical continuity and shaft protection are crucial.

Innovations and Technical Advantages

Volsun brings innovation to low voltage motor accessories by optimizing materials, contact design, and mounting methods to maximize durability and grounding efficiency. Key innovations include:

- Advanced Contact Materials: Using specialized conductive composites and plated contacts, Volsun’s shaft grounding rings maintain low electrical resistance while resisting wear. This improves motor shaft protection longevity and supports consistent electrical EMC grounding performance over time.

- Multi-Contact Designs: Multiple brush or contact points ensure redundancy and stable grounding even if one contact point experiences localized wear. This redundancy is vital for applications that demand uninterrupted protection.

- Non-Invasive Mounting Solutions: Volsun has developed mounting options that secure the shaft grounding rings without modifying the motor shaft geometry, preserving motor integrity and simplifying retrofits.

- Optimized Brush Geometry: The brush elements are shaped to maintain optimal pressure distribution across the shaft surface. This reduces localized wear and improves electrical contact continuity, enhancing motor shaft protection.

- Low-Noise Electrical Pathways: By controlling contact impedance and reducing arcing, Volsun’s shaft grounding rings improve electrical EMC grounding while decreasing the likelihood of electromagnetic emissions that can interfere with control systems.

Performance Benefits

Installing Volsun’s shaft grounding rings yields measurable benefits for operations:

- Reduced Bearing Failures: By diverting stray currents away from bearings, Volsun’s shaft grounding rings extend bearing life and lower maintenance costs.

- Improved System Reliability: As essential low voltage motor accessories, these grounding rings help prevent unexpected downtime by protecting critical rotating components and maintaining electrical grounding integrity.

- Enhanced Safety and Compliance: Effective electrical EMC grounding reduces EMI-related hazards and assists in meeting regulatory requirements, thereby supporting facility compliance and safety programs.

- Cost Savings Over Lifecycle: The prevention of bearing damage, decreased downtime, and extended motor life translate into lower lifecycle costs for motors equipped with Volsun’s shaft grounding rings.

Installation and Maintenance Guidance

Volsun provides installation guidelines to ensure optimal performance of shaft grounding rings. Proper selection of bore size and mounting style is critical to guarantee consistent contact and effective electrical EMC grounding. Routine inspections of contact wear and periodic replacement of brush elements or contact rings are advised to maintain motor shaft protection. Because the design emphasizes non-invasive mounting, retrofitting existing low voltage motors is straightforward and cost-effective.

Why Choose Volsun

Volsun’s expertise in electric motor accessories and grounding solutions positions the brand as a reliable partner for industrial customers. When selecting low voltage motor accessories like shaft grounding rings, buyers benefit from:

- Proven design focused on motor shaft protection and electrical EMC grounding.

- Range of product variants tailored to diverse low voltage motor types and service conditions.

- Support resources for proper selection, installation, and maintenance that maximize the operational lifespan of the grounding solution.

Volsun’s Shaft Grounding Rings for Low Voltage Motors combine practical design, durable materials, and engineered contact systems to deliver superior motor shaft protection and robust electrical EMC grounding. As essential low voltage motor accessories, these grounding rings reduce bearing failures, improve system reliability, and help facilities meet EMC standards. For plant operators, maintenance professionals, and OEMs seeking dependable motor shaft protection and effective electrical grounding, Volsun offers a versatile, high-performance solution that enhances motor longevity and reduces lifecycle costs.
