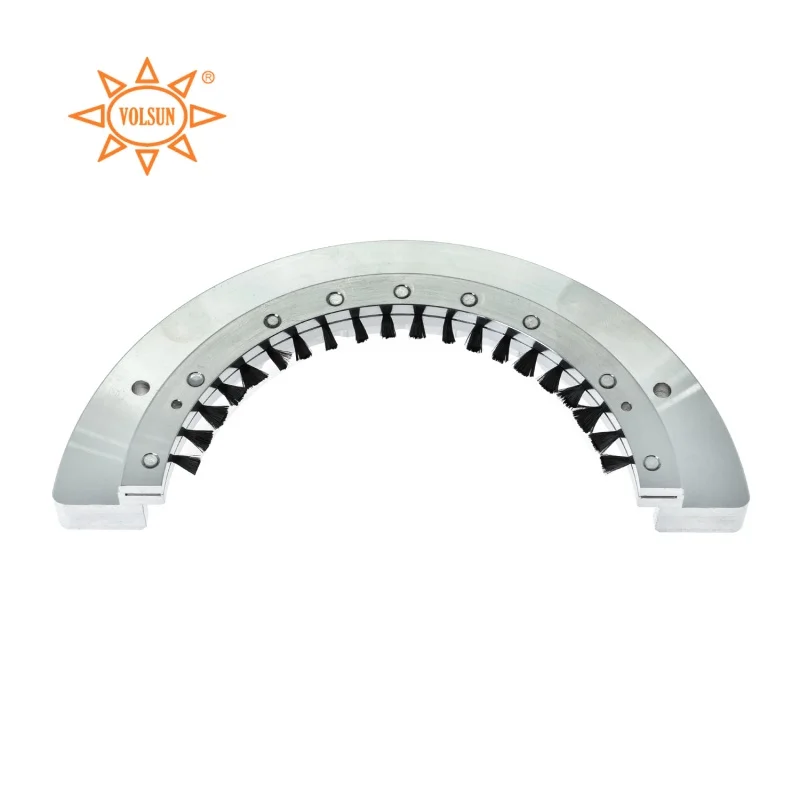

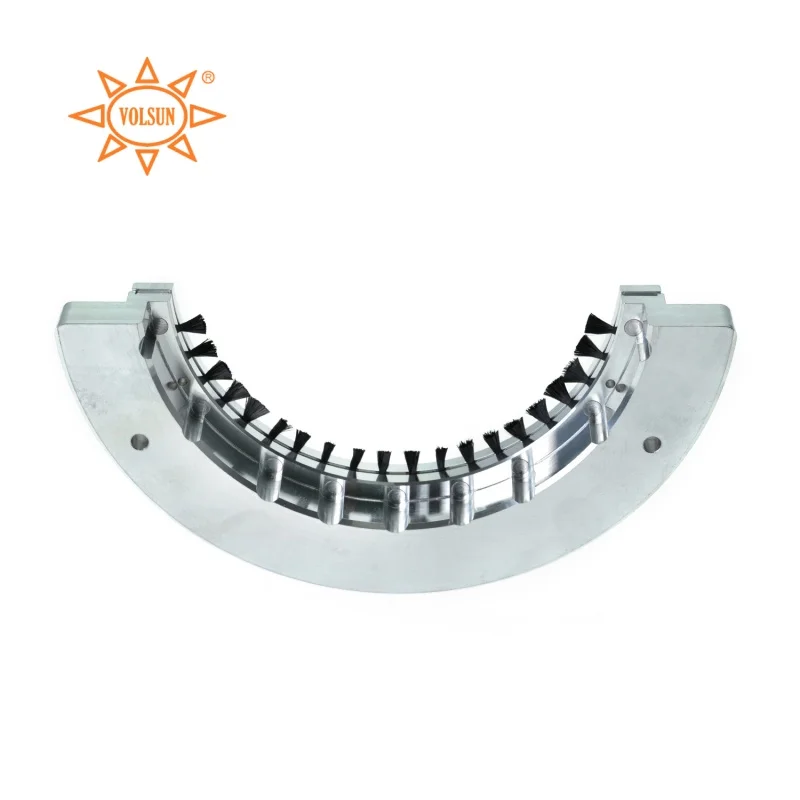

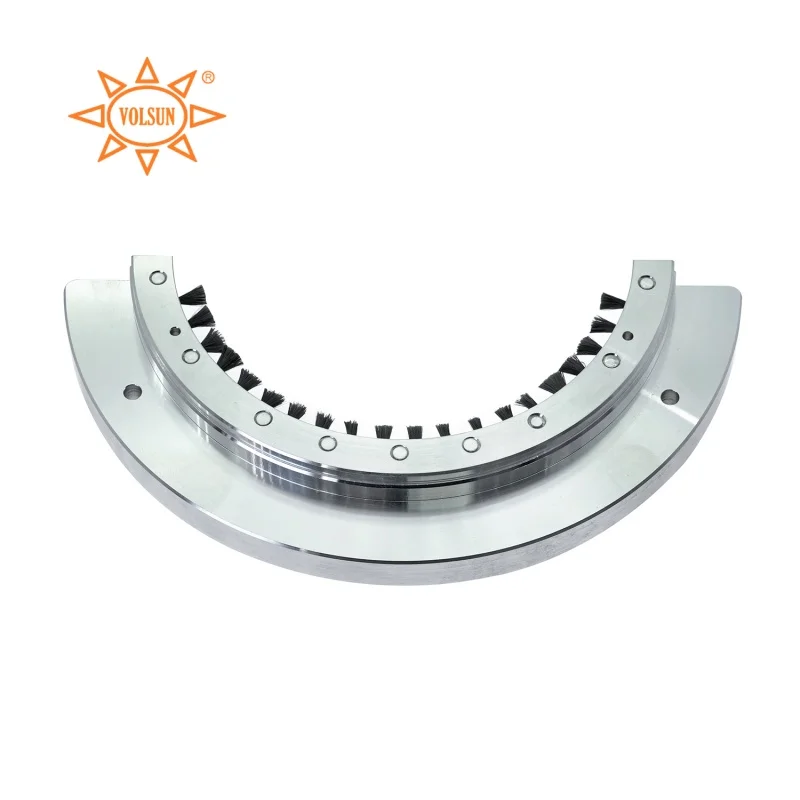

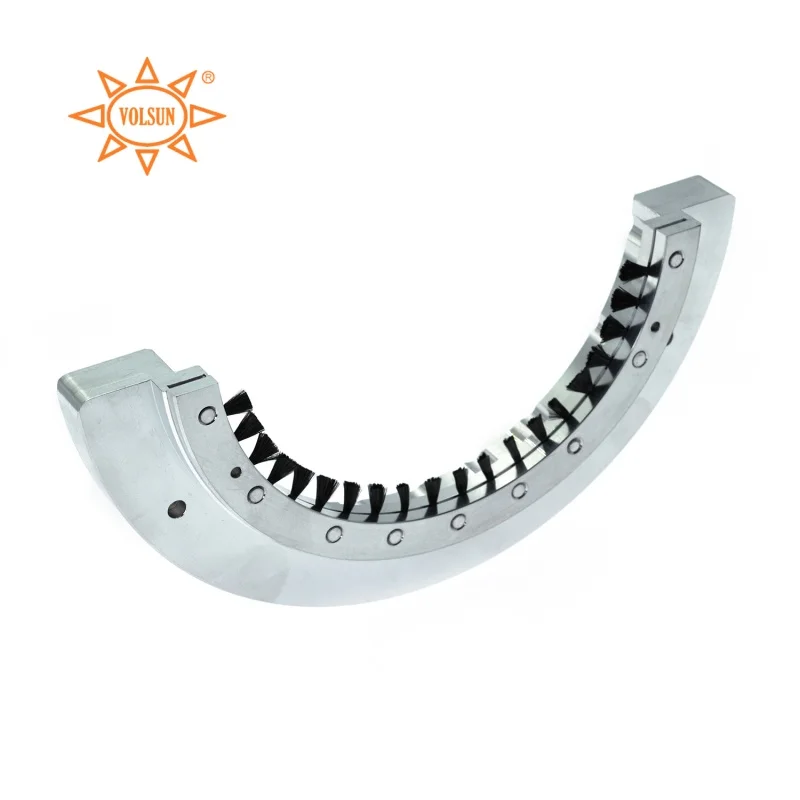

Shaft Grounding Ring Prevent Bearing Damage and Failure

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives - VFDs

Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings.
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds - up to 20,000 RPM

Economic and Operational Benefits

Cost Efficiency

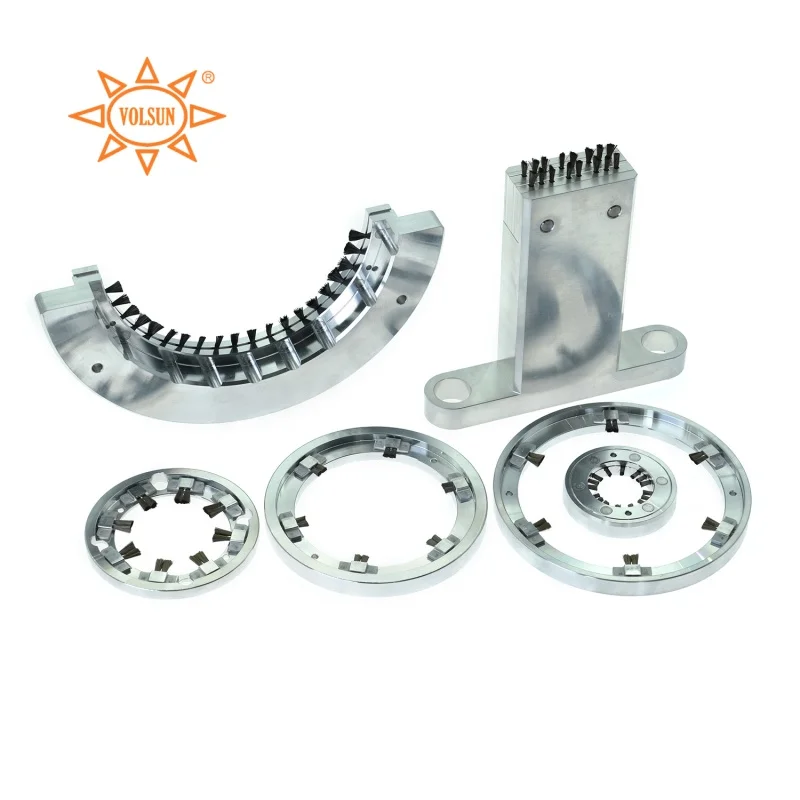

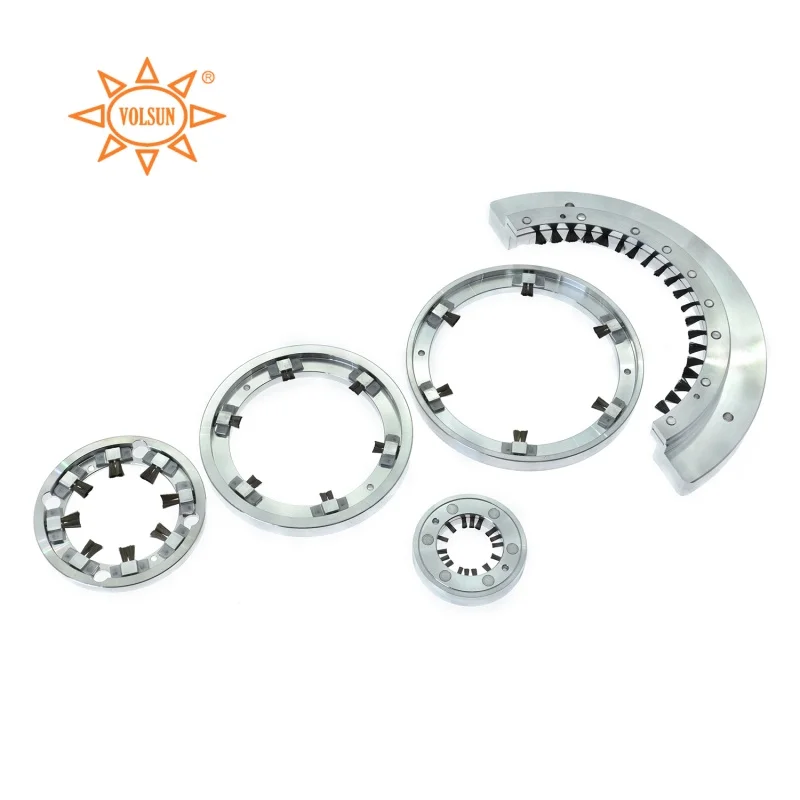

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements

Harsh Environment Resilience:

Temperature Range: Operates reliably from -40°C to 210°C

Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing.

Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference- EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection.



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Shaft Grounding Ring Prevent Bearing Damage and Failure — a precision-engineered solution designed to protect bearings, extend equipment life, and provide reliable electrical grounding solutions for rotating machinery. In industrial systems where electrical currents migrate through rotating shafts, shaft grounding ring technology becomes essential for preventing bearing damage and failure. The Volsun shaft grounding ring integrates advanced materials, proven design, and practical installation features to deliver superior bearing protection and enhance rotating equipment safety.

Shaft grounding ring is a focused method for diverting stray currents away from bearings by providing a low-impedance path to ground. Bearing protection is the primary objective of any shaft grounding ring system, because electrical discharge through bearings can produce pitting, fluting, and catastrophic failure. Volsun’s shaft grounding ring design emphasizes fast, secure conduction of unwanted current to a grounded terminal, thereby preserving bearing surfaces and preventing premature machine downtime. In environments where motors, generators, and gearboxes are subject to variable-frequency drives or other electrical disturbances, shaft grounding ring solutions are indispensable for bearing protection and equipment reliability.

Volsun’s shaft grounding ring uses a ring of conductive elements that maintain continuous contact with the shaft as it rotates. The shaft grounding ring assembly is engineered to minimize contact wear while maximizing conductivity and stability. Bearing protection is achieved by creating an effective electrical bypass that prevents current from traversing through sensitive bearing raceways. This electrical grounding solutions approach is preferable to expensive bearing replacements and unscheduled maintenance. By incorporating specialized conductive fibers or brush contacts and durable housings, Volsun’s shaft grounding ring reduces the risk of electrical discharge machining (EDM) damage to bearings and helps to maintain precision alignment and smooth operation.

Applications for the shaft grounding ring are broad and crucial across multiple industries. Wherever rotating equipment is present — including industrial motors, generators, wind turbines, pumps, compressors, rolling mills, and HVAC systems — shaft grounding ring solutions play a pivotal role in protecting critical components. In wind turbines, for example, shaft grounding ring and bearing protection help mitigate currents induced by lightning strikes and converter-driven harmonics. In manufacturing plants using variable-frequency drives, shaft grounding ring installations safeguard bearings from inverter-related shaft voltages. Across all these applications, Volsun’s shaft grounding ring contributes to rotating equipment safety by reducing electrical damage and extending service intervals.

The engineering innovation behind Volsun’s shaft grounding ring centers on material selection and contact design. Volsun employs long-life conductive fibers compounded with robust backing and self-adjusting contact arrangements that maintain effective contact under dynamic shaft conditions. This approach enhances bearing protection by ensuring continuous conduction even under vibration or misalignment. The shaft grounding ring benefits from low-resistance pathways, minimizing the voltage potential across bearings and directing stray currents safely to the ground. Compared to conventional grounding brushes or end-of-shaft grounding methods, the Volsun shaft grounding ring offers reduced maintenance, higher reliability, and clearer performance metrics for electrical grounding solutions.

Installation and maintenance are simplified to support rapid deployment and predictable performance. Volsun’s shaft grounding ring is designed for retrofitting into existing equipment as well as OEM integration during new machine builds. Comprehensive installation kits, clear mounting instructions, and adaptable flanges allow technicians to implement shaft grounding ring solutions with minimal downtime. Volsun also provides diagnostic advice and testing methods to confirm effective installation, verifying that shaft grounding ring systems deliver the intended bearing protection and rotating equipment safety. Routine inspections focus on contact wear and grounding continuity, and Volsun supplies replacement elements to facilitate quick serviceability.

Technical advantages of the shaft grounding ring include measurable reductions in bearing failure rates and improvements in mean time between failures (MTBF). Field data from installations across industrial sectors show that bearing protection via shaft grounding ring drastically reduces pitting and fluting incidents. The electrical grounding solutions provided by Volsun lower shaft voltage and provide a low-impedance return path that protects sensitive components. The shaft grounding ring also offers compatibility with a wide range of shaft diameters and speeds, ensuring that rotating equipment safety is achievable for diverse mechanical systems.

Beyond core performance, Volsun emphasizes compliance and safety standards in product development. The shaft grounding ring conforms to relevant international electrical safety norms and industry best practices for grounding rotating equipment. Through comprehensive testing, including endurance cycles and simulated electrical discharge events, the shaft grounding ring demonstrates resilience under demanding operational conditions. Volsun’s quality assurance programs ensure that every shaft grounding ring meets strict acceptance criteria before shipment, giving end users confidence in the bearing protection and electrical grounding solutions they install.

Economic impacts are significant when bearing protection via shaft grounding ring is implemented. Reduced bearing replacements, lower unplanned downtime, and fewer catastrophic failures translate into substantial savings over equipment lifecycles. Volsun’s shaft grounding ring allows facilities to optimize maintenance schedules from reactive to predictive strategies, freeing resources for higher-value activities and improving overall plant productivity. The return on investment for shaft grounding ring systems is typically realized quickly through reduced repair costs and improved equipment availability, reinforcing the role of electrical grounding solutions in responsible asset management.

Volsun also recognizes the value of training and technical support in maximizing the benefits of shaft grounding ring deployments. Comprehensive training modules teach maintenance teams how to install, inspect, and evaluate shaft grounding ring performance. Support resources include troubleshooting guides, on-site assistance options, and engineering consultations to tailor shaft grounding ring solutions for specific applications. This commitment to customer success ensures that shaft grounding ring installations deliver consistent bearing protection and contribute to long-term rotating equipment safety.

In summary, the Volsun Shaft Grounding Ring Prevent Bearing Damage and Failure is an engineered solution delivering reliable bearing protection, proven electrical grounding solutions, and enhanced rotating equipment safety. Through advanced materials, rigorous design, and practical installation features, Volsun’s shaft grounding ring protects bearings from electrical discharge, reduces maintenance demands, and improves equipment uptime. For operations seeking to minimize bearing failures and extend the service life of rotating machinery, the Volsun shaft grounding ring provides a cost-effective, durable, and high-performance grounding solution that reinforces operational resilience and safety.
