Shaft Grounding Ring for Wind Turbine Shaft Current protection

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives VFDs
Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds up to 20,000 RPM
Economic and Operational BenefitsCost Efficiency

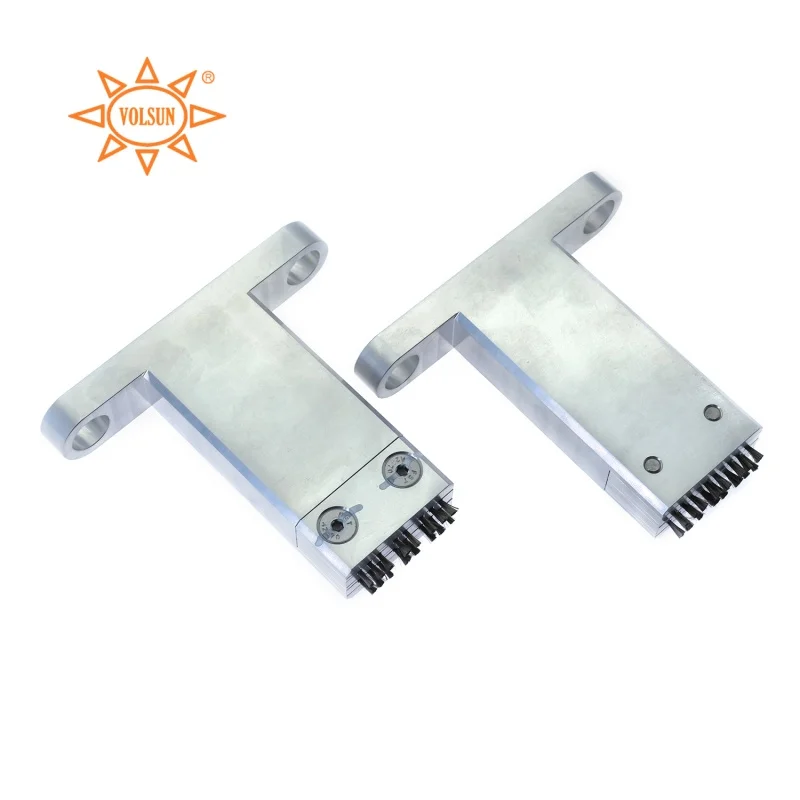

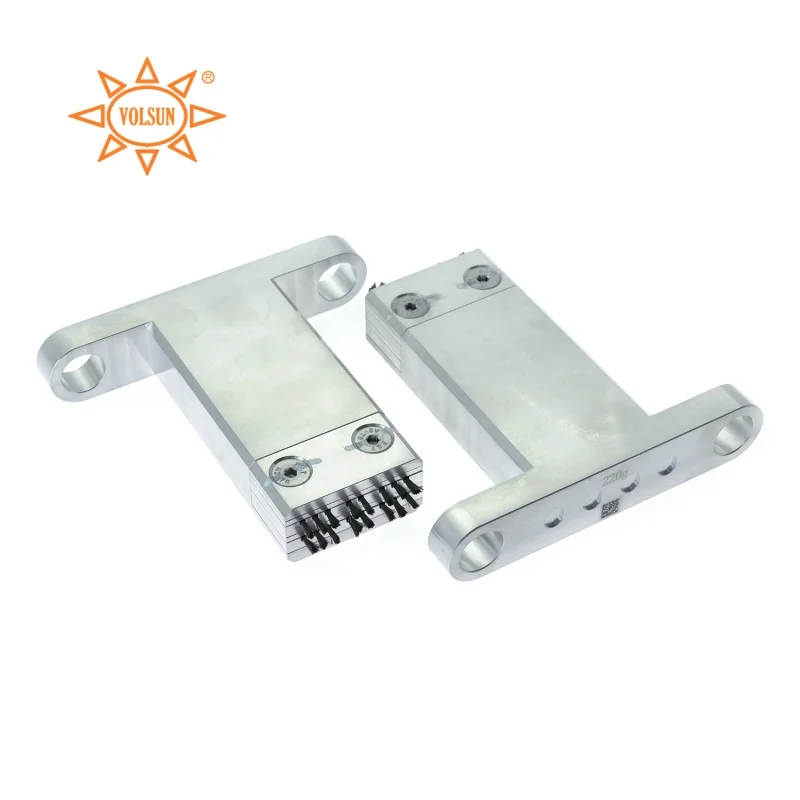

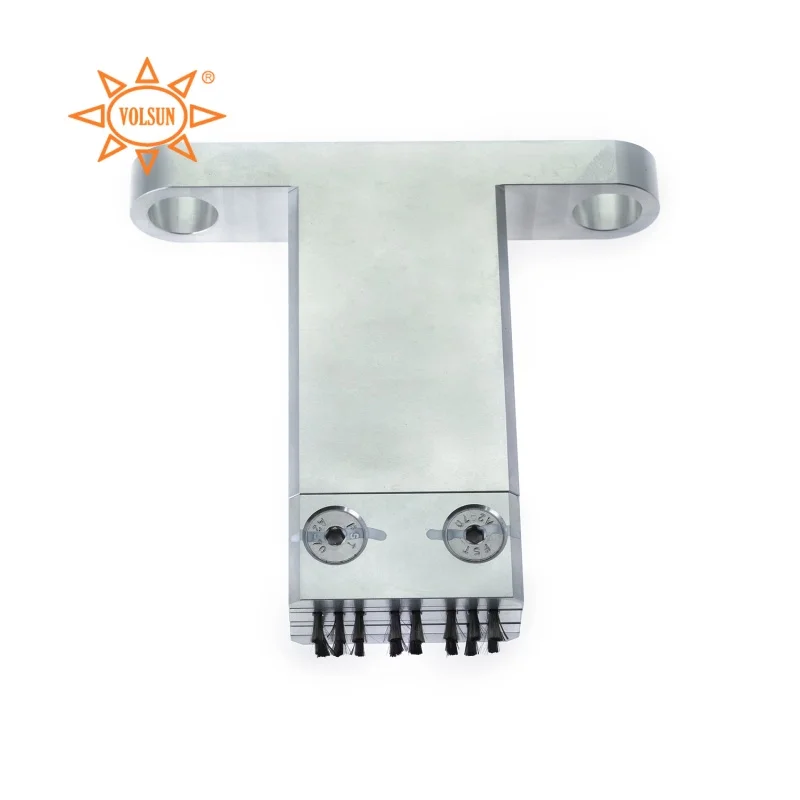

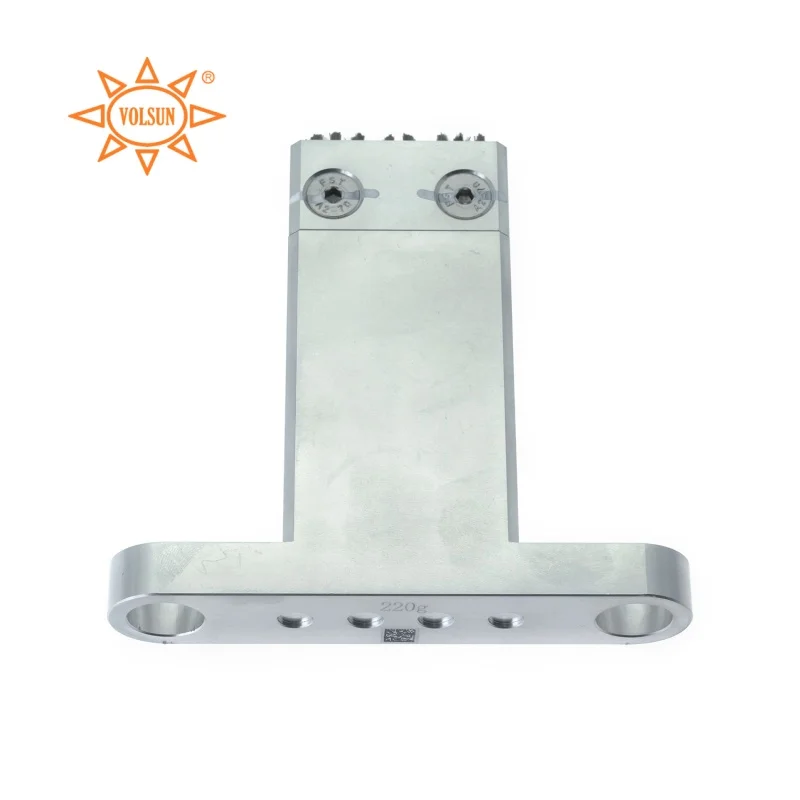

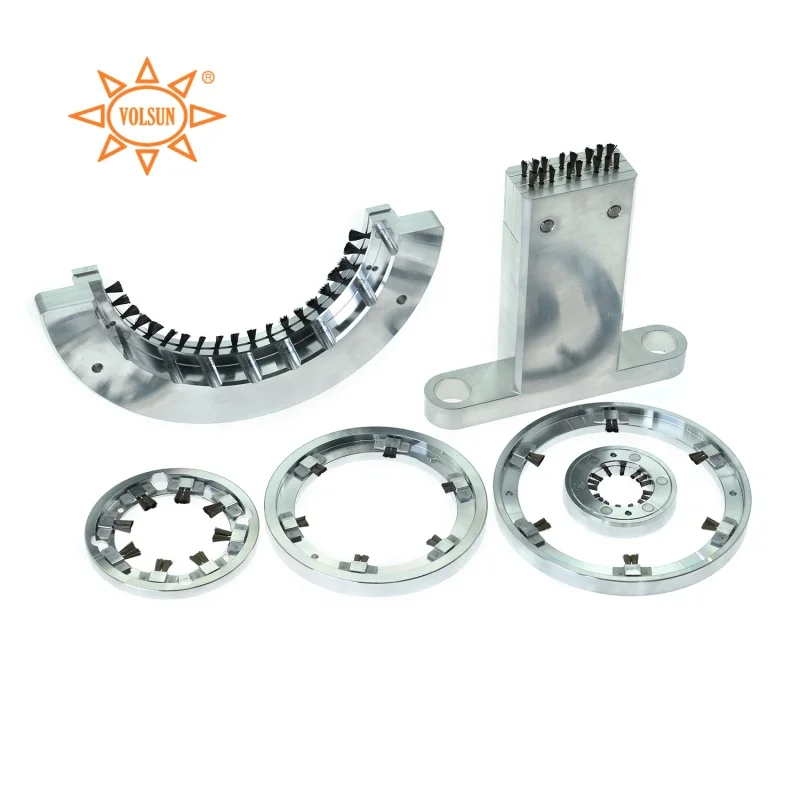

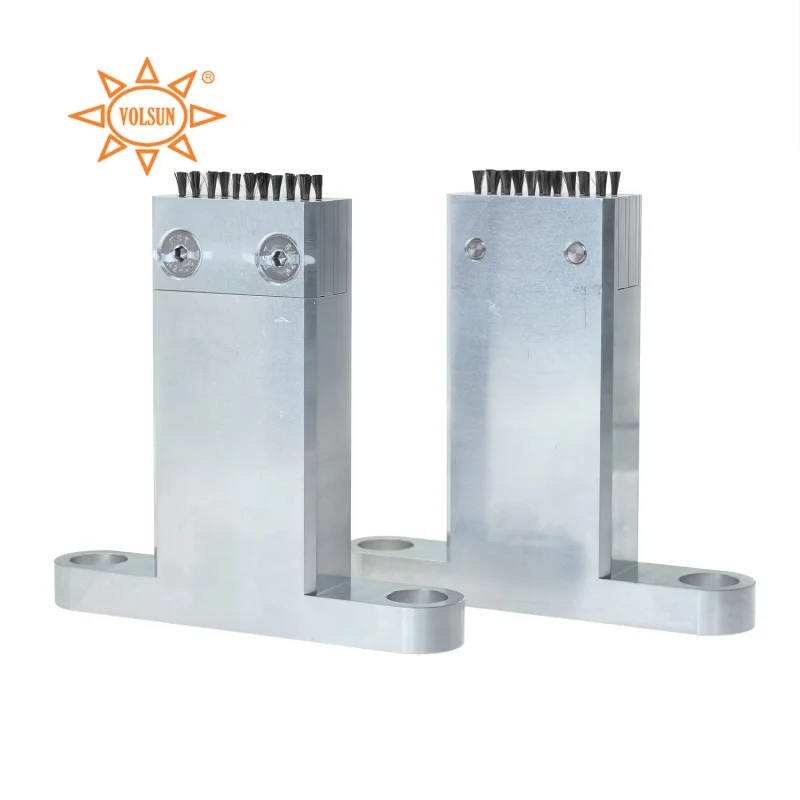

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements, Harsh Environment Resilience: Temperature Range: Operates reliably from -40°C to 210°C. Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing. Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Shaft Grounding Ring for Wind Turbine Shaft Current protection, a robust and reliable solution engineered to address the persistent challenge of wind turbine shaft current and its detrimental impact on turbine bearings. Designed for modern renewable energy installations, this shaft grounding ring enables optimal grounding solutions for renewables by offering effective dissipation of stray electrical currents. By integrating Volsun’s shaft grounding ring into wind turbine drivetrains, operators can significantly reduce bearing damage, decrease downtime, and extend the operational life of critical rotating components

Shaft grounding ring technology targets the core problem of shaft currents that develop in wind turbine generator systems. When inverter-driven motors and generators operate, they can generate capacitive and conductive leakage currents that travel along the rotor shaft. Uncontrolled wind turbine shaft current can discharge through bearings, producing electrical erosion known as fluting or white etching cracks, leading to premature turbine bearing failure. Volsun’s shaft grounding ring intercepts and redirects wind turbine shaft current away from sensitive bearings, providing a low-impedance path to ground. This turbine bearing protection capability is central to maintaining turbine reliability and reducing maintenance costs

The Volsun shaft grounding ring is designed with durable contact elements and highly conductive materials to ensure a long service life even in harsh offshore and onshore environments. The ring’s contact architecture maintains a stable electrical connection to the shaft under varying loads and rotational speeds, efficiently shunting shaft current to the grounding point. By delivering targeted grounding solutions for renewables, this shaft grounding ring helps operators mitigate shaft current induced bearing degradation and minimize unexpected repairs. The Volsun assembly is compact, easy to install, and compatible with a wide range of turbine shaft diameters, supporting both retrofit projects and new-build turbines

Key features of the Volsun Shaft Grounding Ring for Wind Turbine Shaft Current protection include high-conductivity brush contacts, corrosion-resistant housings, and optimized pressure mechanisms that preserve consistent contact without excessive wear. This shaft grounding ring is engineered to offer excellent electrical performance with minimal frictional torque, ensuring that turbine efficiency and rotational dynamics remain unaffected. In addition to hardware resilience, Volsun provides engineering support to ensure the grounding ring is integrated effectively with existing turbine earthing systems. The result is a comprehensive turbine bearing protection strategy that complements other maintenance practices and monitoring systems

Applications for the Volsun shaft grounding ring extend across the renewable energy sector. Utility-scale wind farms, offshore platforms, distributed wind installations, and retrofits for aging fleets all benefit from effective mitigation of wind turbine shaft current. For operators focused on lifecycle cost reduction, installing a dedicated shaft grounding ring is a proactive investment that enhances asset reliability. In heavy-duty and high-power turbines where shaft currents are more pronounced, Volsun’s shaft grounding ring becomes a critical component of turbine bearing protection programs. By adopting these grounding solutions for renewables, owners and operators can improve mean time between failures, reduce bearing replacement frequency, and optimize turbine uptime

Innovations in the Volsun shaft grounding ring center on materials science and contact geometry. The brush contact materials are selected for high electrical conductivity and enhanced wear resistance to provide long-term performance in rotating applications. The ring’s internal geometry is optimized to maintain even contact pressure and reduce micro-movements that could affect wear rates. These design improvements directly address common failure modes associated with traditional grounding methods and make the Volsun shaft grounding ring a modern grounding solutions for renewables product. Additionally, Volsun continually refines contact materials and assembly tolerances to meet the evolving demands of higher power density turbines and increased grid-conversion electronics in modern wind farms

From a technical advantage standpoint, the Volsun shaft grounding ring for Wind Turbine Shaft Current protection provides a lower impedance path compared to many ad hoc grounding solutions. Lower impedance ensures that wind turbine shaft current is more efficiently diverted away from bearings and toward the earth reference point. The design also minimizes maintenance intervals due to durable construction and simple inspection procedures. Volsun’s shaft grounding ring integrates with condition monitoring systems to provide logged performance data, enabling predictive maintenance and confirming the efficacy of turbine bearing protection efforts. This feedback loop supports continuous improvement and offers operators measurable benefits from grounding solutions for renewables

Installation and serviceability are key considerations for wind farm operators. Volsun’s shaft grounding ring is designed for straightforward mounting on shaft housings with clear mechanical interfaces and electrical connections. Retrofit kits include adaptable clamping mechanisms and alignment aids to facilitate correct installation without extensive downtime. Once installed, the shaft grounding ring requires minimal periodic inspection and can be readily exchanged during scheduled maintenance if necessary. This combination of user-friendly installation and low lifecycle maintenance supports broad deployment across both new turbines and upgrades in legacy fleets, enhancing turbine bearing protection across the renewable energy sector

Safety and compliance are integral to Volsun’s product development. The shaft grounding ring meets relevant electrical safety and vibration standards, ensuring that the device performs reliably under operational stresses typical of wind turbines. By providing standardized documentation and testing protocols, Volsun helps customers demonstrate adherence to best practices for shaft current mitigation and turbine bearing protection. The availability of certified grounding solutions for renewables increases confidence among project stakeholders, insurers, and maintenance teams responsible for long-term asset performance

In summary, the Volsun Shaft Grounding Ring for Wind Turbine Shaft Current protection delivers a focused, high-performance approach to mitigating shaft currents and safeguarding turbine bearings. With durable contact systems, low impedance grounding paths, and a design optimized for renewable energy applications, this shaft grounding ring forms an essential element of comprehensive turbine bearing protection strategies. By choosing Volsun’s grounding solutions for renewables, operators gain a proven technology that reduces bearing wear, extends component life, and supports greater operational uptime—helping to secure a more reliable and cost-effective renewable power generation portfolio
