Low Impedance Shaft Grounding Ring for Wind Turbine Shaft Current protection

About Product

Highlight

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-DR series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, particularly in systems driven by Variable Frequency Drives VFDs
Best Practices for Electrical Bearing Protection:
Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings
360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact fiber structure that ensures stable electrical contact even at high rotational speeds up to 20,000 RPM
Economic and Operational BenefitsCost Efficiency

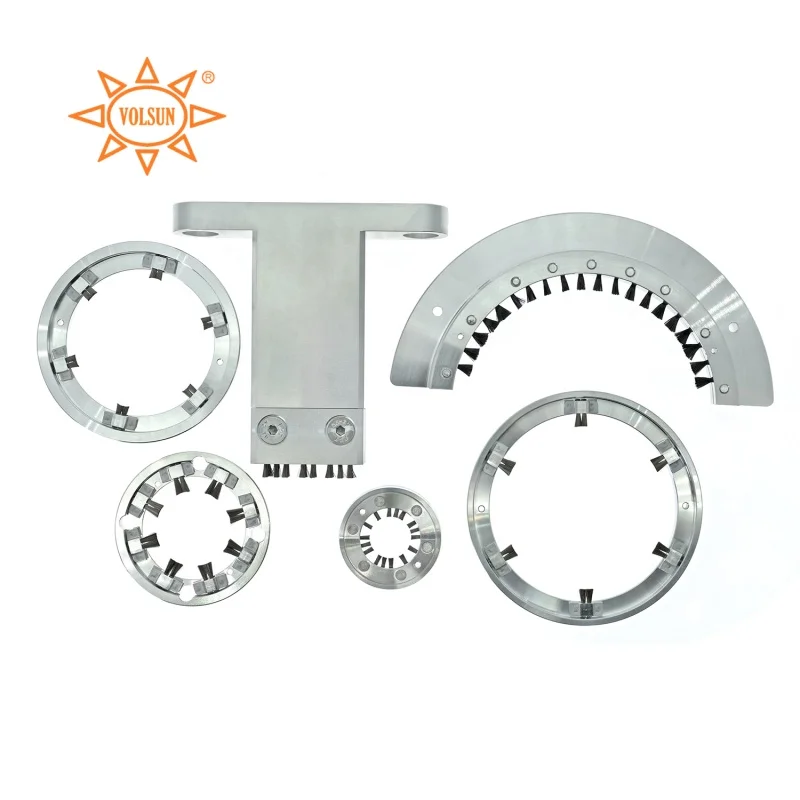

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements, Harsh Environment Resilience: Temperature Range: Operates reliably from -40°C to 210°C. Protection Rating: Integrated modules can reach IP68 rating, making them resistant to dust, oil mist, humidity, and high-pressure water washing. Signal Accuracy: In high-end manufacturing (like robotics), they help achieve nanometer-level signal transmission accuracy by eliminating electromagnetic interference EMI



About Us

Volsun, founded in 2006, is a high-tech enterprise specializing in polymer material solutions for insulation, waterproofing, thermal management, fire resistance, and conductivity etc. With over 25000 square meters of modern facilities in Suzhou and Yangzhou, certified to IATF 16949 and ISO 9001, we deliver high-quality, reliable products including cold shrink tubes, fiberglass sleeves, silicone tapes, waterproof wraps, thermal pads, potting compounds, and shaft grounding rings. Serving 6000+ customers in 88 countries, Volsun provides OEM/ODM solutions for communications, new energy vehicles, and the power industry - driven by innovation, trusted for protection.



FAQs

How long is the payment term

We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

What is the normal lead time for product orders

The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Can you tell us the monthly production capacity of your products

It depends on the model, we produce more than 1500 tons of rubber materials per month

What kind of certificates do you have

We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Low Impedance Shaft Grounding Ring for Wind Turbine Shaft Current protection, an engineered solution designed to deliver dependable shaft grounding ring performance, reduce bearing damage, and enable effective low impedance grounding for wind turbine shaft protection. This product advances wind turbine shaft protection standards by offering a durable shaft grounding ring that provides continuous shaft grounding ring contact and ensures consistent low impedance grounding across a wide range of operational conditions. By focusing on robust materials, optimized contact geometry, and simplified installation, Volsun’s shaft grounding ring addresses the persistent challenge of turbine shaft current mitigation in modern wind energy systems

Core features of the Volsun Low Impedance Shaft Grounding Ring for Wind Turbine Shaft Current protection begin with its precision-engineered contact assembly. The shaft grounding ring incorporates multiple redundant conductive fibers that maintain consistent electrical contact with the rotating shaft surface, reducing the contact resistance that can otherwise undermine low impedance grounding strategies. This low impedance grounding approach supports effective turbine shaft current mitigation by providing a reliable current path from the shaft to the ground. The shaft grounding ring’s design minimizes impedance under variable loads, temperature swings, and vibration, which is critical to preserving bearing integrity and ensuring long-term wind turbine shaft protection

Material selection is key to the shaft grounding ring’s performance. Volsun uses corrosion-resistant alloys and advanced conductive brush materials that prolong service intervals and reduce maintenance costs associated with shaft grounding ring assemblies. These materials are selected to withstand harsh offshore and onshore environments so that the shaft grounding ring delivers long-term low impedance grounding capabilities. When integrated with a comprehensive turbine shaft current mitigation plan, the Volsun shaft grounding ring reduces stray currents and the risk of pitting and fluting in bearings, enhancing system reliability and lowering lifecycle costs

Installation and retrofit versatility are critical for wind farm operators seeking effective wind turbine shaft protection without extended downtime. Volsun’s shaft grounding ring supports straightforward mounting options and adjustable housings to fit a variety of generator and drivetrain configurations. The low impedance grounding topology simplifies electrical routing and provides predictable performance across operating speeds. For retrofit projects focused on turbine shaft current mitigation, the shaft grounding ring’s compact form factor and modular brush elements enable fast replacements and quick maintenance cycles, improving operability for maintenance teams and minimizing turbine downtime

Beyond simple contact quality, the Volsun shaft grounding ring integrates advanced conductive path management to preserve low impedance grounding under transient electrical conditions. The ring’s multi-point contact system spreads the shaft current across multiple brush elements, preventing localized overheating and erosion. This distributed contact approach enhances turbine shaft current mitigation by lowering point contact stress and extending overall assembly life. In addition, the shaft grounding ring’s low impedance grounding function helps divert harmful bearing currents away from sensitive mechanical interfaces, preserving the integrity of bearings and related drivetrain components

Operational monitoring and diagnostics play a central role in modern wind turbine shaft protection. The Volsun Low Impedance Shaft Grounding Ring incorporates optional sensing features that enable operators to monitor contact health and grounding effectiveness in real time. These diagnostic functions support predictive maintenance strategies by indicating when brush elements require replacement or adjustment to maintain optimal low impedance grounding. Integrating data from the shaft grounding ring with turbine control systems allows for informed decisions related to turbine shaft current mitigation measures, improving maintenance scheduling and reducing the risk of unexpected failures

The shaft grounding ring’s engineering also emphasizes electromagnetic compatibility and minimal impact on generator performance. By providing a robust low impedance grounding path, the Volsun shaft grounding ring mitigates the generation of shaft currents that can otherwise cause electromagnetic interference and accelerate mechanical wear. This focus on turbine shaft current mitigation contributes to quieter operation, reduced vibration, and improved overall drivetrain efficiency. The grounding ring is designed to operate with minimal torque interference, preserving the mechanical balance of the rotor assembly while maintaining high-quality electrical contact

When assessing total cost of ownership for wind park assets, operators must consider the savings associated with reduced bearing replacement, fewer generator overhauls, and less frequent unscheduled maintenance. The Volsun shaft grounding ring reduces downtime and extends bearing life through effective low impedance grounding and proven turbine shaft current mitigation. By combining high-quality materials, precision contact engineering, and monitoring capabilities, the shaft grounding ring supports a proactive maintenance model that reduces long-term operational costs and enhances energy production consistency

Safety and compliance are also central to Volsun’s design philosophy. The Low Impedance Shaft Grounding Ring for Wind Turbine Shaft Current protection is built to meet stringent industry standards for electrical safety and environmental durability. Proper low impedance grounding is essential not only for component life but also for protecting personnel and equipment from electrical anomalies associated with shaft currents. Volsun’s shaft grounding ring undergoes rigorous testing to ensure reliable performance under extreme conditions, delivering trusted wind turbine shaft protection to operators globally

From small distributed installations to multi-megawatt offshore farms, the Volsun shaft grounding ring adapts to a wide range of turbine sizes and architectures. Its scalable design supports different shaft diameters, rotational speeds, and enclosure constraints, making it a flexible candidate for operators focused on enhancing turbine shaft current mitigation across diverse fleets. When deployed as part of a comprehensive low impedance grounding strategy, the shaft grounding ring improves drivetrain resilience and supports long-term, predictable energy generation

In summary, Volsun’s Low Impedance Shaft Grounding Ring for Wind Turbine Shaft Current protection is a purpose-built solution that combines durable materials, optimized contact design, and monitoring options to deliver dependable shaft grounding ring performance. It enables effective low impedance grounding and robust turbine shaft current mitigation, reducing bearing damage and maintenance demands while enhancing operational reliability. For wind turbine operators seeking a practical and scalable approach to shaft current management, the Volsun shaft grounding ring provides a proven pathway to improved system longevity and reduced lifecycle costs
