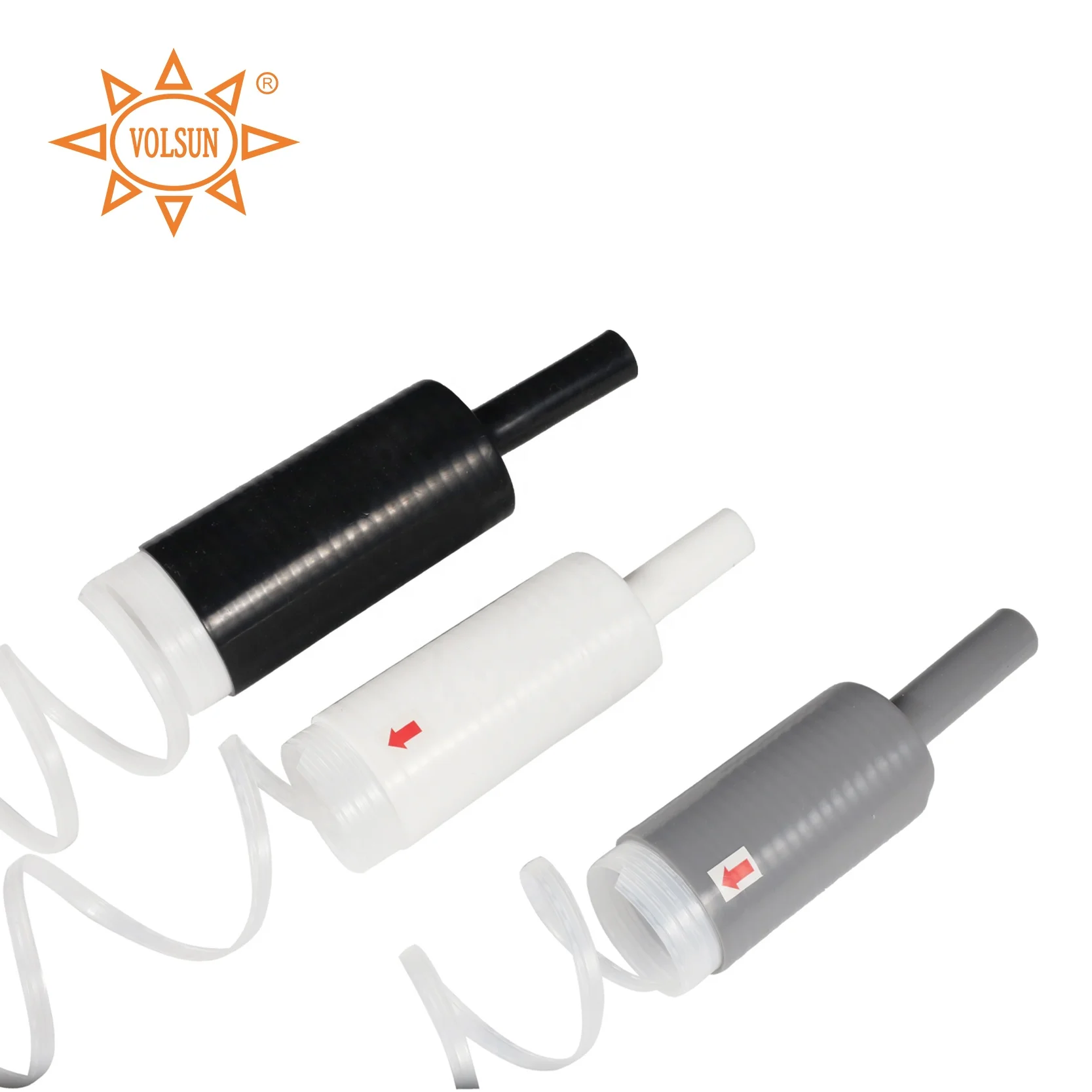

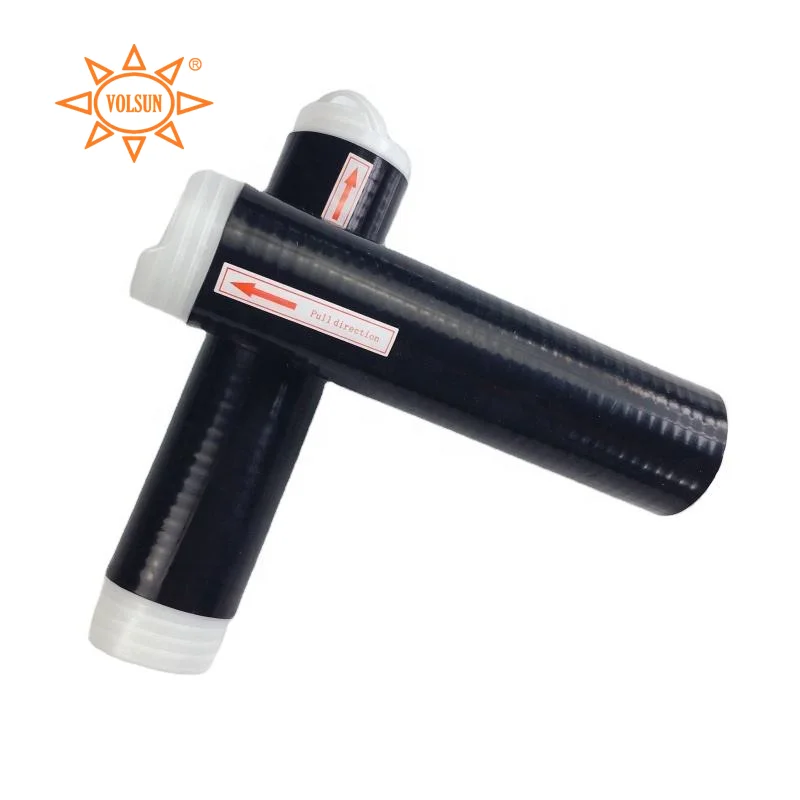

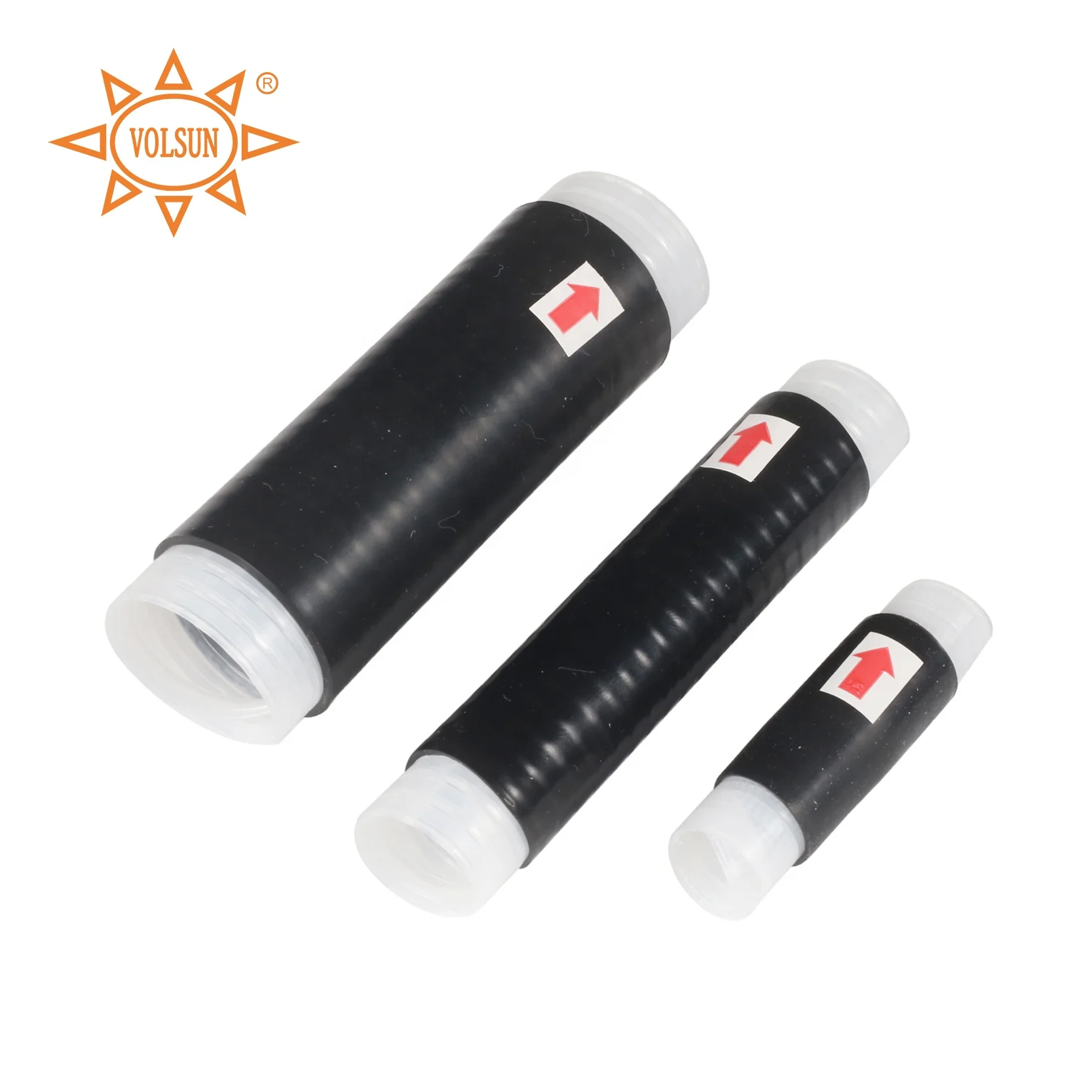

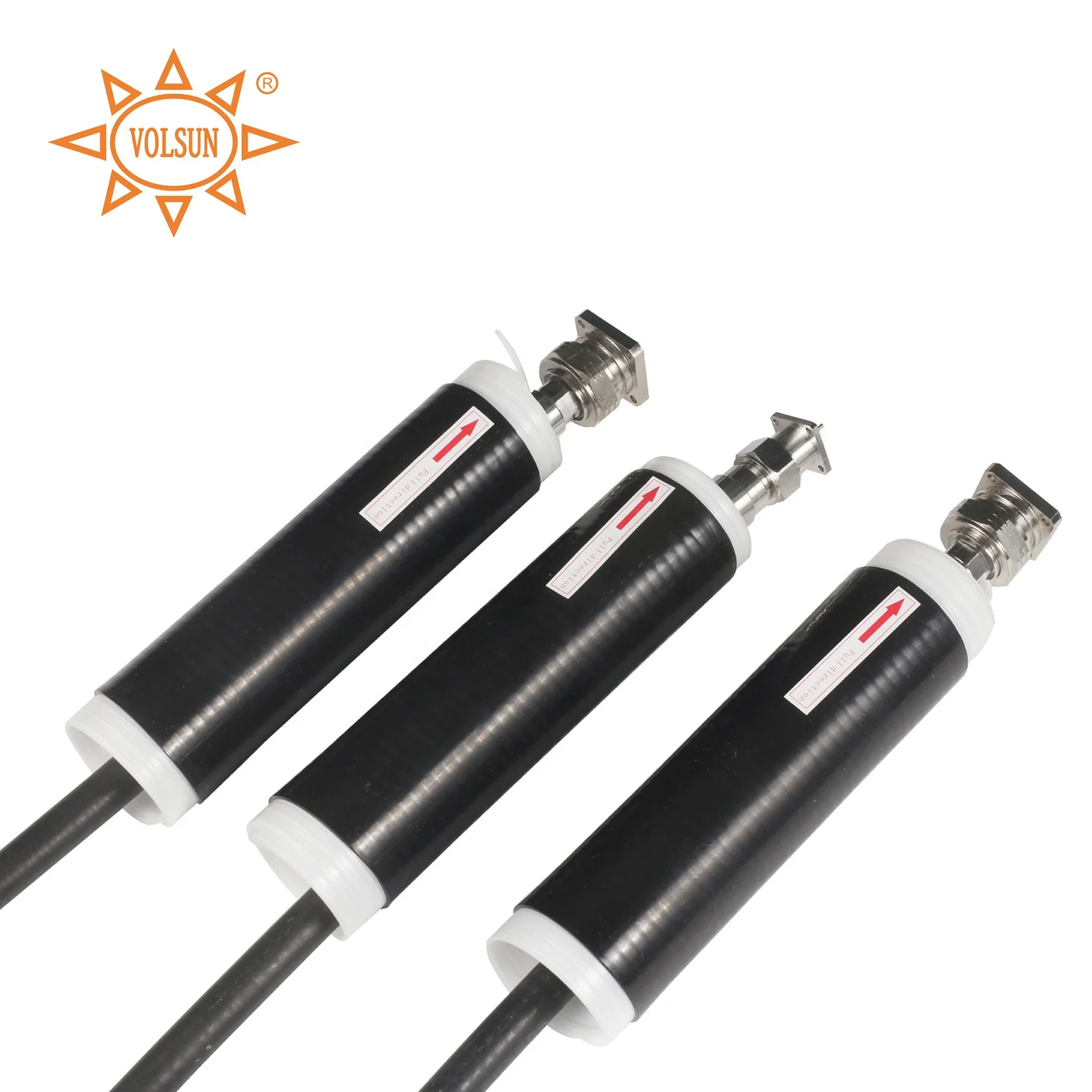

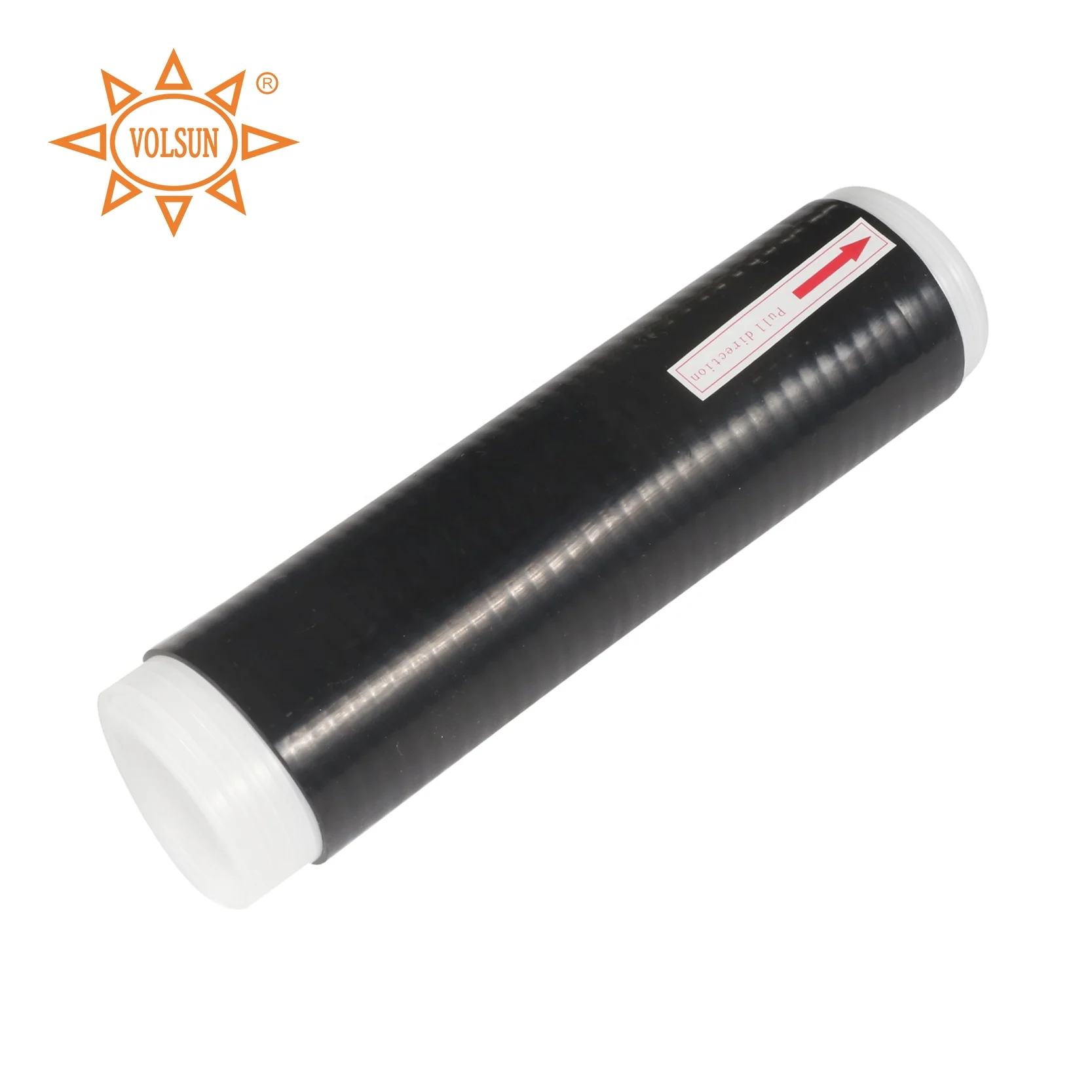

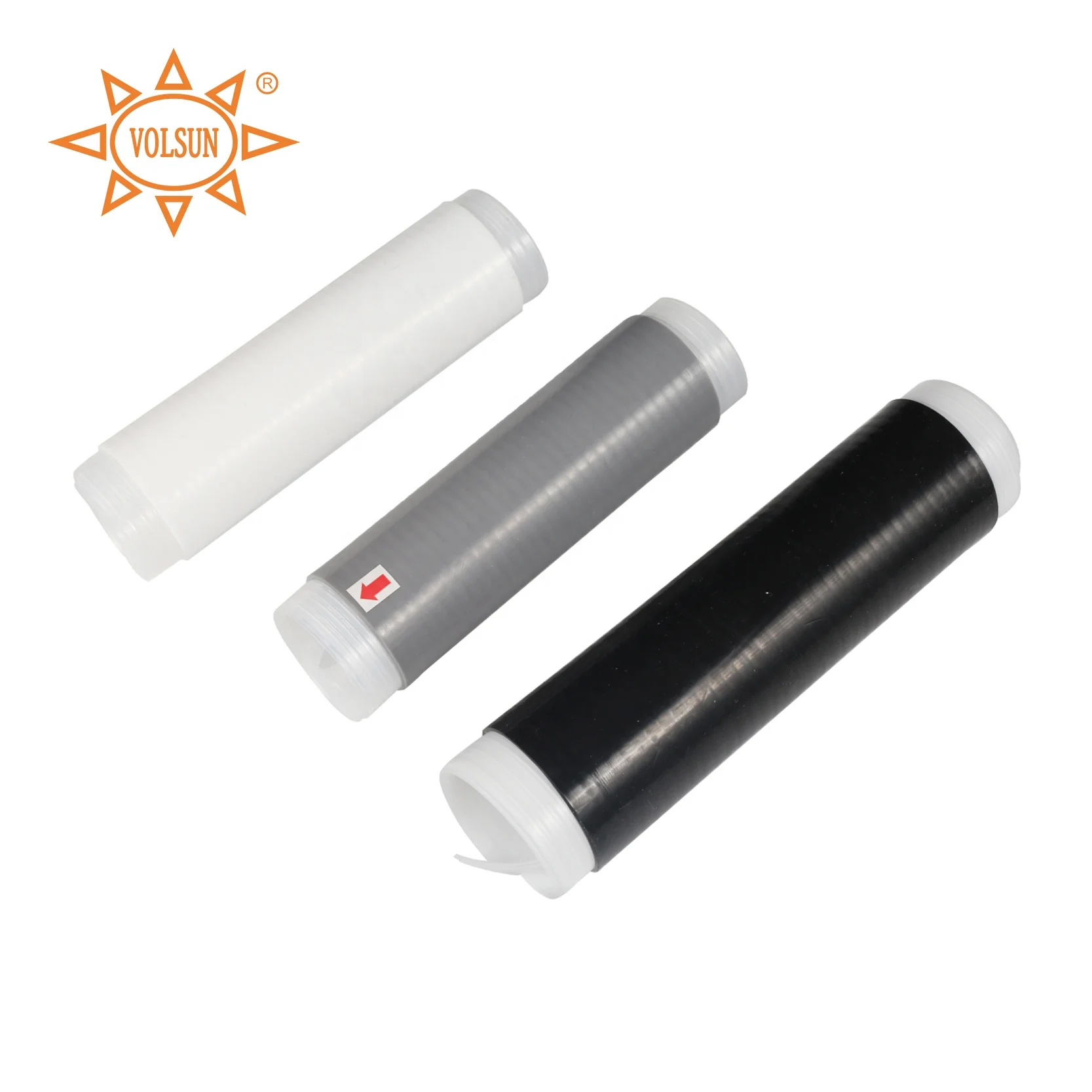

IP68 KC97 Cold Shrink Tube Multiple Sizes Silicone Rubber Wrap for Low Voltage Cable Protection Cold Shrink Seal

Product Description

cable accessories RFS cable cold shrink tube IP68

RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections

Support customization, ODM & OEM available

Features:

1. Operating temperature:-60°C~200°C
2. Waterproof and Sealing Class: IP68
3. Shrink Ratio :5:1
4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance
5. Simple installation
6. Standardcolor:Black white, grey, etc

Click chat now to contact us for free samples！

VR

Technical Performance

Properties	Typical Data	Test Method
Shore Hardness	40±5A	GB/T 531-2008
Tensile Strength	≥9.0MPa	GB/T 528-2009
100% Stress at Definite Elongation	≤1.2MPa	GB/T 528-2009
200% Stress at Definite Elongation	≤2.0MPa	GB/T 528-2009
Elongation at Break	＞800%	GB/T 528-2009
Tear Strength	≥35kN/m	GB/T 529-2008

Dimensions

Size	Inner Diameter mm	Min Cable Outer Diameter mm	Max Cable Outer Diameter mm	Full Recovered Length mm
VS15-2	15	5	13	50
VS28-6	28	7.0	25.0	150
VS40-5.5	40	11.0	33.0	140
VS45-7	45	13.5	39.0	178
VS60-9	60	20.5	51.0	230
VS70-8	70	25.0	63.0	203

Size is available to customize

Company Show

Suzhou Volsun Electronics Technology Co., Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 18 years
Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc
Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication, Automobile, Power industry etc

Certifications

Quality Assurance

Our management and employees are committed to providing the highest quality products and services. This ongoing commitment is recognized through ISO9001, ISO14001, ISO45001, IATF16949, UL, ROHS, and REACH certifications
We employ rigorous quality assurance standards to guarantee our customers the highest quality standards
We also have the ability to be your just-in-time supplier. This helps you keep your production lines running and provides better cash flow management by eliminating inventory requirements
Because every manufacturer has different needs and challenges to overcome, we are committed to providing exceptional service to each of our customers. We will work with you to provide the best solution to meet your needs

Abroad Exhibition

Packing & Delivery

Trade terms	FOB, EXW, CIF, DDU, DDP, CFR
Payment terms	T/T, L/C, Negotiable
Supply capability	1,000,000 pieces per month
Lead time	Usually 2-3 working days
Shipment	Express, Air, Sea
Port	Shanghai, Ningbo, Shenzhen
Sample availability	Yes
Sample time	Usually 1-2 days
Packaging	Normal: Plastic bag & Carton & Pallet Special: Customized packing

FAQ

Q 1. How long is the payment term
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

Q 2. What is the normal lead time for product orders
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

Q 3. What is your standard packaging
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Q 4. Can you tell us the monthly production capacity of your products
A: It depends on the model, we produce more than 1500 tons of rubber materials per month

Q 5. What kind of certificates do you have
A1: We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified
A2: We have various rubber compounds approved by UL, ROHS and REACH

Q6: How to check the quality of bulk order
A1: We provide pre-production samples to all customers before mass production if needed
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc

Q 7: Can you provide customized service
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

Volsun presents the IP68 KC97 Cold Shrink Tube Multiple Sizes Silicone Rubber Wrap for Low Voltage Cable Protection Cold Shrink Seal, a robust and reliable solution engineered for demanding electrical environments. This cold shrink tube is crafted to deliver superior sealing and insulation performance while ensuring simple, rapid installation and long-term durability. Designed for a wide range of low voltage cable protection needs, the Volsun IP68 cable seal provides exceptional protection against moisture, dust, chemicals, and mechanical stress. The silicone rubber wrap composition and advanced cold shrink design combine to create a product that simplifies field operations while delivering proven performance in critical applications

The KC97 cold shrink tube is manufactured from high-performance silicone rubber wrap materials that offer excellent electrical insulation, thermal stability, and weather resistance. The silicone rubber wrap exhibits outstanding flexibility and elasticity, allowing the cold shrink tube to conform tightly to cable shapes and terminations after installation. This ability to form a tight, resilient barrier is central to effective low voltage cable protection. The cold shrink tube design eliminates the need for heat tools or complex shrink processes, relying instead on controlled recovery from a pre-stretched state. The installer simply removes supporting core elements, allowing the silicone rubber wrap to recover and form a pressure-tight IP68 cable seal around cable joints, splices, and terminations

Volsun’s IP68 KC97 Cold Shrink Tube offers multiple sizes to accommodate a broad spectrum of cable diameters and configurations. Multiple sizes mean simplified inventory management, faster installation times, and reduced risk of mismatched components in the field. Each cold shrink tube includes tailored sealing features and internal profiles to ensure a secure fit and optimal performance for specific low voltage cable protection scenarios. Whether used for single-core or multi-core cables, round or irregular geometries, the silicone rubber wrap conforms reliably to provide a long-lasting protective layer that resists environmental ingress and mechanical wear

One of the major strengths of this cold shrink tube is its IP68 rating, which reflects industry-leading performance against water immersion and dust ingress. The IP68 cable seal ensures that joint and termination points remain impervious to moisture and contaminants even when submerged or exposed to heavy rain, flooding, or high-humidity environments. In utility, industrial, and outdoor applications, maintaining a robust IP68 cable seal is critical to system reliability and longevity. The Volsun cold shrink tube delivers this level of protection without the need for adhesives or secondary sealing compounds, thanks to the inherent sealing properties of the silicone rubber wrap and precision-engineered recovery behavior

Installation speed and simplicity are central to the practical advantages offered by the Volsun IP68 KC97 Cold Shrink Tube. The silicone rubber wrap arrives pre-expanded over a removable support core, and the installer positions the cold shrink tube over the prepared cable joint or termination. After aligning the component, the installer removes the core to initiate recovery; the silicone rubber wrap shrinks uniformly to create a tight, pressure-sealed interface that serves as a dependable low voltage cable protection barrier. This cold shrink tube approach reduces labor time, eliminates the need for hot-air or flame-based tools, and minimizes exposure risks for technicians. As a result, field crews experience fewer installation errors and faster deployment cycles, making the product ideal for maintenance, emergency repairs, and new installations

The KC97 cold shrink tube is designed to withstand a wide temperature range and resist aging under UV exposure, ozone, and chemical attack. The silicone rubber wrap formulation is optimized for long-term elasticity and dielectric stability, providing consistent electrical insulation over the service life of the installation. For low voltage cable protection, maintaining dielectric integrity and mechanical resilience is essential to avoid failures that could lead to outages, safety hazards, or costly repairs. Volsun’s silicone rubber wrap delivers these technical advantages while remaining lightweight and easy to handle in the field

Beyond environmental sealing, this cold shrink tube excels in mechanical protection and strain relief. The silicone rubber wrap’s flexibility allows it to absorb mechanical stresses and distribute them along the protected section, reducing the likelihood of damage from bending, tension, or impact. In applications such as underground splices, outdoor terminations, or industrial machinery connections, the cold shrink tube acts as a durable protective sleeve that enhances cable longevity and reduces maintenance frequency. The IP68 cable seal property further ensures that the protective action continues to perform under harsh conditions, providing operators with confidence in their cable networks

Volsun emphasizes quality control and standards compliance across the production of the KC97 cold shrink tube. Each cold shrink tube undergoes rigorous testing for recovery ratio, dielectric strength, tensile properties, environmental aging, and sealing performance to verify that the silicone rubber wrap meets stringent specifications. The IP68 cable seal certification reflects successful performance under established ingress protection testing, delivering measurable assurance for project designers, contractors, and asset owners. By choosing Volsun’s cold shrink tube, customers align with a product that combines tested reliability with the practical benefits of cold shrink technology and silicone rubber wrap material science

Applications for the Volsun IP68 KC97 Cold Shrink Tube span utilities, telecommunications, renewable energy systems, industrial controls, and marine or offshore installations where low voltage cable protection is essential. In utility networks, the cold shrink tube is used for service drop terminations, streetlight connections, and distribution network splices. Telecommunications installations benefit from quick, weatherproof seals at cable joints and enclosure entries. Renewable energy arrays use the silicone rubber wrap to protect low voltage strings and inverter connections from moisture and debris. Marine and offshore applications particularly value the IP68 cable seal capability for submerged or splash-prone environments

Volsun supports customers with technical documentation, installation guidance, and sizing recommendations to ensure the KC97 cold shrink tube is applied correctly for each low voltage cable protection requirement. Proper cable preparation, selection of the appropriate cold shrink tube size, and adherence to recommended installation steps are key to achieving optimum IP68 performance. Volsun’s product offering includes multiple sizes and accessory components to simplify matching solutions to field conditions and cable types

In summary, the Volsun IP68 KC97 Cold Shrink Tube Multiple Sizes Silicone Rubber Wrap for Low Voltage Cable Protection Cold Shrink Seal combines the convenience of cold shrink installation with the high-performance sealing and insulating properties of silicone rubber. Engineered for rapid deployment, durable environmental sealing, and reliable electrical insulation, this IP68 cable seal solution offers significant advantages for a wide array of low voltage applications. With multiple sizes, proven material performance, and a commitment to quality testing, the Volsun cold shrink tube is a practical, effective choice for technicians and system designers seeking dependable low voltage cable protection with the simplicity of cold shrink technology
