Insulation Waterproof Self-curing Protective Material Pad for Bare Conductor

Description

Introducing, the Volsun’s Insulation Waterproof Self-curing Protective Material Pad for Bare Conductor, a revolutionary solution for keeping your electrical cables safe and secure. This innovative product is designed to provide the ultimate protection for bare conductors, ensuring that they remain insulated and free from damage.



Made from high-quality materials, the Volsun’s Protective Material Pad is durable and long-lasting, making it the perfect choice for both indoor and outdoor use. The waterproof design ensures that your cables are protected from moisture and corrosion, while the self-curing properties allow the pad to conform to the shape of the conductor for a secure fit.



This protective material pad is incredibly easy to install, making it an ideal solution for both professionals and DIY enthusiasts. Simply wrap the pad around the bare conductor and secure it in place with the included fastening straps. The self-curing properties will then ensure that the pad forms a tight seal around the conductor, providing an extra layer of insulation and protection.



Not only does the Volsun’s Protective Material Pad provide excellent insulation and waterproofing properties, but it also offers superior resistance to UV rays and extreme temperatures. This means that you can trust this pad to keep your cables safe and secure, even in the harshest of environments.



Whether you're working on a home renovation project or repairing outdoor electrical cables, the Volsun’s Insulation Waterproof Self-curing Protective Material Pad for Bare Conductor is the perfect choice. With its durable construction, easy installation, and unbeatable protection, this pad will give you the peace of mind you need to get the job done safely and efficiently.



Invest in the Volsun’s Protective Material Pad today and experience the difference that quality insulation and protection can make for your electrical cables. Trust Volsun to provide you with the best products for all your electrical needs

Product Description


Self-curing insulating and waterproof protective packaging materials pad have excellent insulation and waterproof properties. They can be used for insulation and waterproof protection of irregularly shaped parts such as overhead line connection clamps, outlet splints and jumpers in distribution networks, and for the insulation and waterproofing of exposed metal parts in switch cabinets. Insulation protection, waterproof protection of equipment in 4G and 5G base station construction, such as special-shaped antennas, splitters, etc. During construction, you only need to use this product to pack the location to be treated tightly. The material itself will gradually solidify after contact with the air to form an insulating and waterproof layer. The operation is simple and suitable for quick repair operations. No heating or special tools are required. On-site operations can be based on actual conditions to get cut and shaped
Features:
* Standard colors: black, red, yellow, green
* Encounter water vapor curing in the air
* Outstanding UV aging resistance and reliable bonding
* The material is fine and uniform, with excellent insulation properties
* The material has excellent bonding performance and high waterproof performance
* Simple installation, no special training or special tools required, making working at heights easier.
* It does not harden at low temperatures and does not flow at high temperatures. It is suitable for all-weather construction and is suitable for both north and south

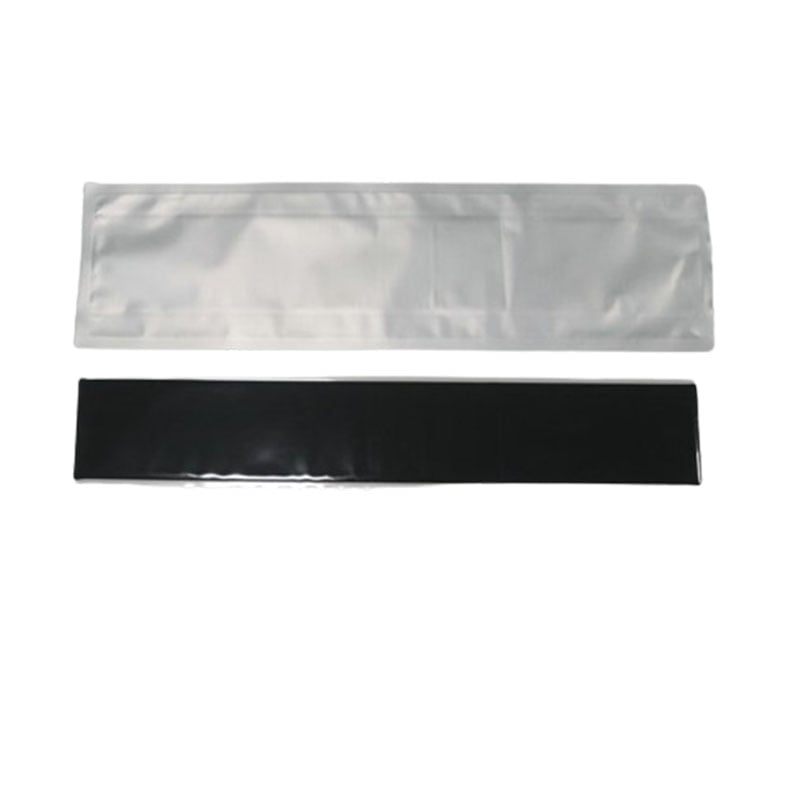

product insulation waterproof self curing protective material pad for bare conductor-13

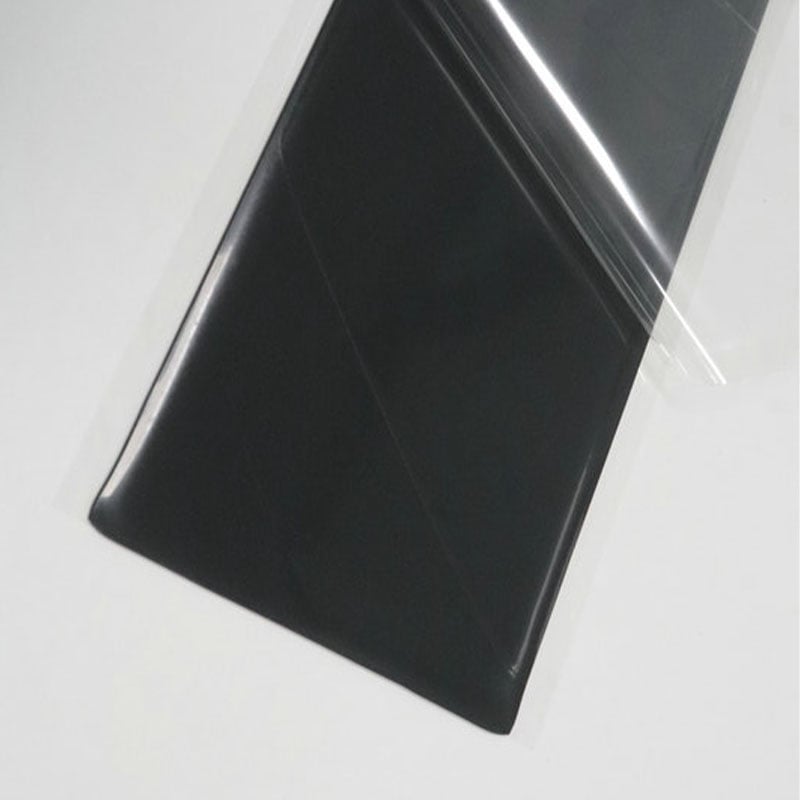

product insulation waterproof self curing protective material pad for bare conductor-14
product insulation waterproof self curing protective material pad for bare conductor-15
product insulation waterproof self curing protective material pad for bare conductor-16
Technical Performance
Item
Typical Value
Test Method


Before curing:


Appearance Smooth surface
Smooth surface, no bubbles, smooth surface when the isolation film is removed
/


Packaging
Vacuum packaging without air leakage
/


The required use time after unpacking
≤60min (<30°c)<>
/


Fully cured
7 days - 23°C, 50% humidity
/


After curing:


Flame retardant performance
V-0
GB/T 2408-2021


Volume Resistivity
1×1013Ω m
GB/T 31838.3-2019


Surface resistivity
5×1013 Ω
GB/T 31838.3-2019


Shore Hardness
35 - Shore A
GB/T 531.1-2008


Breakdown voltage
Breakdown voltage after curing at room temperature for 4h  ≥25kV
GB/T 1408.1-2006


Breakdown voltage
Sheet breakdown voltage (1.8±0.2mm thick, in transformer oil)   ≥30kV
GB/T 1408.1-2006

UV accelerated aging
Breakdown voltage after 1000h  ≥26kV
GB/T 1408.1-2006


Low temperature test (-20℃, 360h)
Appearance: No significant change in color, flexibility, etc. GB/T 1408.1-2006
GB/T 1408.1-2006



Breakdown voltage  ≥28kV
GB/T 2423.1-2008

High temperature test - 135°C,168h
Breakdown voltage ≥ 25kV
GB/T1408.1-2006


 Technical Performance after covering Bare Conductor Wire




Performance
Technical Requirements

Test Standards



Breakdown Voltage
≥30kV

GB/T 3048.8-2007



Water immersion pressure test
12kV, 4h, no breakdown

 GB/T 1408.1-2006



Protection class
IP68

GB/T 4208-2017



Dimensions
Specification
Width - mm
Thickness - mm
Length- mm
FST65251
90
1.8
600
FST65252
80
1.8
1000
FST65253
90
1.8
300
Size is available to customize

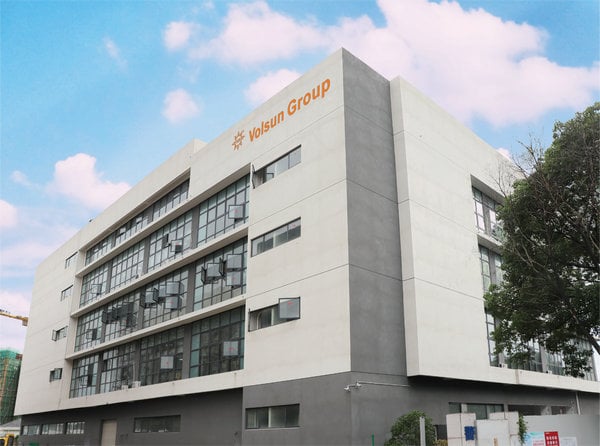

Company Show
Suzhou Volsun Electronics Technology Co., Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 17 years

Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications

Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication, Automobile, Power industry etc
product insulation waterproof self curing protective material pad for bare conductor-17

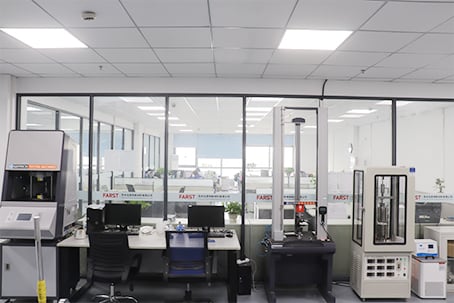

product insulation waterproof self curing protective material pad for bare conductor-18

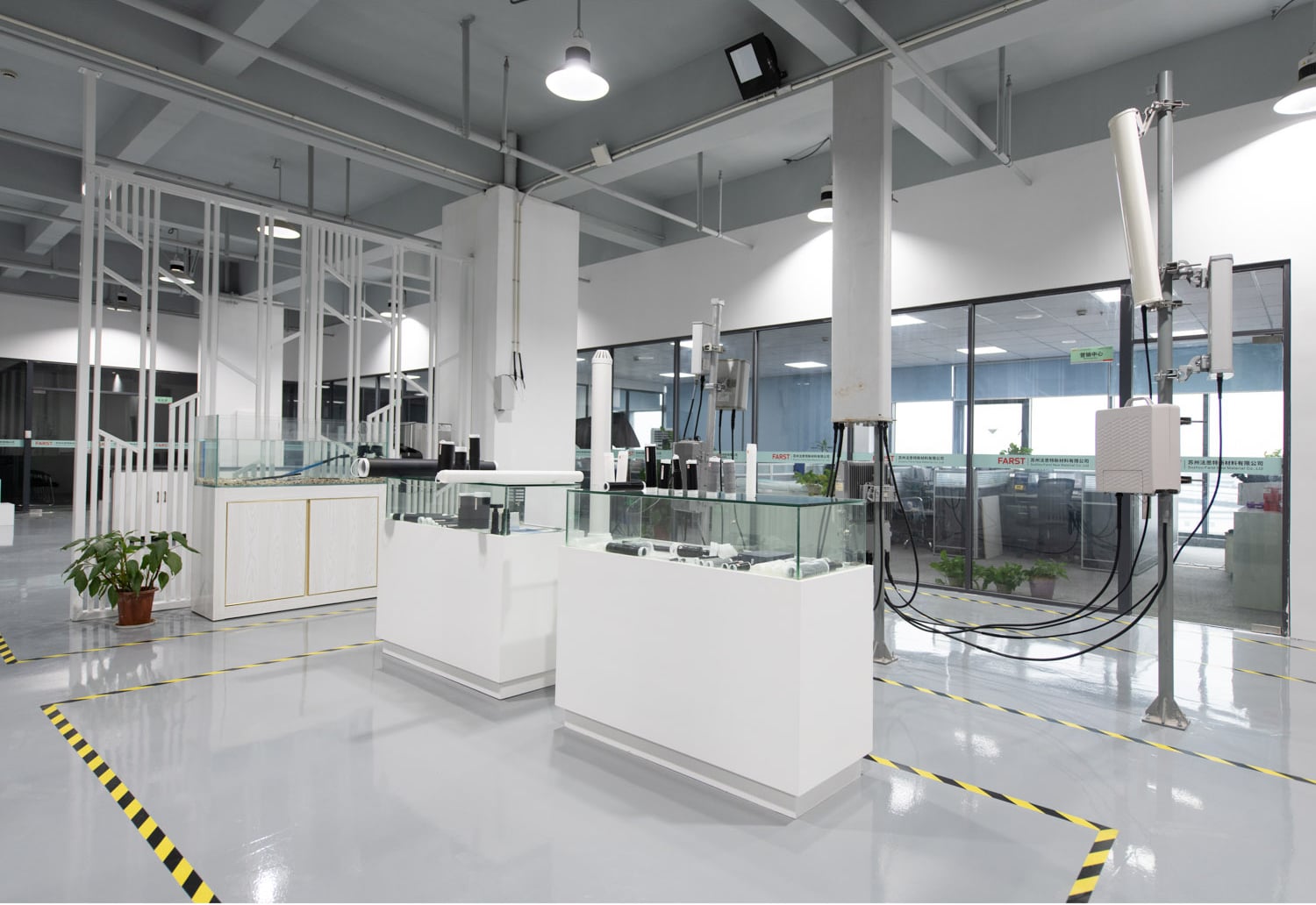

product insulation waterproof self curing protective material pad for bare conductor-19
product insulation waterproof self curing protective material pad for bare conductor-20
product insulation waterproof self curing protective material pad for bare conductor-21

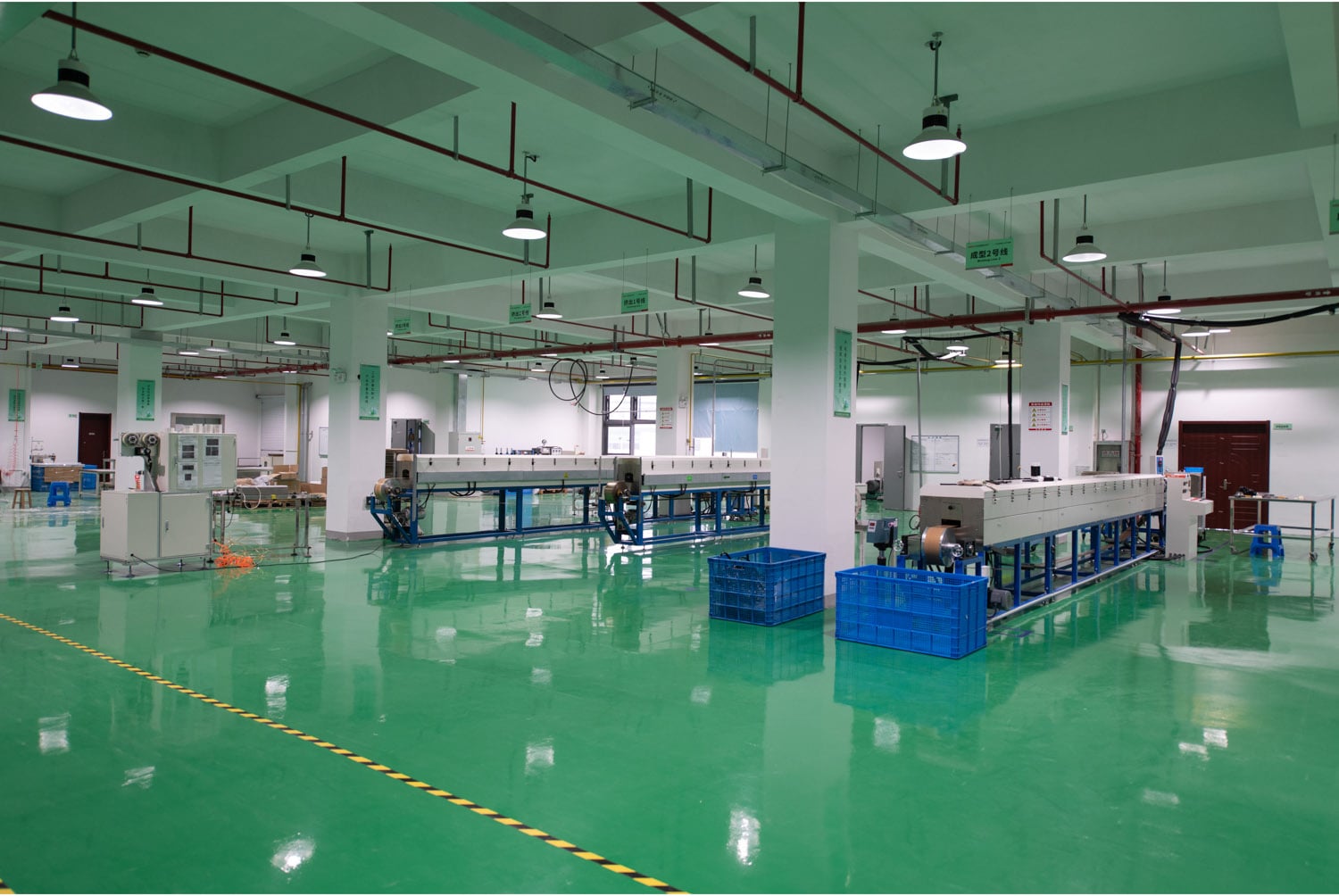

product insulation waterproof self curing protective material pad for bare conductor-22

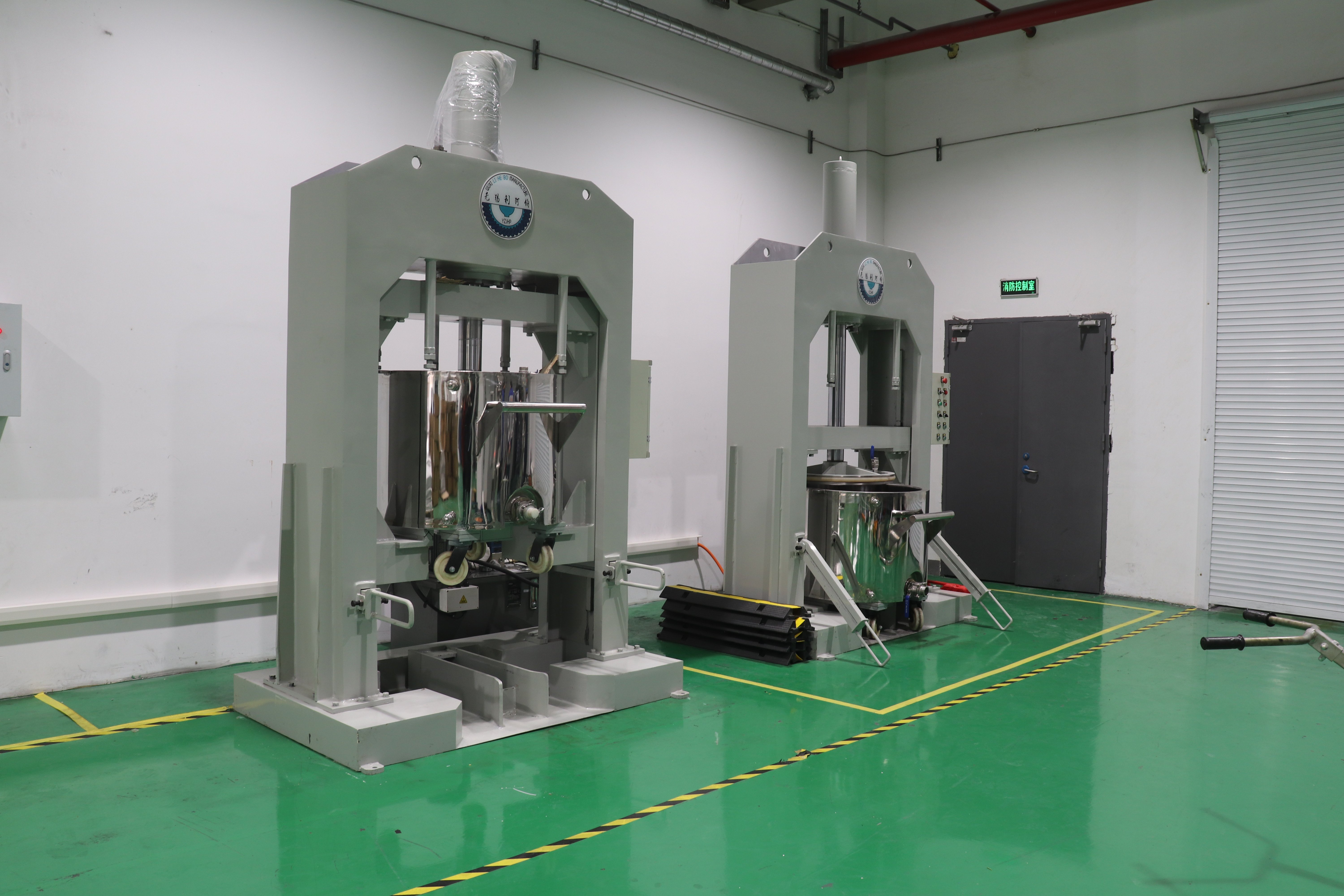

product insulation waterproof self curing protective material pad for bare conductor-23

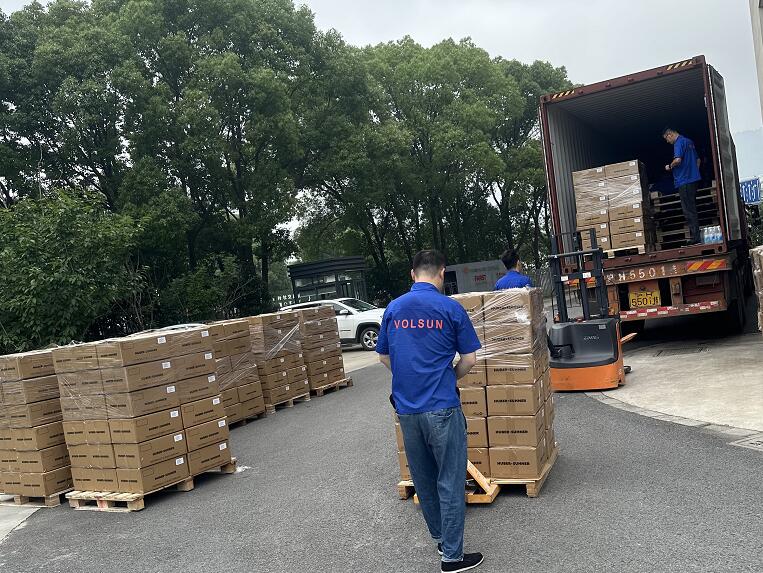

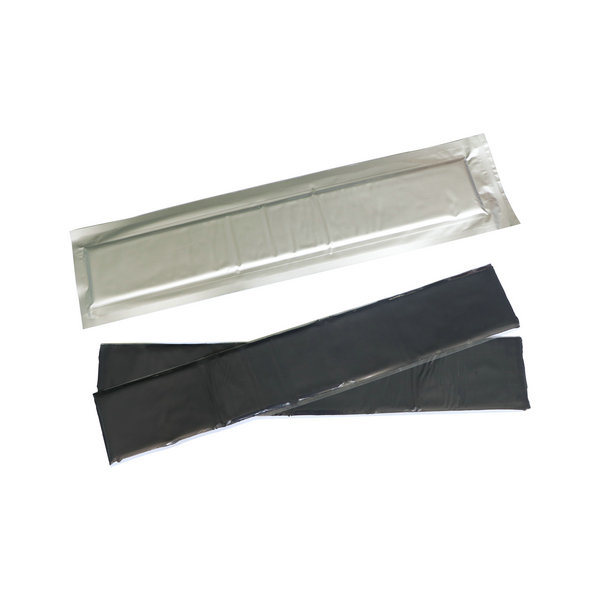

Packing & Delivery
product insulation waterproof self curing protective material pad for bare conductor-24
product insulation waterproof self curing protective material pad for bare conductor-25
product insulation waterproof self curing protective material pad for bare conductor-26
Trade terms
FOB, EXW, CIF, DDU, DDP, CFR
Payment terms
T/T, L/C, Negotiable
MOQ
100pcs
Supply capability
1,000,000 pcs per month
Lead time
usually 3-5 working days
Shipment
Express, Air, Sea
Port
Shanghai, Ningbo, Shenzhen
Sample availability
Yes
Sample time
usually 1-3 days
Packaging
Normal: Plastic bag & Carton & Pallet
Special: Customized packing
