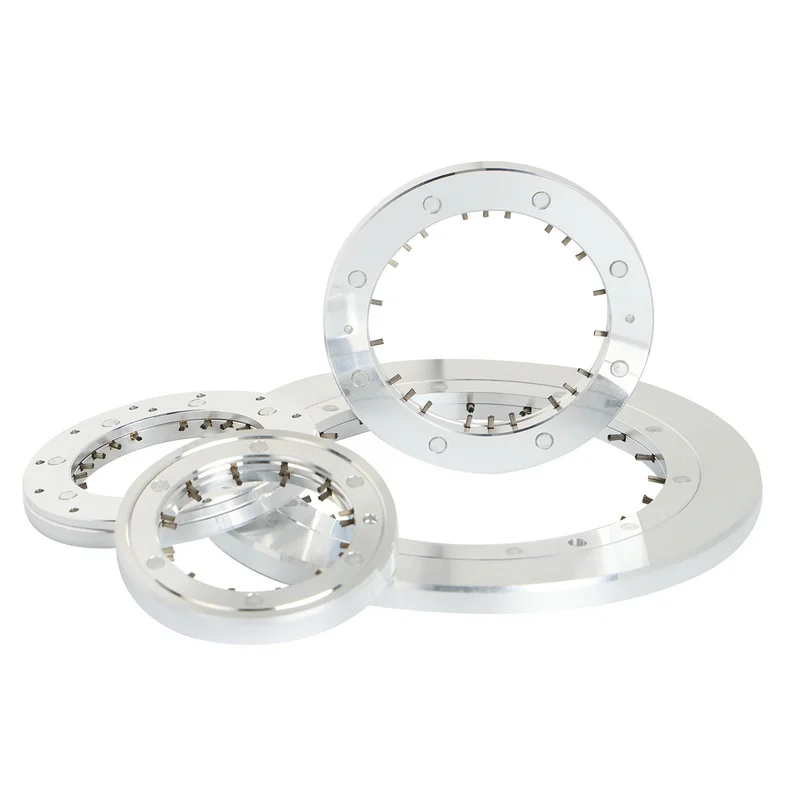

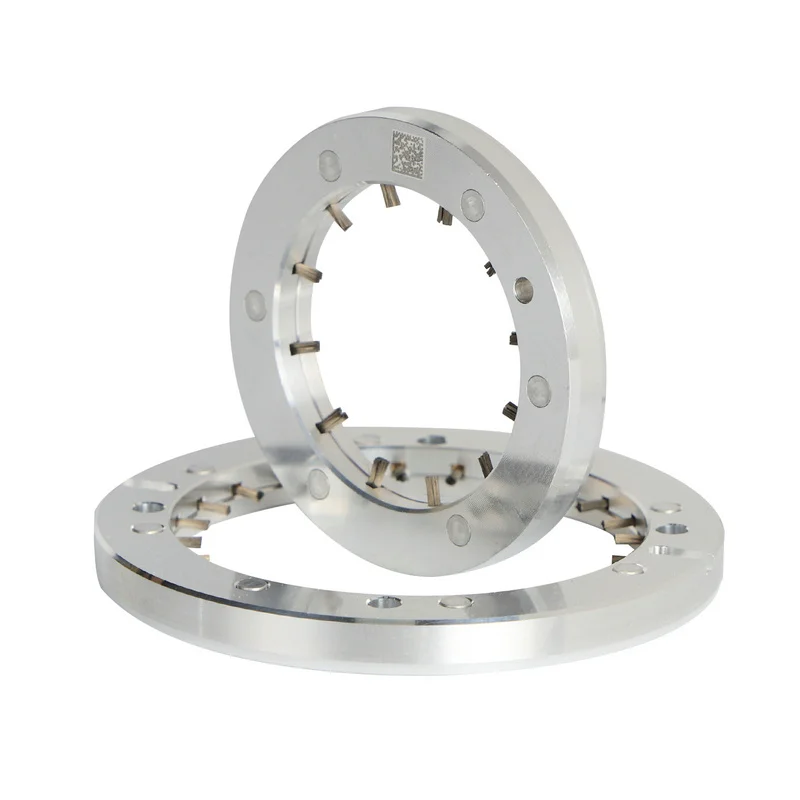

Factory Precision Customized Shaft Grounding Ring for Construction Machinery Rail Transportation and Wind Turbines

Introducing the Volsun Factory Precision Customized Shaft Grounding Ring, an essential component for construction machinery, rail transportation, and wind turbines. This grounding ring is designed with precision and customization in mind, ensuring optimal performance and safety for your equipment

Constructed in our state-of-the-art factory, the Volsun Shaft Grounding Ring is made with high-quality materials that are built to last. Designed to withstand the harsh demands of construction sites, rail tracks, and wind farms, this grounding ring provides reliable protection against electrical malfunctions and ensures smooth operation of your machinery

With its customizable features, the Volsun Shaft Grounding Ring can be tailored to fit your specific equipment requirements. Whether you need a larger diameter for heavy-duty machinery or a specific shape for unique applications, our team of experts can create a customized solution that meets your needs

Perfect for use in construction machinery, rail transportation, and wind turbines, the Volsun Shaft Grounding Ring is a versatile and reliable choice for grounding your equipment. It provides a secure connection between the shaft and the ground, preventing electrical damage and ensuring the safety of your workers and equipment

Easy to install and maintain, the Volsun Shaft Grounding Ring is a cost-effective solution that will help extend the lifespan of your machinery and reduce downtime. With its superior performance and durability, this grounding ring is a must-have for any construction, rail, or wind energy project

Trust Volsun to deliver high-quality, precision-engineered products that meet the demands of your industry. Our Factory Precision Customized Shaft Grounding Ring is the perfect choice for your construction machinery, rail transportation, and wind turbine applications. Upgrade your equipment with Volsun today and experience the difference in performance and safety

Product Overview

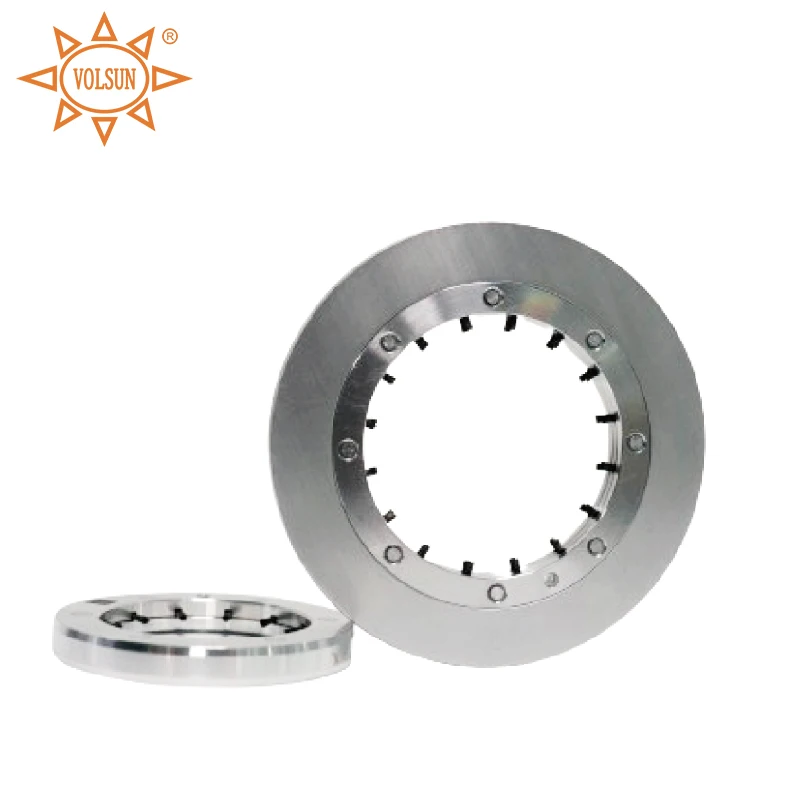

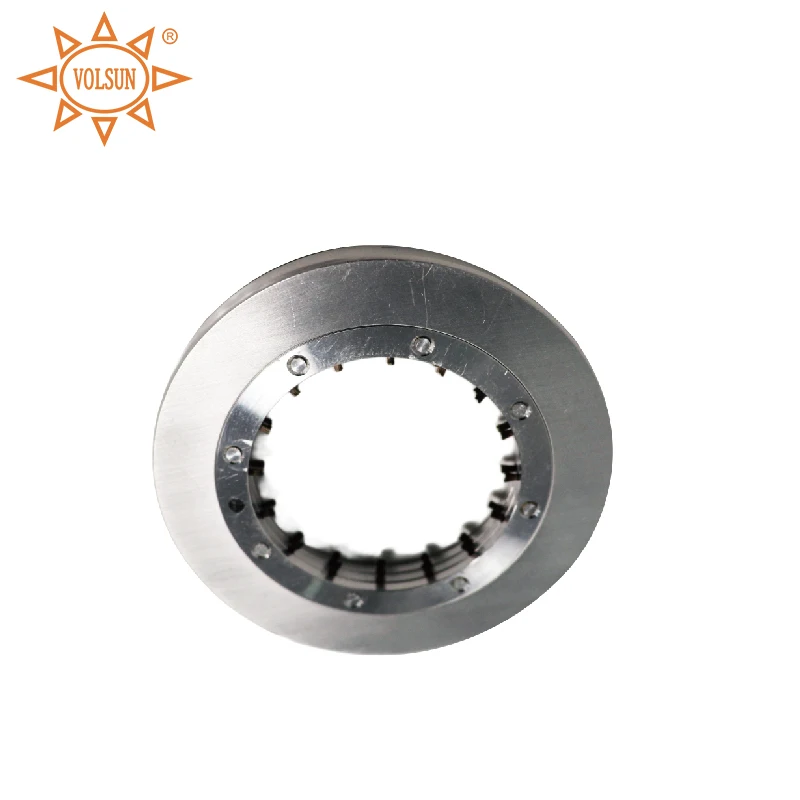

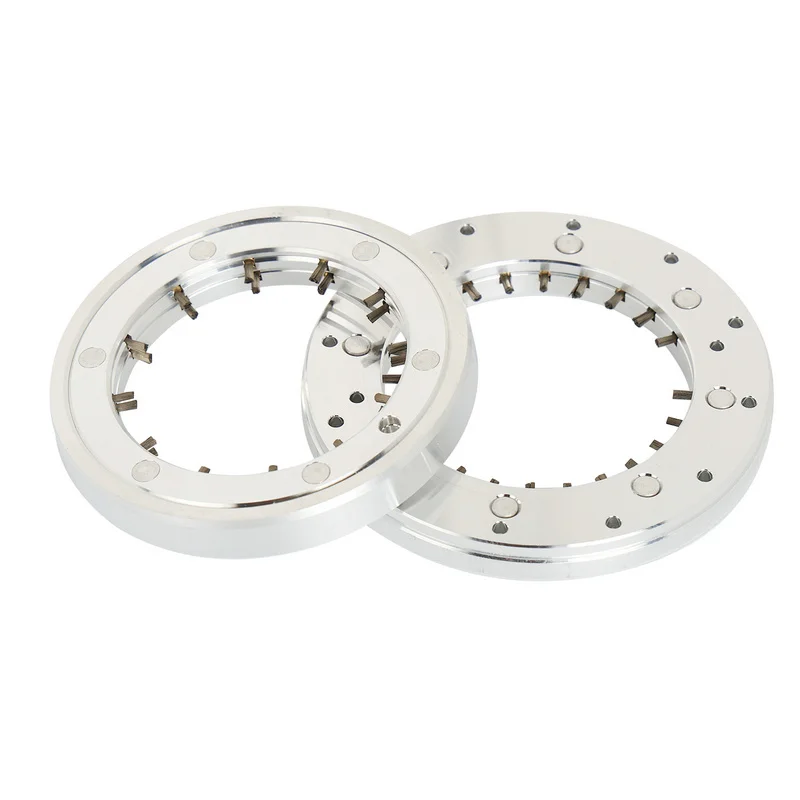

Volsun VS-RD Series Shaft Grounding Rings

Description
VS-RD series conductive rings solve the problem of motor shaft electro corrosion by bypass grounding. It is composed of conductive fibers, metal bodies, etc., and is used for electro corrosion protection of variable frequency motors and their coupled equipment. VS-RD series conductive rings can reduce the induced potential between the bearing and the grounded housing, effectively reduce the damages of electro corrosion caused by shaft current, protect motor bearings to ensure long-term and stable operation of the motor

Features

* Low resistance

* High temperature resistance

* Durable and wear-resistant

* Unique structure

* Environmentally friendly and non-toxic

* Size can be customized

PRODUCT SPECIFICATIONS

Item	Test Data	Test Standard
Static resistance	＜1Ω	/
Dynamic resistance	≤10Ω	/
Fiber pull-off force	≥100·30s	/
Salt spray test	No damage to fibers	/
Durability test Water cooling/Oil cooling	＜0.5mm/30Wkm ＜0.2mm/30Wkm	/
High temperature test	See enterprise standards	/
Low temperature test	See enterprise standards	/

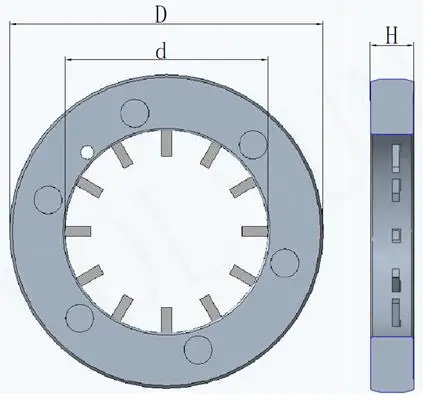

Structure

Dimensions

O. D mm	Matching Shaft Diameter mm	Height mm
30	10	≥7
35	17	≥7
38	13	≥7
40	18	≥7
47	25	≥7
50	25	≥7
52	26	≥7
58	39	≥7
60	40	≥7
62	36	≥7
66	41.5	≥7
70	40	≥7
72	43	≥7.5
78	54	≥7.5
85	59	≥7.5
92	70	≥7.5
108	80	≥7.5
128	79.5	≥7.5

Note：The other sizes and packing are available as request

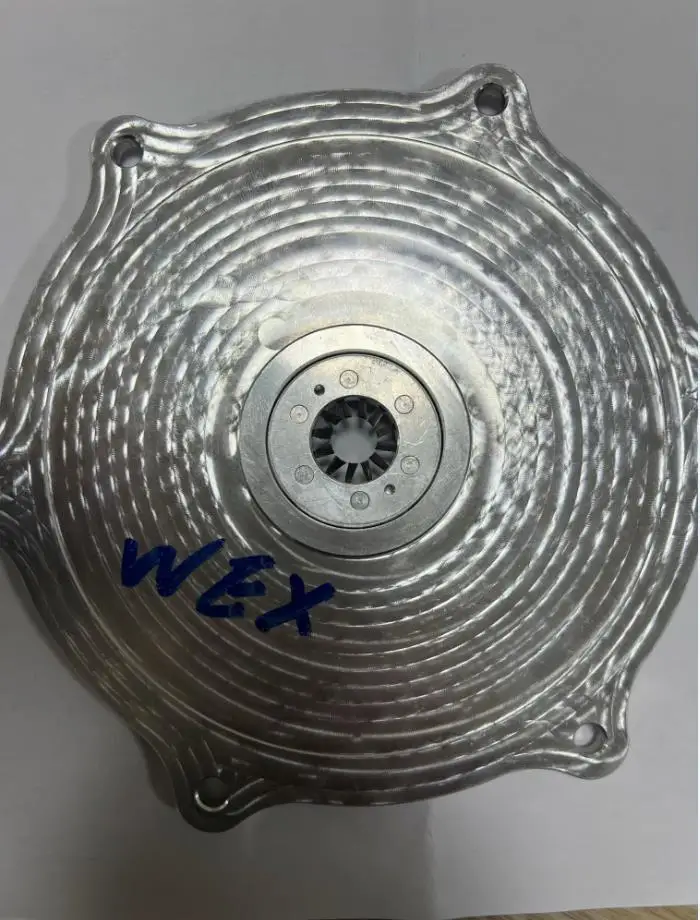

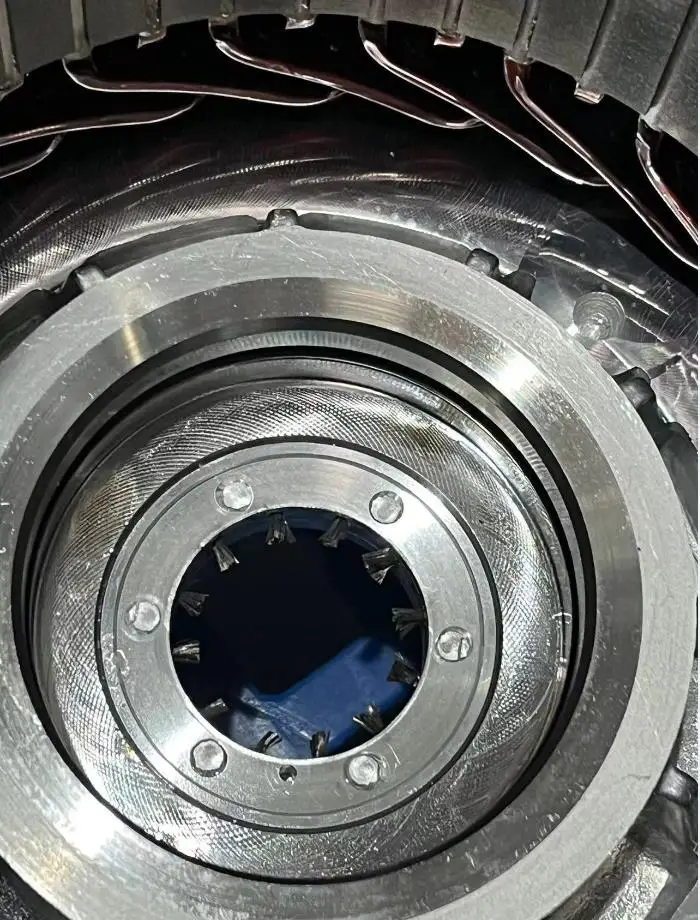

Application Pictures
