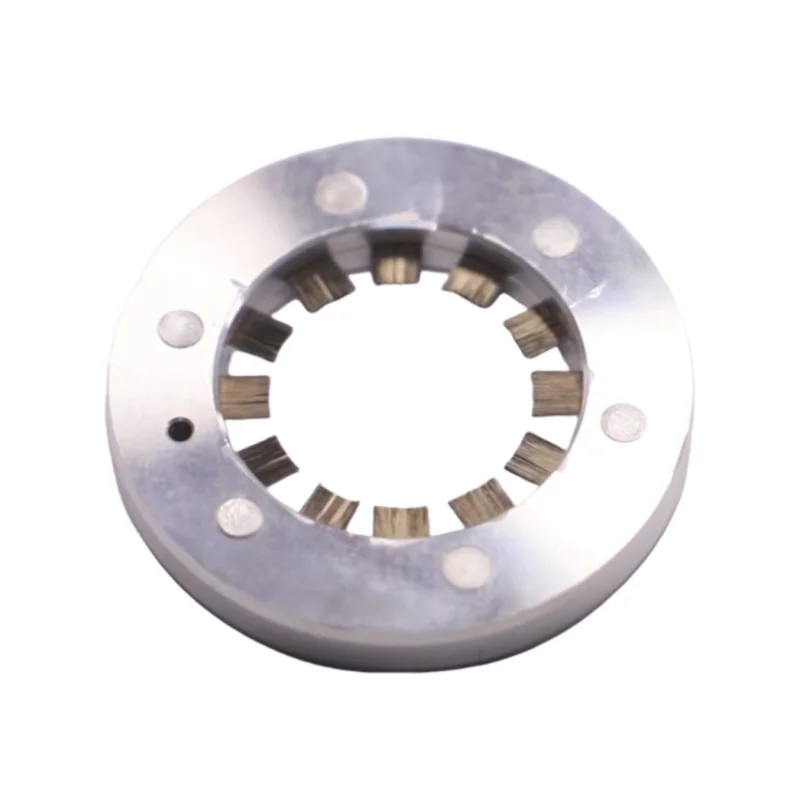

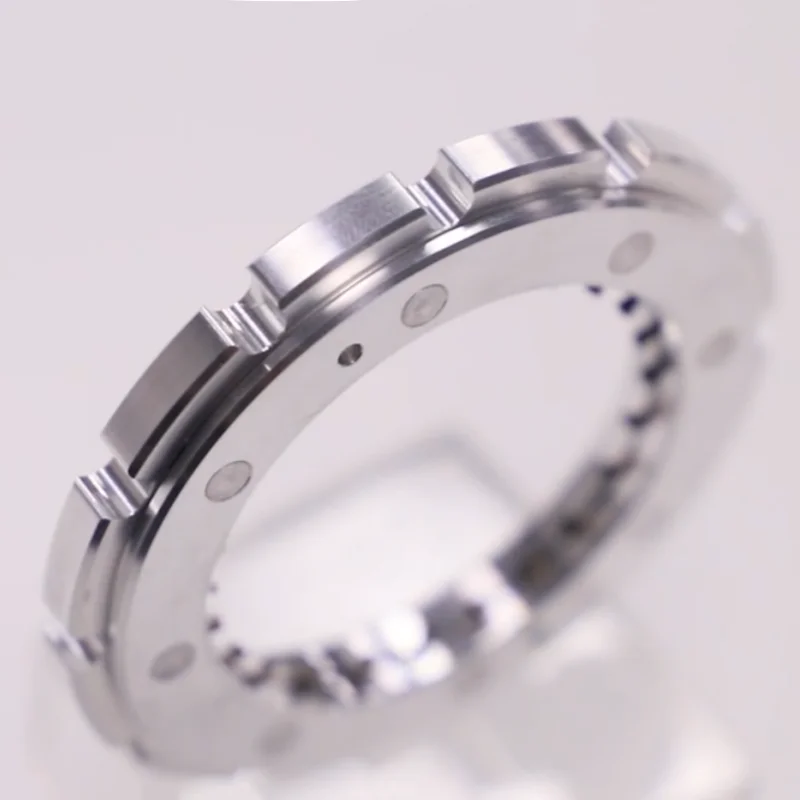

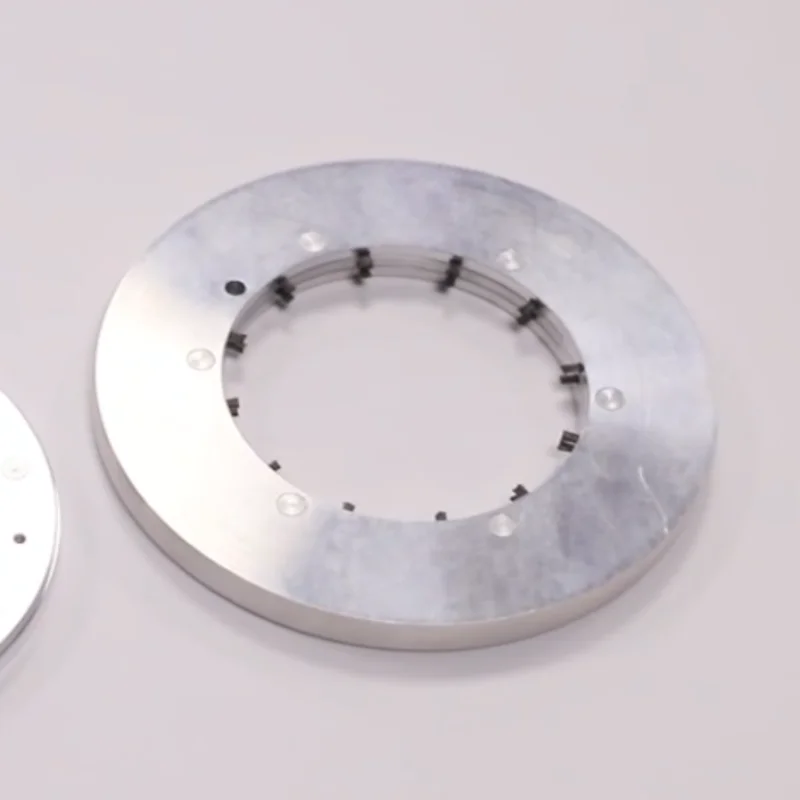

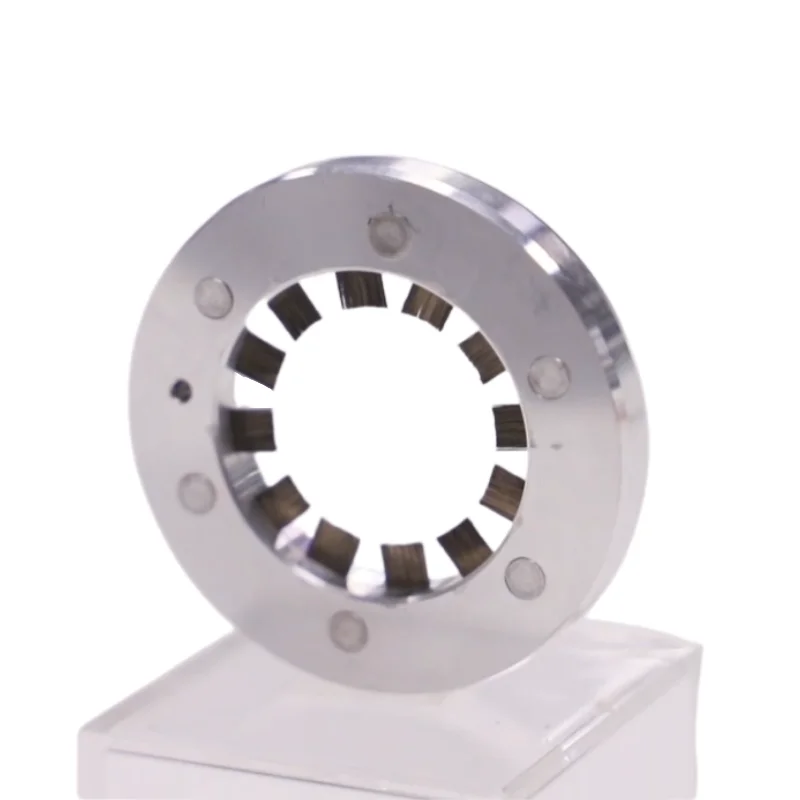

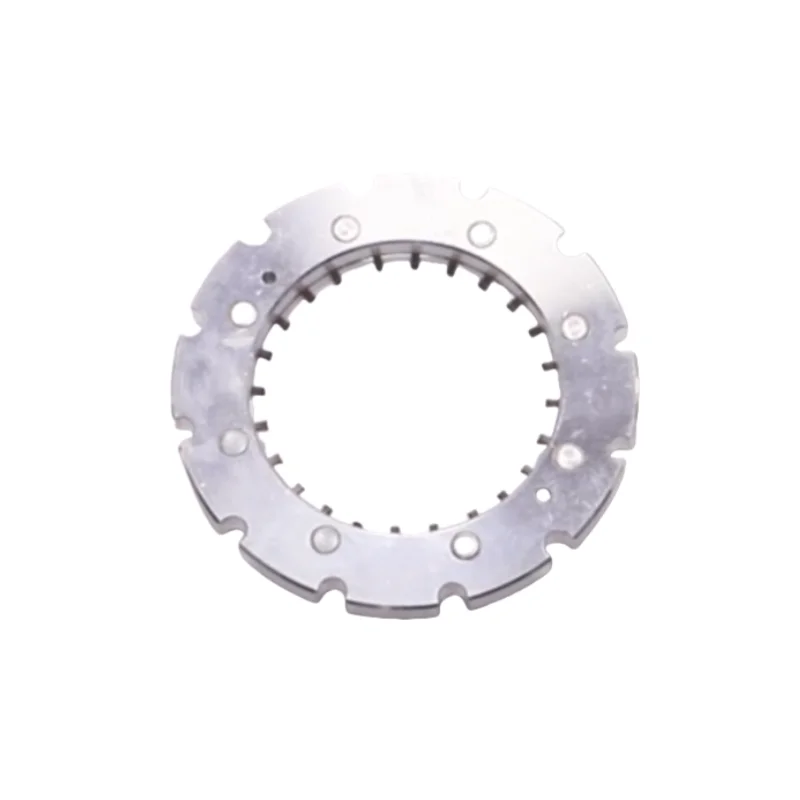

Electrical Bearing Protection Accessories to Improve Motor Reliability Conductive Carbon Fiber Ring

Introducing, the Volsun’s conductive carbon fiber ring, a top-of-the-line electrical bearing protection accessory designed to enhance motor reliability and performance. This innovative product is specially crafted to safeguard your motor's bearings against potential damage from electrical currents, ensuring smooth and efficient operation for years to come.

Made from high-quality carbon fiber material, the Volsun’s conductive ring effectively dissipates stray electrical currents that can cause wear and tear on your motor's bearings. By providing an additional layer of protection, this accessory helps minimize the risk of costly malfunctions and downtime, saving you time and money on maintenance and repairs.

Installing the Volsun’s conductive carbon fiber ring is quick and easy, thanks to its user-friendly design and durable construction. Simply slip the ring over the motor shaft and let it work its magic, keeping your bearings safe and secure during operation. With this reliable accessory in place, you can have peace of mind knowing that your motor is well-protected against electrical damage.

In addition to its exceptional protective capabilities, the Volsun’s conductive carbon fiber ring is also highly durable and long-lasting, ensuring reliable performance in even the most demanding industrial environments. Whether you're dealing with high-speed rotations or heavy loads, this accessory is up to the task, providing continuous protection for your motor's bearings day in and day out.

Don't let electrical currents compromise the reliability of your motor – invest in the Volsun’s conductive carbon fiber ring today and experience the difference it can make. Trust in the Volsun brand for top-quality electrical bearing protection accessories that deliver unparalleled performance and peace of mind. Upgrade your motor's reliability with this innovative accessory and enjoy smooth, trouble-free operation for years to come

Product Overview

Volsun VS-RD Series Shaft Grounding Rings

Description
VS-RD series conductive rings solve the problem of motor shaft electro-corrosion by bypass grounding It is composed of conductive fibers, metal bodies, etc., and is used for electro-corrosion protection of variable frequency motors and their coupled equipment. VS-RD series conductive rings can reduce the induced potential between the bearing and the grounded housing, effectively reduce the damages of electro-corrosion caused by shaft current, protect motor bearings to ensure long-term and stable operation of the motor

Features

* Low resistance

* High temperature resistance

* Durable and wear-resistant

* Unique structure

* Environmentally friendly and non-toxic

* Size can be customized

PRODUCT SPECIFICATIONS

Item	Test Data	Test Standard
Static resistance	＜1Ω	/
Dynamic resistance	≤10Ω	/
Fiber pull-off force	≥100·30s	/
Salt spray test	No damage to fibers	/
Durability test - Water cooling/Oil cooling	＜0.5mm/30Wkm ＜0.2mm/30Wkm	/
High temperature test	See enterprise standards	/
Low temperature test	See enterprise standards	/

Structure

Dimensions

O. D - mm	Matching Shaft Diameter - mm	Height - mm
30	10	≥7
35	17	≥7
38	13	≥7
40	18	≥7
47	25	≥7
50	25	≥7
52	26	≥7
58	39	≥7
60	40	≥7
62	36	≥7
66	41.5	≥7
70	40	≥7
72	43	≥7.5
78	54	≥7.5
85	59	≥7.5
92	70	≥7.5
108	80	≥7.5
128	79.5	≥7.5

Note：The other sizes and packing are available as request
