Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection

About Product

Highlight

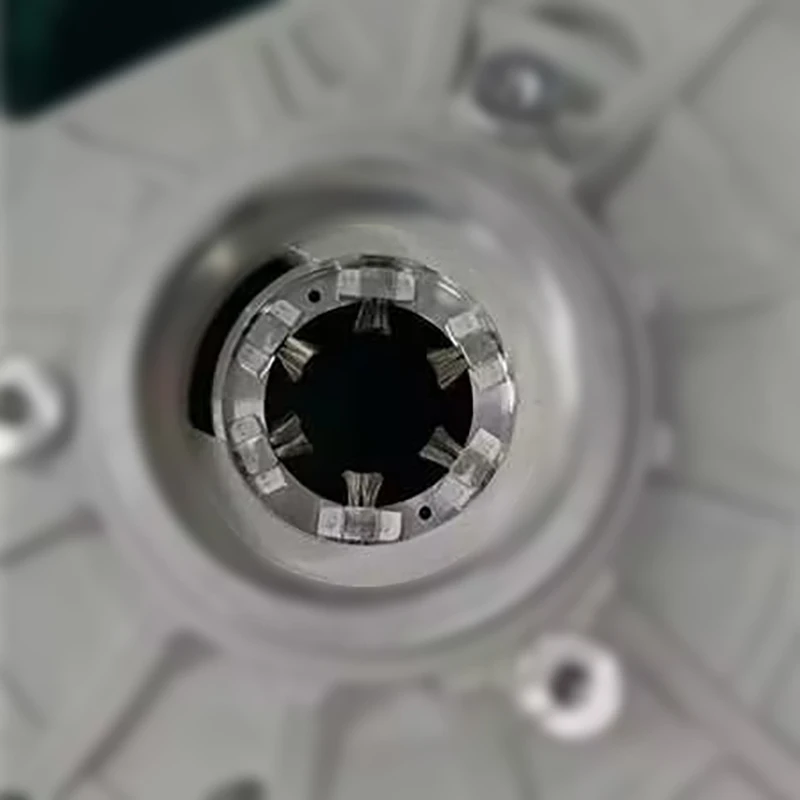

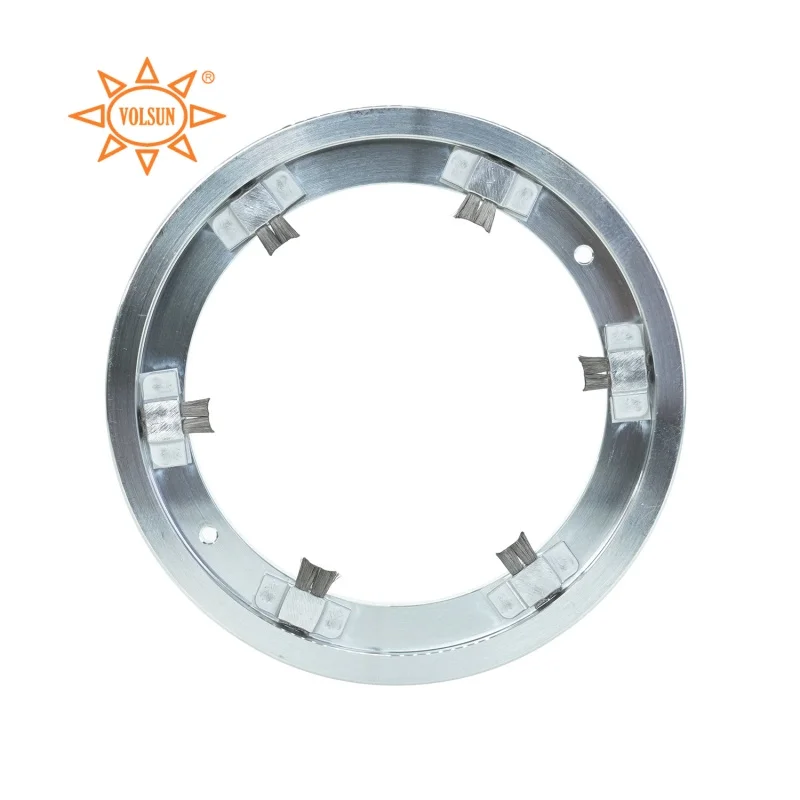

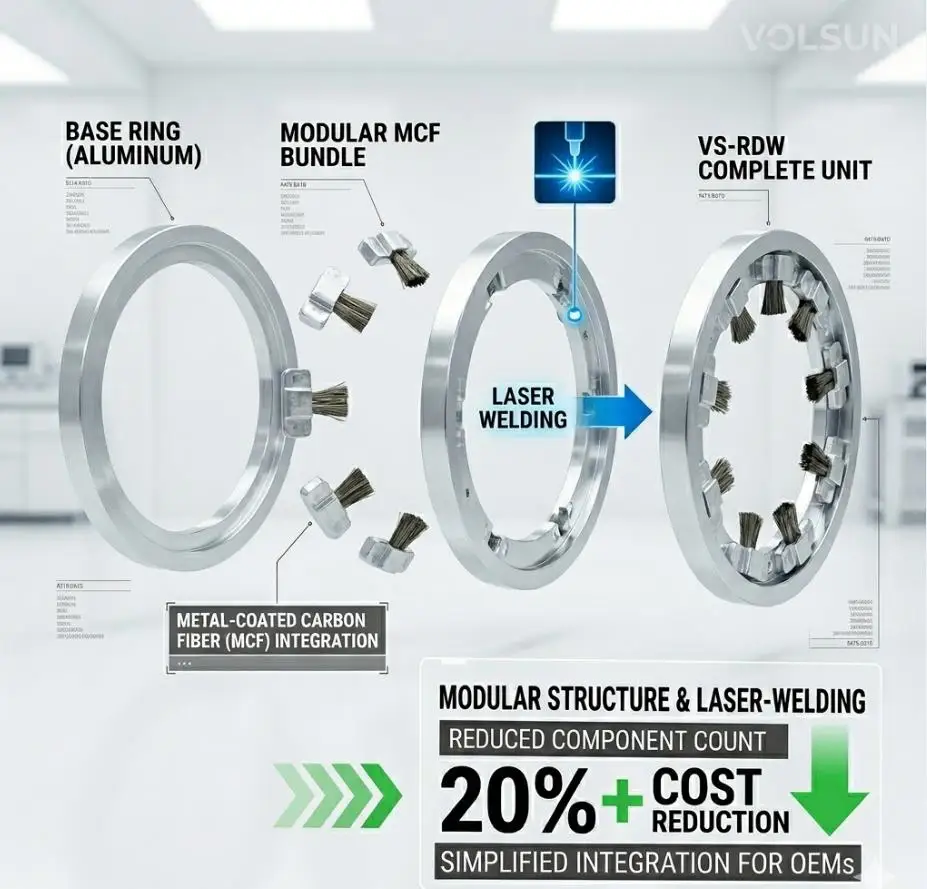

The Volsun shaft grounding ring is precision-engineered from high-performance conductive fibers and a metal ring body, specifically designed to address bearing electrical erosion in variable frequency drive (VFD) motors and coupled equipment. By providing a bypass grounding path, it safely channels shaft currents-generated on the motor shaft-to the ground. This significantly mitigates the risk of electrical erosion, protects motor bearings, and ensures long-term, stable, and reliable motor operation

Protect Electric Motor Bearings: Volsun shaft grounding rings (specifically the VS-RDW series) are high-performance protection devices designed to safeguard motor bearings from electrical corrosion, compatible with VFD systems, supports high-power and high-voltage platforms, with rotational speeds up to 25,000 rpm

Superior Technical Protection Effective Voltage Suppression: They provide a continuous, low-impedance path that diverts harmful high-frequency shaft currents to the ground before they can discharge through the bearings

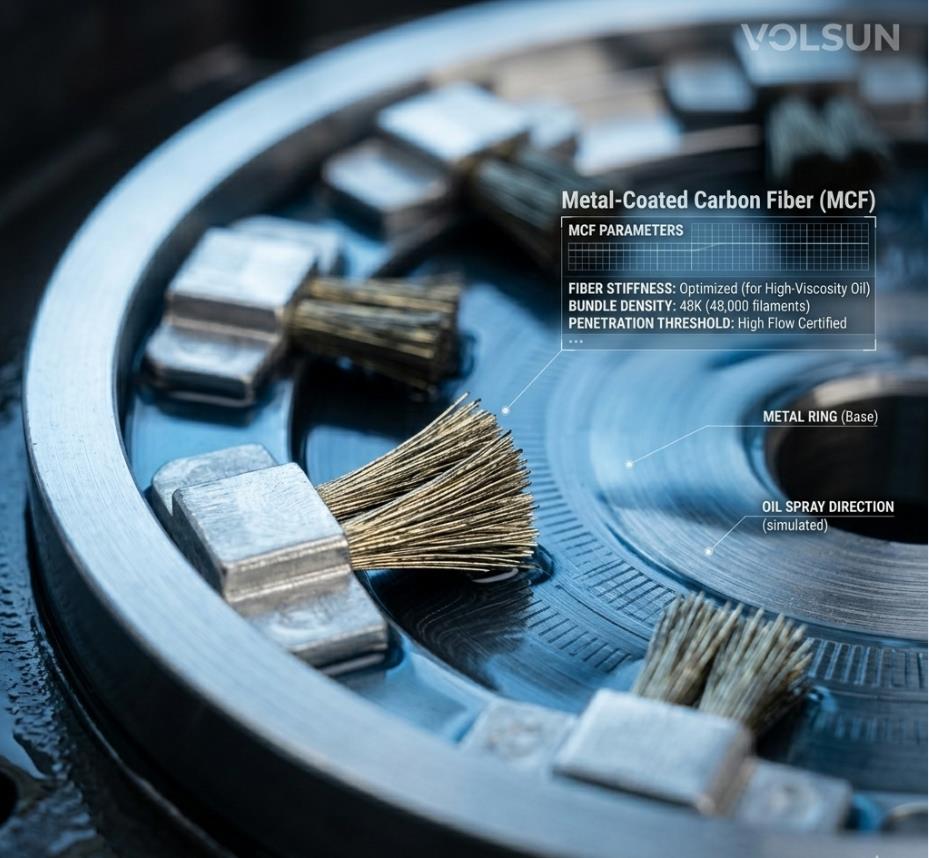

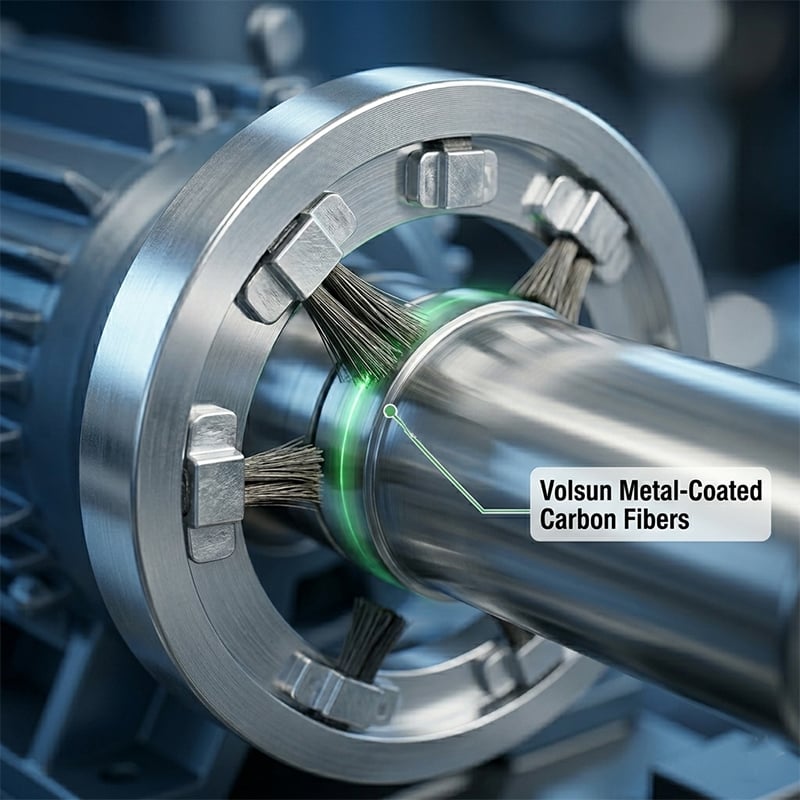

360-Degree Conductive Fiber Technology: Unlike traditional single-point brushes, Volsun uses a multi-contact conductive fiber structure that ensures stable continuous contact even at high rotational speeds

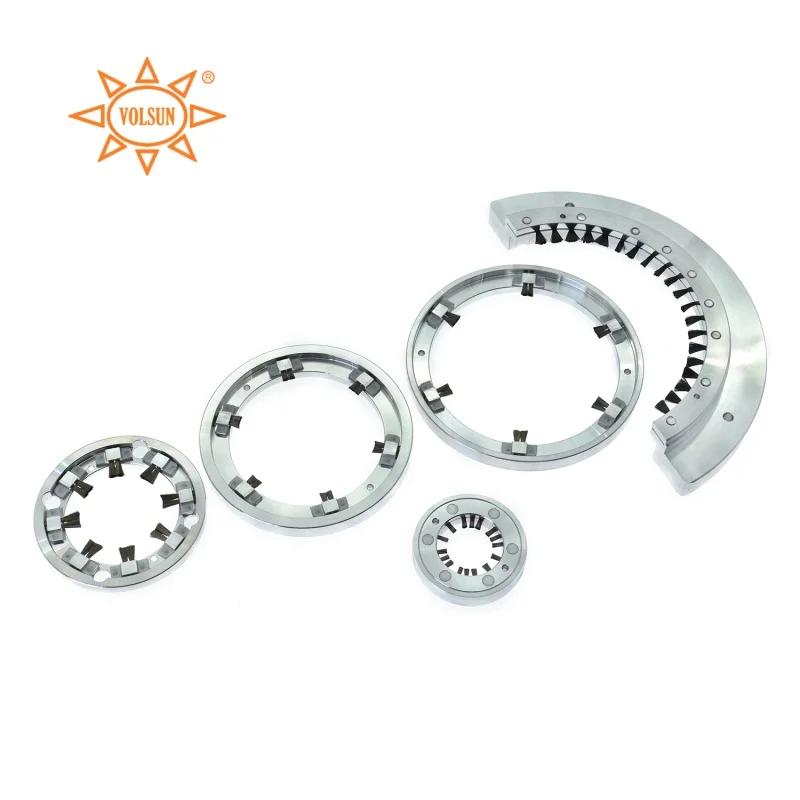

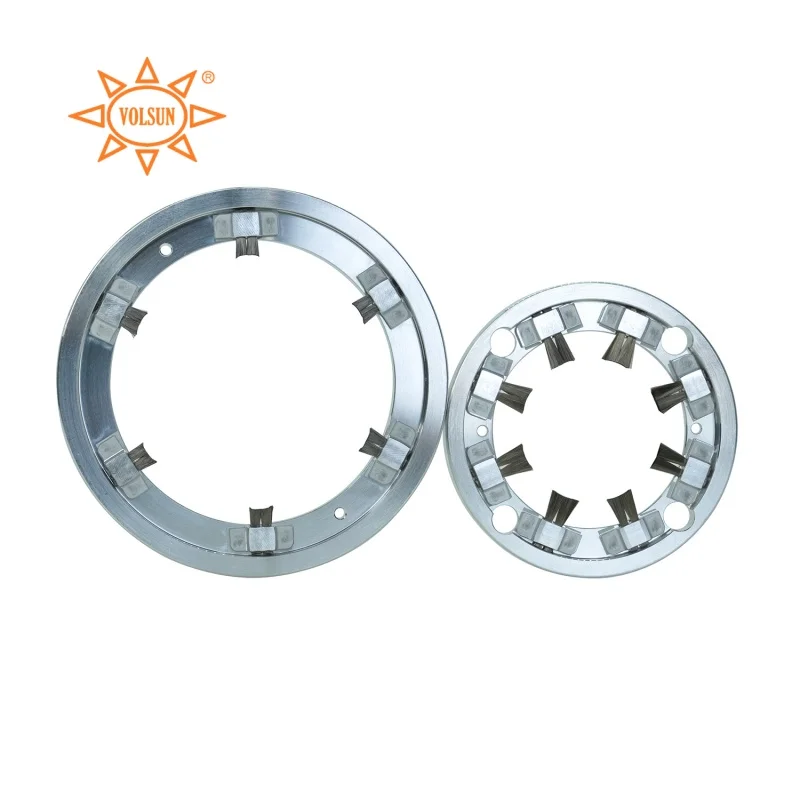

Design and Versatility Customization and Compatibility: They support a wide range of shaft diameters(from 10mm-300mm) and come in various shapes(round, T-shaped, fan-shaped, etc.) to fit specific OEM or retrofit requirements

Harsh Environment Resilience: Operates reliably from -40°C to 200°C. Resistant to grease, ATF, salt spray, etc

Static resistance < 1Ω; provides a stable, low-impedance bypass path for inverter-generated common-mode currents

Validated under rigorous operating conditions; effectively reduces shaft voltage by over 70%



About Us

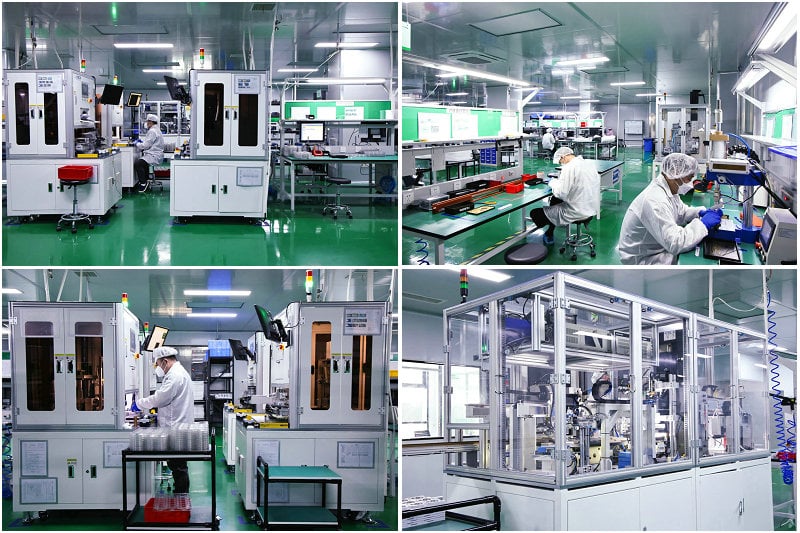

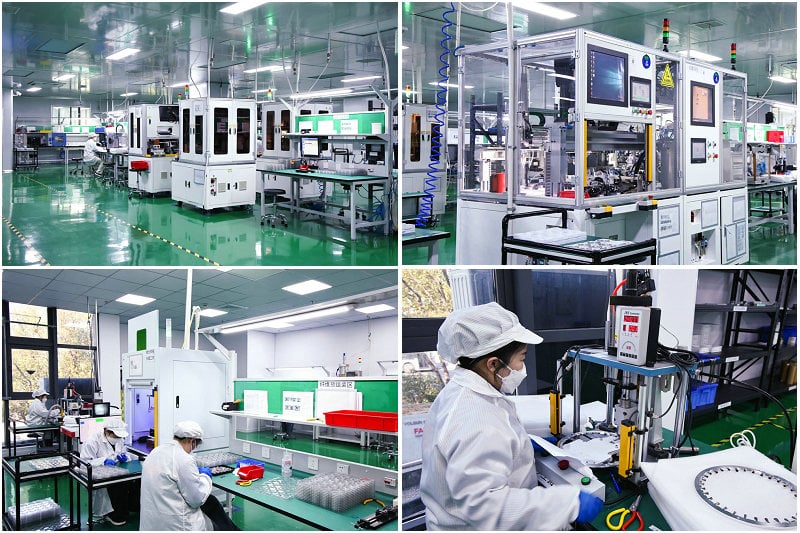

Volsun, founded in 2006, is a high-tech enterprise specializing in the research, development, production, and sales of polymer materials. With two major production bases in Yangzhou and Suzhou covering over 25,000 square meters, we provide a comprehensive range of safety protection solutions, including insulation, sealing, waterproofing, thermal conductivity and electrical conductivity, widely applied across industries such as electricity, telecommunications, automotive, and electronics etc. Driven by innovation, Volsun has established strong industry-academia-research partnerships with leading Chinese universities and holds 97 technology patents, reinforcing our leadership in polymer materials technology. Our core products include cold shrink/heat shrink tubes, fiberglass sleeves, silicone self-fusing tape, silicone overhead line cover, thermal pads, shaft grounding rings, and various insulation products. Volsun is certified under IATF 16949 and ISO 9001 quality management systems, ensuring the highest product standards. As a technology-driven company, guided by our mission to innovate materials for a safer world, we have provided OEM and ODM services to over 6,000 customers in 88 countries. Committed to continuous innovation, we strive to deliver superior protection solutions that enhance the safety and performance of your projects



FAQs

What problem does a shaft grounding ring solve

A shaft grounding ring is designed to reduce electrical discharge through motor bearings by giving stray shaft currents a controlled path to ground, helping prevent premature bearing failure and reducing unexpected downtime

How does a grounding ring improve motor reliability

By providing a continuous path for unwanted electrical energy away from the bearing path, a grounding ring can reduce electrical stress on bearing surfaces and support more stable operation and longer maintenance intervals

What is your standard packaging

All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

What kind of certificates do you have

We have ISO9001: 2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified. We have various rubber compounds approved by UL, ROHS and REACH

Can you provide customized service

Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements

How to check the quality of bulk order

We provide pre-production samples to all customers before mass production if needed. We accept third-party inspection, such as SGS, TUV, INTERT

Volsun presents the Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection, a purpose-built solution engineered to prevent bearing damage from stray currents and electrostatic discharge in modern EV motor systems. Combining decades of polymer material expertise with advanced conductive fibers grounding technology, this shaft grounding ring offers reliable performance, long service life, and easy integration into existing motor assemblies. The design ensures effective shaft grounding, targeted bearing pitting protection, and improved motor reliability in demanding automotive environments.

Product Overview and Key Features

The Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection is a compact, high-performance component that provides low-impedance electrical paths from rotating shafts to chassis ground. Constructed from densely woven conductive fibers grounding materials, the ring minimizes contact resistance while maintaining low wear rates and stable electrical characteristics under continuous rotation. The product addresses shaft grounding and bearing pitting protection in one integrated unit, ensuring that shaft grounding ring functionality and bearing pitting protection mechanisms operate seamlessly to reduce electrical discharge through bearings.

Key features include:

- High-conductivity woven conductive fibers grounding element for efficient shaft grounding ring performance.

- Optimized geometry for consistent contact pressure and minimal shaft wear, which contributes directly to effective bearing pitting protection.

- Robust polymer mounting components engineered by Volsun’s material R&D team to withstand thermal cycling and vibration typical of EV motor environments.

- Low maintenance design that supports long service intervals and simplifies EV motor grounding solutions.

- Compatibility with a wide range of shaft diameters and motor housings, enabling flexible EV motor grounding solutions for different vehicle platforms.

Applications

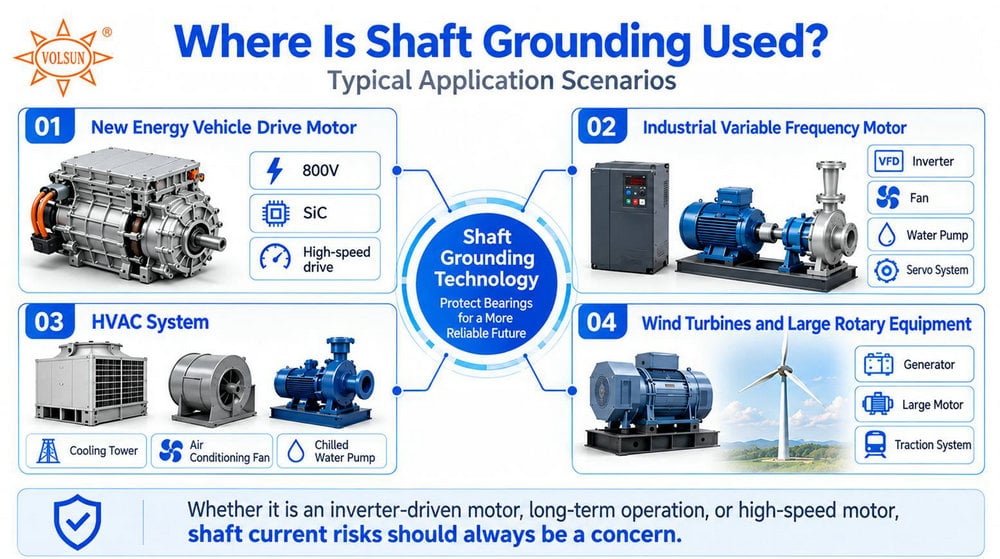

The Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection is tailored for automotive OEMs, EV motor manufacturers, and aftermarket service providers who require effective EV motor grounding solutions. Typical applications include traction motors for battery electric vehicles, hybrid drive units, auxiliary motors, and other rotating electrical machines where bearing pitting protection is critical. The conductive fibers grounding structure is suitable for new motor designs as well as retrofit applications where improved shaft grounding ring performance and bearing pitting protection are needed.

Innovation and Technical Advantages

Volsun’s product leverages proprietary conductive fibers grounding technology developed from years of polymer and composite research. The conductive fibers grounding matrix combines high electrical conductivity with controlled mechanical compliance, enabling reliable contact with shaft surfaces while minimizing abrasive wear. This results in extended service life and consistent grounding performance over millions of revolutions.

Technical advantages:

- Low contact resistance: The conductive fibers grounding element provides a continuous low-impedance path to ground, mitigating shaft-to-bearing discharge events and enhancing bearing pitting protection.

- Enhanced wear characteristics: A carefully engineered fiber weave and polymer support structure reduce friction and abrasion on the shaft surface, offering improved longevity compared to traditional metal brush designs while preserving shaft integrity.

- Thermal and mechanical resilience: Volsun’s advanced polymer housings resist thermal deformation and fatigue under typical EV operating conditions, bolstering the overall durability of the shaft grounding ring and ensuring ongoing bearing pitting protection.

- Simplified installation and retrofit capability: The ring’s form factor and mounting design facilitate quick installation into a variety of motor housings, making it practical for both new builds and service upgrades focused on EV motor grounding solutions.

- Consistent performance across environments: The conductive fibers grounding elements maintain conductivity in humid, dusty, or thermally variable conditions, ensuring dependable shaft grounding ring operation and sustained bearing pitting protection throughout diverse operating scenarios.

Design Details and Materials

At the core of the product lies a densely packed conductive fibers grounding braid engineered to maximize electrical contact area while controlling mechanical engagement with the shaft. The braid is supported by a precision-molded polymer housing that secures the fibers and provides mechanical alignment within the motor assembly. Key material choices reflect Volsun’s industry-leading expertise in polymer and composite solutions, drawing on formulations optimized for insulation, heat resistance, and mechanical stability.

Material highlights:

- Conductive fibers grounding braid: high-conductivity fibers selected for optimal electrical performance and wear resistance to achieve effective shaft grounding ring functionality and deliver reliable bearing pitting protection.

- High-performance polymer housing: engineered for thermal stability, chemical resistance, and vibration tolerance, enabling long-term reliability in EV motor grounding solutions.

- Corrosion-resistant contact interfaces: materials and coatings chosen to resist oxidation and environmental degradation, ensuring ongoing conductivity for the shaft grounding ring and uninterrupted bearing pitting protection.

Performance and Testing

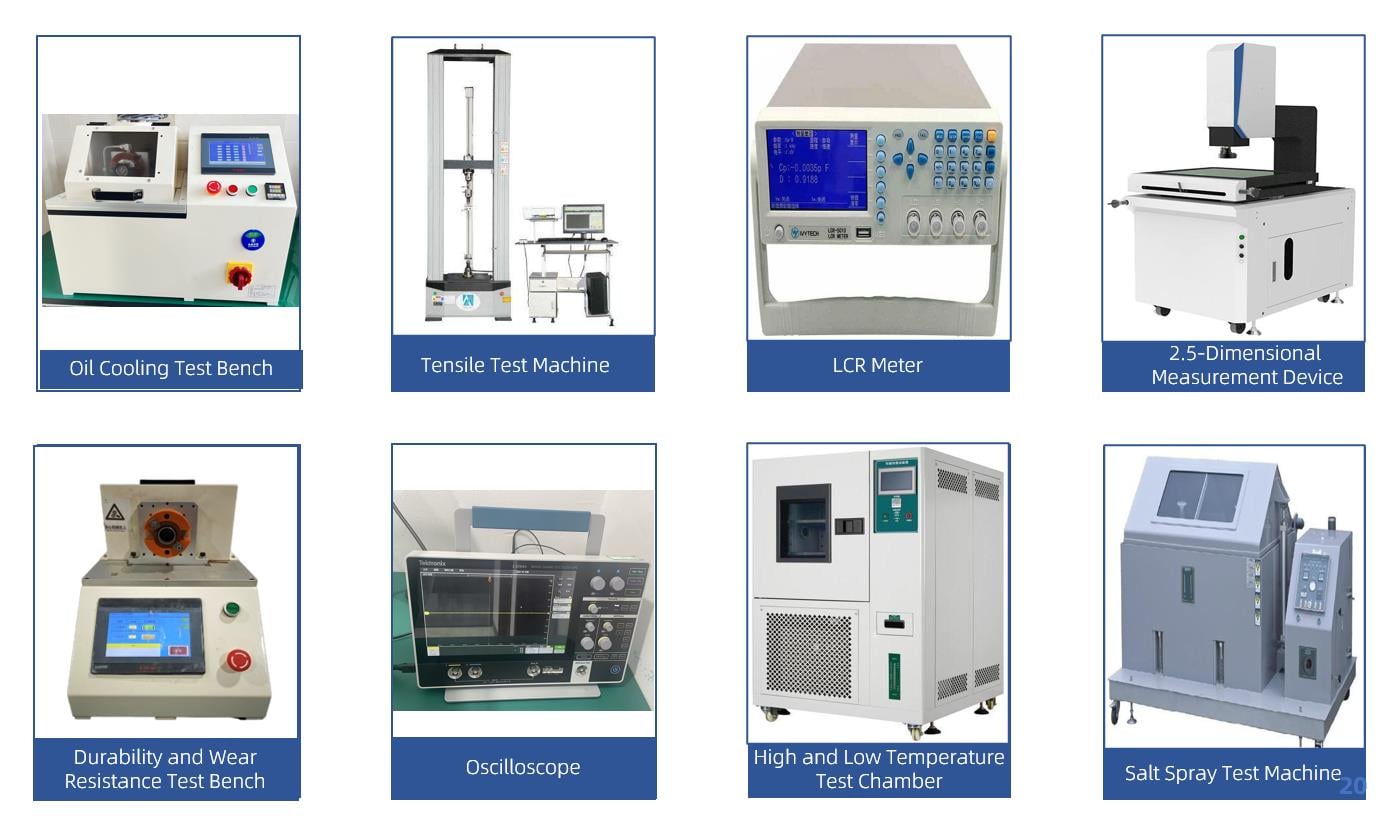

Volsun applies rigorous testing protocols to validate the Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection. Tests include electrical continuity and impedance measurement over simulated lifecycle rotations, mechanical wear and abrasion studies on various shaft surface finishes, thermal cycling to assess polymer stability, and contamination exposure to verify performance in real-world conditions. These validation procedures confirm the product’s ability to provide stable shaft grounding ring operation and effective bearing pitting protection under typical and extreme EV operating scenarios.

Benefits to OEMs and End Users

Integrating Volsun’s Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection provides measurable benefits:

- Reduced bearing failure and extended bearing life due to effective bearing pitting protection.

- Lower warranty costs and improved vehicle uptime through robust EV motor grounding solutions.

- Simplified motor maintenance and easier retrofitting, reducing service time and life-cycle costs.

- Compatibility with established manufacturing processes and ease of integration into diverse motor designs, supporting rapid adoption by OEMs.

- Backed by Volsun’s technical support and decades of polymer material expertise, ensuring reliable supply and application guidance for shaft grounding ring installations and continued bearing pitting protection.

Why Choose Volsun

Founded in 2006, Volsun combines deep polymer R&D, production capabilities, and a strong IP portfolio to deliver high-quality components like the Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection. With IATF 16949 and ISO 9001 certifications, 97 patents, and a global customer base, Volsun is well positioned to support automotive manufacturers with proven EV motor grounding solutions and long-term reliability. Our focus on insulation, thermal management, and conductive fibers grounding innovations ensures that the shaft grounding ring not only protects bearings from pitting but also aligns with broader vehicle safety and performance goals.

The Conductive Fibers Shaft Grounding Ring for Electric Vehicle Motors Bearing Pitting Protection by Volsun is a high-performance, durable solution for preventing bearing damage caused by electrical discharge in EV motors. Combining conductive fibers grounding technology with advanced polymer housings and thorough testing, the product delivers reliable shaft grounding ring performance, effective bearing pitting protection, and straightforward integration for OEMs and service providers seeking robust EV motor grounding solutions
