Cable Accessories Waterproof And Insulation Manufacturer and Factory EPDM Rubber Cold Shrink Tube With Mastic

If you are in need of high-quality cable accessories that are both waterproof and provide insulation, look no further than Volsun. As a leading manufacturer and factory of cable accessories, Volsun offers a variety of products to meet your needs, including the EPDM Rubber Cold Shrink Tube with Mastic.

The EPDM Rubber Cold Shrink Tube with Mastic is a must-have for anyone working with cables that require protection from moisture and other environmental factors. Made from durable EPDM rubber, this tube is designed to provide excellent insulation and ensure the longevity of your cables. The cold shrink technology allows for easy installation without the need for tools, making it a convenient and time-saving solution for any project.

One of the standout features of the EPDM Rubber Cold Shrink Tube with Mastic is its waterproof and weatherproof capabilities. This tube creates a tight seal around the cable, protecting it from water, dust, and other contaminants that can cause damage over time. The addition of mastic further enhances the seal, ensuring that your cables remain safe and secure in even the harshest conditions.

Not only does the EPDM Rubber Cold Shrink Tube with Mastic provide excellent protection for your cables, but it also offers superior insulation properties. This tube helps to prevent electrical leakage and ensures that your cables are safe to use in a variety of applications. Whether you are working with power cables, telecommunications cables, or any other type of wiring, this product is a reliable and effective solution.

At Volsun, we are committed to providing our customers with the highest quality cable accessories on the market. Our products are rigorously tested to meet industry standards and are designed to withstand the toughest conditions. When you choose Volsun, you can trust that you are getting a reliable and durable product that will meet your needs for years to come.

The EPDM Rubber Cold Shrink Tube with Mastic from Volsun is a top-of-the-line cable accessory that offers both waterproofing and insulation capabilities. With its easy installation, durable construction, and superior protection, this product is a must-have for anyone working with cables. Trust Volsun for all of your cable accessory needs and experience the quality and reliability that have made us a leader in the industry

Product Overview

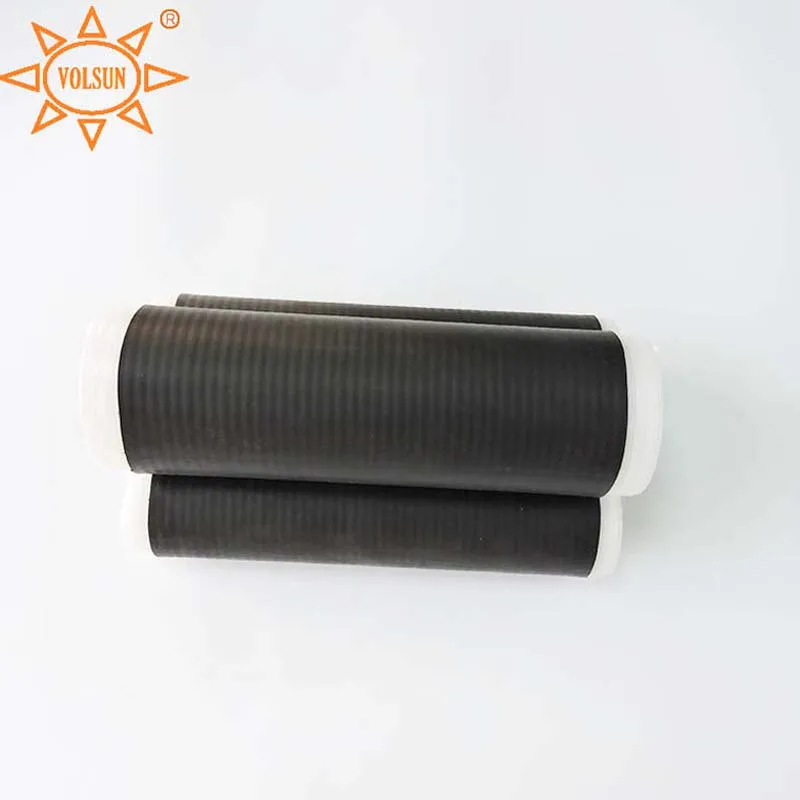

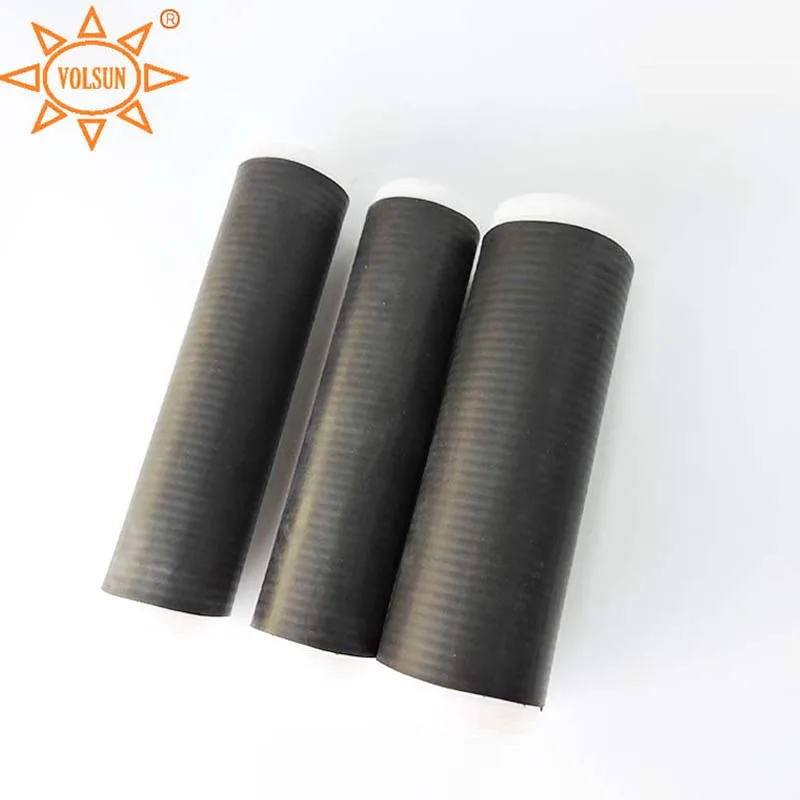

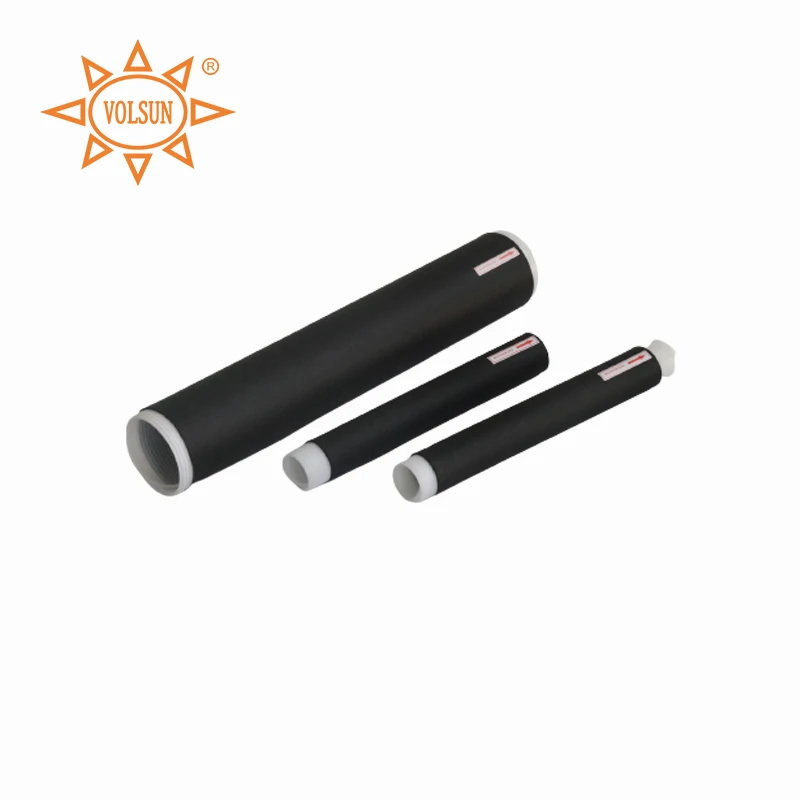

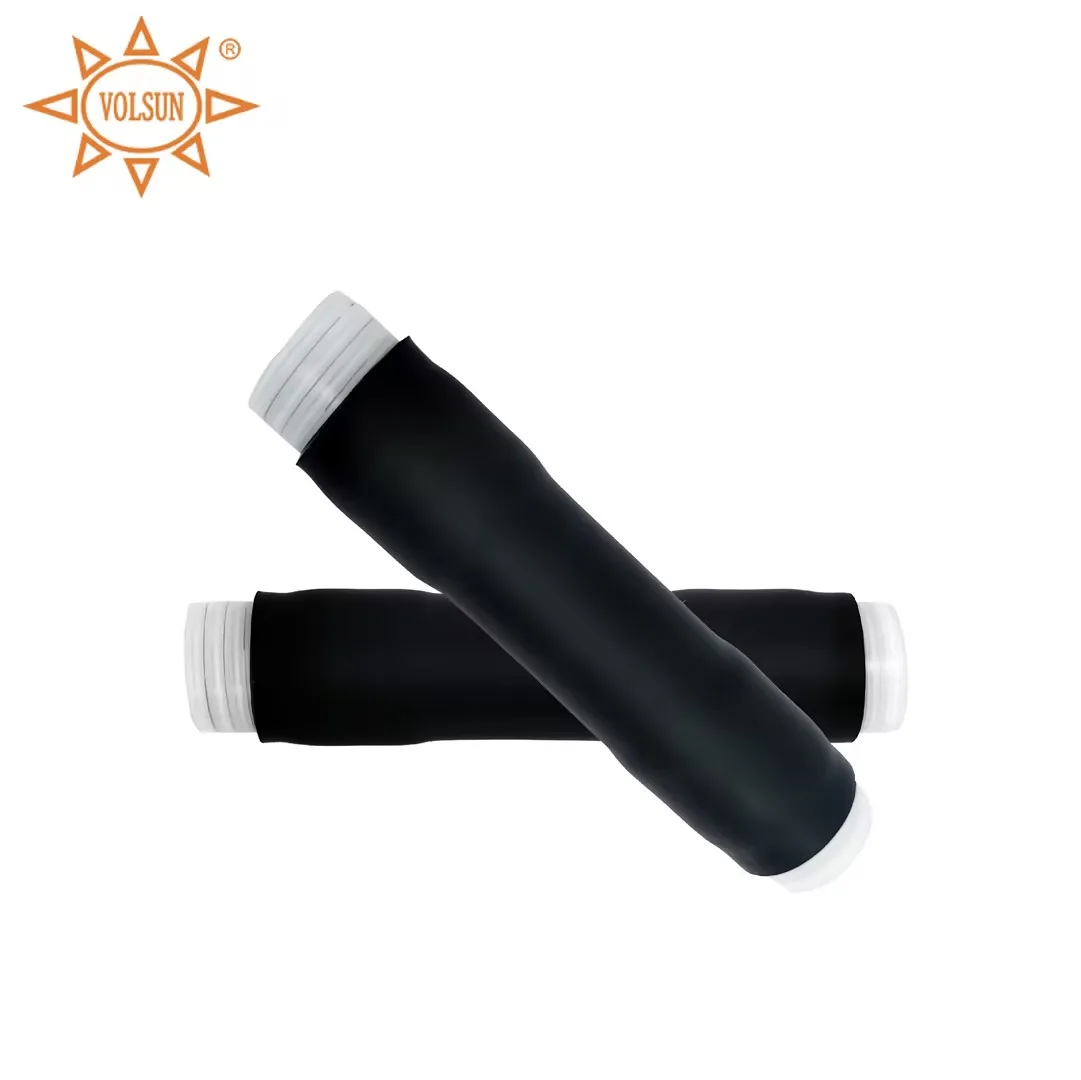

RUBLS-EPDM EPDM rubber cold shrink tube

Description

EPDM cold shrink tubes with Mastic are rubber insulating sleeves that are pre-expanded over a removable support mandrel. In use, simply position and then remove the support mandrel, allowing the tube to utilize its radial force to form a tight wrap, serving to provide waterproofing and moisture-proof sealing. They are primarily used for the insulation and sealing of cable joints

Features:

1. Simple installation, no heat requires;

2. Seals tight, retains its resiliency and pressure even after long time ;

3. UV and Ozone Resistant;

4. Waterproof for outdoor use;

5. Operating temperature: -40~200°C

Contact us for free samples

Technical Performance

Item	Typical data	Test Method
Tensile strength / Mpa	≥8.0	GB/T 528-1998
Elongation at break %	≥700	GB/T 528-1998
Shore A hardness	45±5	GB/T 528-1998
Tear strength / N/MM	≥22	GB/T 529-2008
Volume resistivity	≥10	ASTM D 257-07
Sealing	IP68	/
Ozone resistant	40°C + 50 PPHM + 50 hours	DIN53509-2-2001
UV-resistance	40°C + 1000 Hours	IEC60068-2-5-2010
Low-temperature resistant	-40 ℃	ISO 812
Flame retardant	V-1	UL94

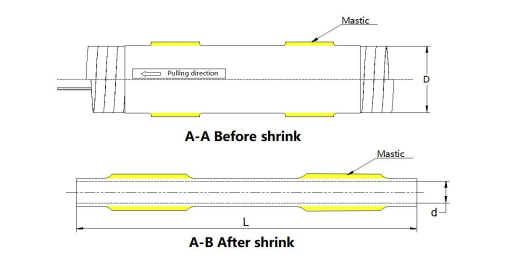

Structure

Dimensions

Type	Expanding D - mm	Recovery - mm			Cover range - mm
VS-25*150	≥25	d	l	11-20
			≥25		≤8	150±3	11-20

Company Profile

Suzhou Volsun Electronics Technology Co., Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 18 years. Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications

Packing & Delivery

Production View

Production View

Delivery

Trade terms	FOB, EXW, CIF, DDU, DDP, CFR
Payment terms	T/T, L/C, Negotiable
Supply capability	1,000,000 pieces per month
Lead time	Usually 2-3 working days
Shipment	Express, Air, Sea
Port	Shanghai, Ningbo, Shenzhen
Sample availability	Yes
Sample time	Usually 1-2 days
Packaging	Normal: Plastic bag & Carton & Pallet Special: Customized packing

Certificate

Abroad Exhibition

Las Vagas AAPEX

Moscow Expo

Hannover Messe

FAQ

Q 1. How long is the payment term
A: We accept T/T 50% deposit and 50% balance against B/L or L/C copy at sight, also accept Western Union, VISA and Paypal

Q 2. What is the normal lead time for product orders
A: The average lead time for prototype/first piece is 7~10 days, if tooling is involved, the lead time for production tooling is 10 days, and the average production time after sample approval is 2-3 weeks

Q 3. What is your standard packaging
A: All goods will be packed in cartons and loaded on pallets. Special packing methods are acceptable when needed

Q 4. Can you tell us the monthly production capacity of your products
A: It depends on the model, we produce more than 1500 tons of rubber materials per month

Q 5. What kind of certificates do you have
A1: We have ISO9001:2015, IATF16949:2016, ISO14001:2015, ISO45001:2018 certified
A2: We have various rubber compounds approved by UL, ROHS and REACH

Q6: How to check the quality of bulk order
A1: We provide pre-production samples to all customers before mass production if needed
A3: We accept third-party inspection, such as SGS, TUV, INTERTEK, BV, etc

Q 9: Can you provide customized service
A: Yes, we accept customization and can produce products in different sizes, packaging, colors according to requirements.
